MPSlammer

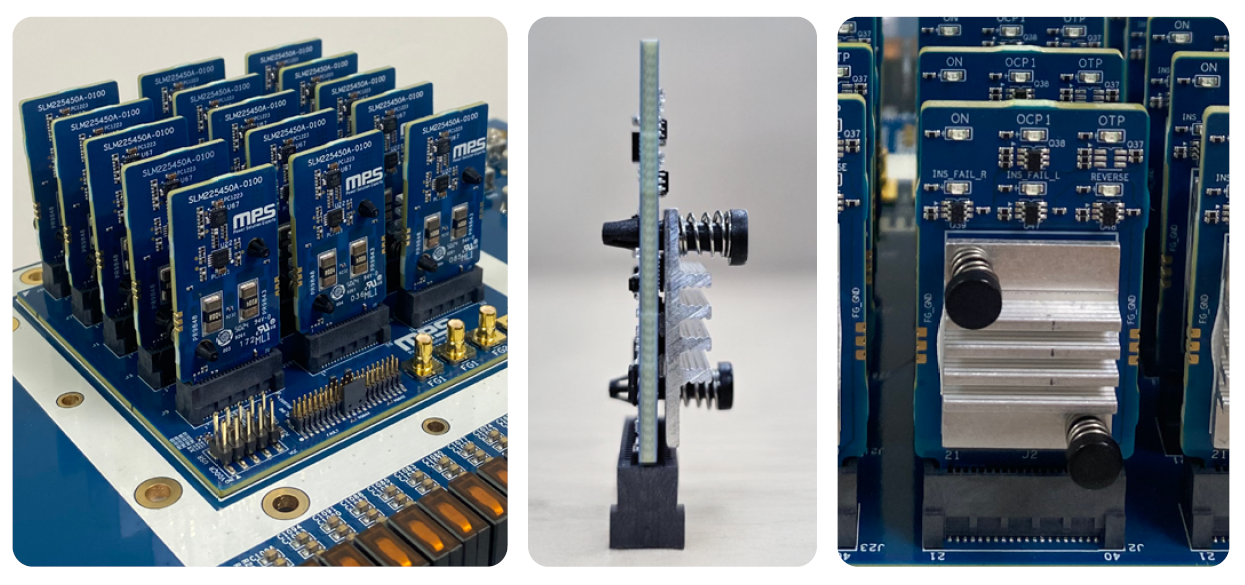

MPSlammer: Load Transient Tool
The standard MPSlammer is designed to be an easy-to-use, cost-effective method to evaluate MPS power solutions in customer designs.

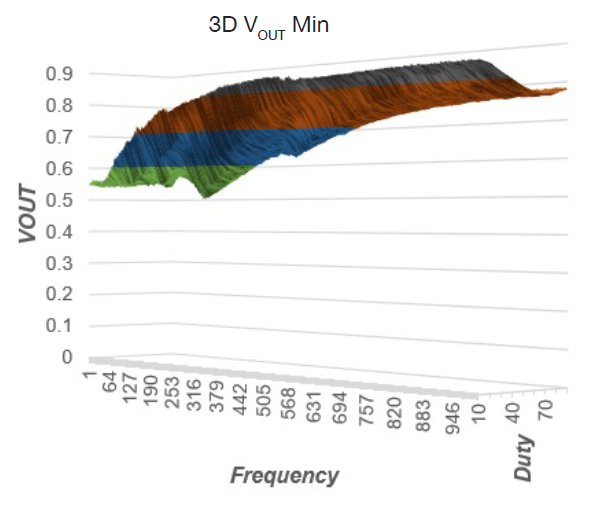

MPSlammer 3D Transient Plot Example
Features
- 100A Peak Current (AC Only)
- Minimum Rise/Fall Time: 130ns
- Max di/dt: 769A/μs
- Stackable
- Reuseable
- Reverse Insertion Protection
- Bad Insertion Protection
- Over-Temperature Protection (OTP)
- Over-Current Protection (OCP)
- MPS GUI
- Auto-Test Mode: Sweep Load Frequency and Load Duty Cycle
- Automatic 3D Transient Test Plots
