Zynq UltraScale+ MPSOC Discrete PMIC Power Solution
This is a power solution for AMD Xilinx Zynq UltraScale+ MPSoC’s XCZU3EG using discrete PMICs and LDOs. This solution meets the tight regulation of each rail in a small footprint.
Block diagram

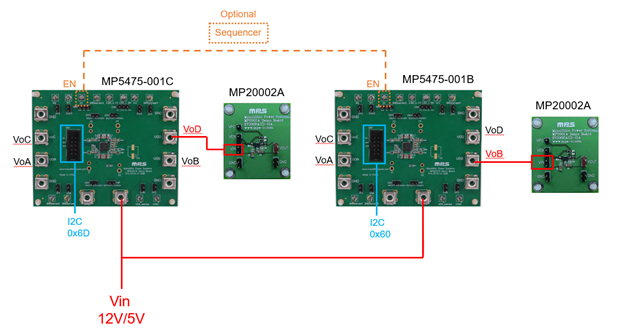

EVB Connections
MPS Products
| Part Number | Quantity | Description |
| MP5475-001B | 1 | External FB resistors, VFB = 0.6V, Sequence BUCK A, BUCK C-> BUCK B-> BUCK D |
| MP5475-001C | 1 | External FB resistors, VFB = 0.6V, Sequence BUCK A, BUCK B-> BUCK C, BUCK D |
| MP2002A | 2 | Low Input Voltage, 500mA Linear Regulator |
