Agilex 3 Reference Design

REFERENCE DESIGN

Design Files:

For more information on reference designs

Response within 2 business days

Agilex part numbers

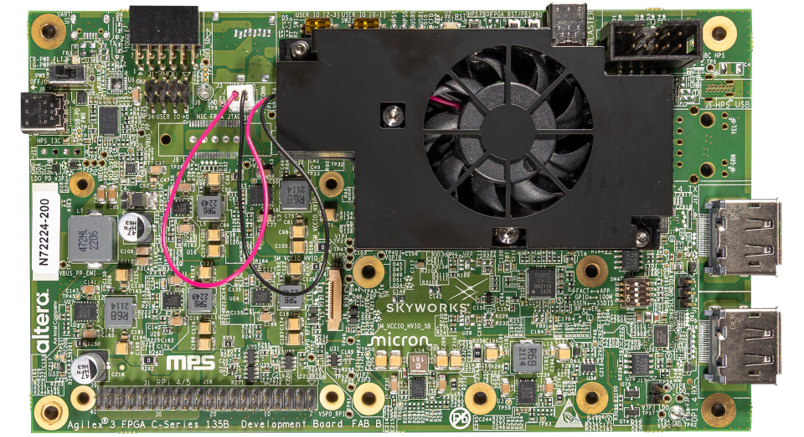

Agilex 3 FPGA C-Series Development Kit

Part Number	Quantity	Description
MPQ4371-8000	3	36V, 6A to 11A, Low-EMI, Synchronous Step-Down Converter with ZDP^TM, AEC-Q100 Qualified
MP5036A	1	5V, 0.4A to 5A Current Limit Switch with 5.75V Over-Voltage Clamp
MPQ2287-0016	1	6V, 14A, Configurable, High-Frequency, Synchronous Buck Converter with ZDP^TM, AEC-Q100 Qualified
MPQ4324-2001	3	36V, 0.5A to 4A Peak, Ultra-Compact, Low-I_Q, Synchronous Step-Down Converter, AEC-Q100 Qualified
