EV188XX-XXX-SE-00A

EV188XX-XXX-SE-00A

3kV_RMS, Isolated, Dual-Channel Gate Driver Evaluation Board

Datasheet

详情

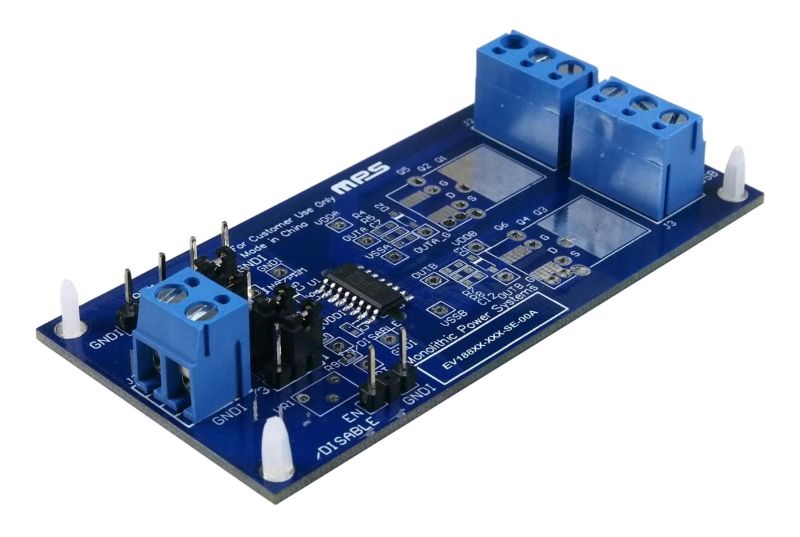

The EV188XX-XXX-SE-00A is an evaluation board designed to demonstrate the capabilities of the MP188xx family, a dual-channel, isolated gate driver solution for driving power switching devices with a short propagation delay and minimal pulse-width distortion.

By utilizing MPS’s proprietary, capacitive-based isolation technology, the SOIC narrow-body (NB) package option can provide up to 3kV_RMS of withstand voltage (per UL 1577).

The MP188xx family can also provide a common-mode transient immunity (CMTI) rating exceeding 100kV/µs between the input side and output driver. With these advanced features, the driver operates at high efficiency, high power density, and with robustness across a wide variety of automotive power applications.

It is recommended to read the datasheet of the MP18831, MP18851, and MP18871 prior to making any changes to the EV188XX-XXX-SE-00A.

评估所用产品

MP18831

隔离式、双输入控制、高/低端半桥栅极驱动器

MP18871

隔离式PWM 输入控制高/低边半桥栅极驱动器

MP18851

隔离式、双输入控制、独立双通道栅极驱动器

产品特性和优势

Up to 5kV_RMSInput to Output Isolation (SOIC-16 WB Package)
1500V_DC Functional Isolation between Two Secondary-Side Drivers (SOIC-16 NB and SOIC-16 WB Packages)
700V_DC Functional Isolation between Two Secondary-Side Drivers (LGA-13 Package)
Common-Mode Transient Immunity (CMTI) >100kV/µs
2.8V to 5.5V Input VDDI Voltage (V_DDI) Range to Interface with TTL and CMOS-Compatible Inputs
Up to 30V Output Drive Supply with Several Under-Voltage Lockout (UVLO) Options
4A Source, 4A Sink Peak Current Output
50ns Typical Propagation Delay
Overlap Protection and Configurable Dead-Time (DT) Control
-40°C to +125°C Operating Temperature Range
UL 1577 Certified:
- SOIC-16 NB: 3kV_RMS Isolation for 60s
- SOIC-16 WB: 5kV_RMS Isolation for 60s
- LGA-13: 2.5kV_RMS Isolation for 60s
DIN EN IEC 60747-17 (VDE 0884-17): 2021-10 Certified:
- SOIC-16 NB: 4242V_PK Isolation
- SOIC-16 WB: 6000V_PK Isolation
- LGA-13: 3535V_PK Isolation
CQC Certification per GB 4943.1-2011
Available in SOIC-16 NB, SOIC-16 WB, and LGA-13 (5mmx5mm) Packages
