100W, USB PD Sourcing Ports Supporting Firmware Update and Advanced PDP Management for Automotive Evaluation Board

详情

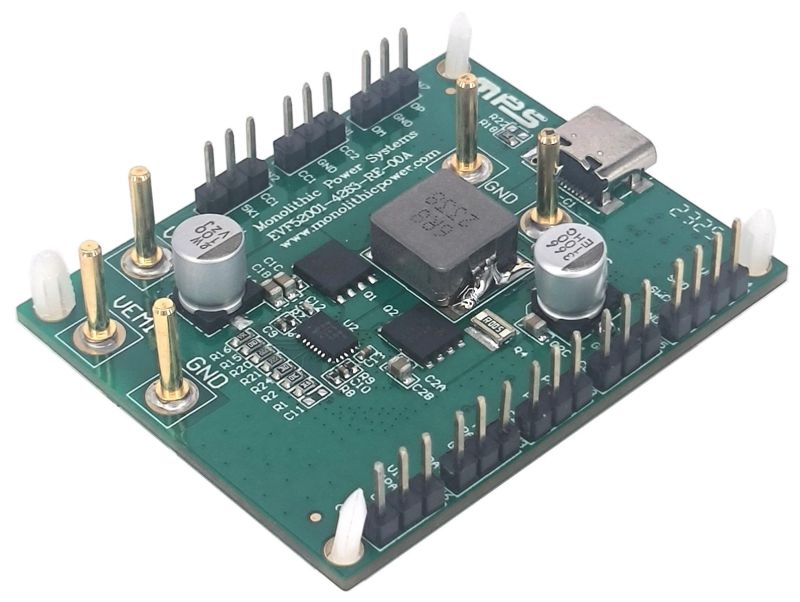

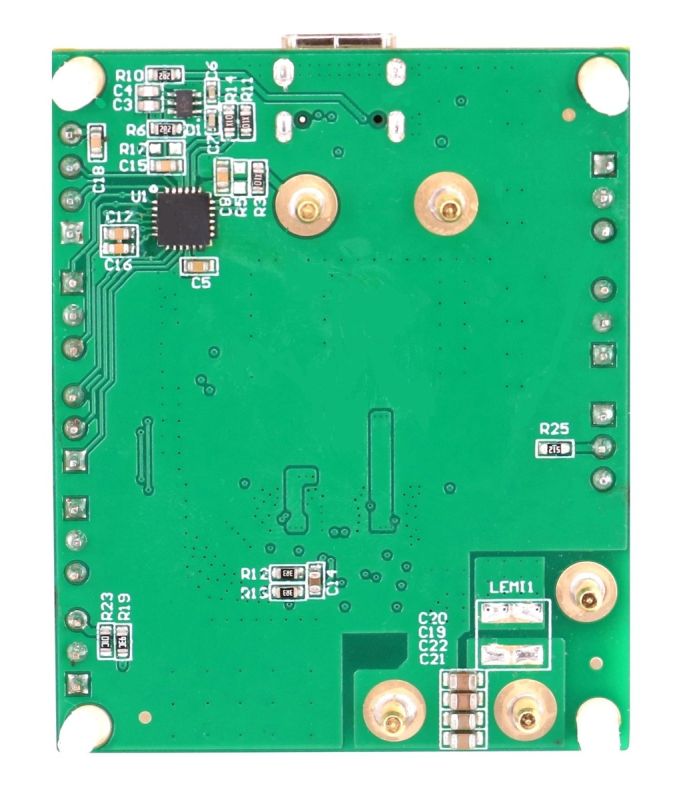

The EVF52001-4263-RE-00A is designed for 100W USB power delivery (PD) applications. It is designed to demonstrate the capabilities of MPS’s automotive USB Type-C PD solution using the MPF52001-AEC2 and MPQ4263-AEC1.

The MPF52001-AEC2 is a highly integrated USB PD controller for sourcing ports. It integrates a 32-bit ARM Cortex-M0 microcontroller (MCU), up to 36MHz operating frequency, USB Type-C port controller, and legacy charging protocol management. A firmware update feature is supported via the configuration channel (CC) lines.

The MPQ4263-AEC1 is a buck-boost converter with two low-side MOSFETs (LS-FETs). The device can deliver up to 100W of peak output power (P_OUT) at a certain input supply range with excellent efficiency.

It is recommended to read the datasheets for the MPF52001-AEC2 and MPQ4263-AEC1 prior to making any changes to the EVF52001-4263-RE-00A.

评估所用产品

产品特性和优势

3.3V to 21V Bus Voltage (V_BUS) Range in Standard Power Range (SPR) Mode with Discharge Function
Supports Up to 48V V_BUS in Extended Power Range (EPR) Mode with External V_BUS Divider Resistor
4.6V to 5.5V Input Voltage (V_IN) Supply Range
150µA Low Deep-Sleep Supply Current (I_DSLP) Mode in Detached State
USB Power Delivery (PD) Controller for Source Port:
- Compliant with USB PD 3.1 with PPS, USB Type-C 2.1, and TCPC 2.0 Supporting Firmware Update
- Passed USB PD3.1 Certification Test with PPS (TID: 8467)
- Supports USB PD Alternate Mode for Display Port
- Integrated V_CONN Power Switch and Over-Current Protection (OCP)
- Load-Shedding Function at High Temperatures or Low Battery Voltage
Other Charging Protocols:
- Supports Universal Fast Charging Standard (UFCS_
- Supports Qualcomm Quick Charge 3/4/4+
- Legacy Charging Protocol Supports BC 1.2, Apple 3A Divider Mode, and Huawei Fast Charge Protocol (FCP)/Super Charge Protocol (SCP)

32-Bit ARM Cortex-M0 Microcontroller:

Integrated 12MHz and 8kHz RC Oscillator
128kB Flash with ECC, 12kB SRAM, and 4kB ROM
Three 16-Bit Timers with Pulse-Width Modulation (PWM) Function
12-Bit Analog-to-Digital Converter
Watchdog Timer (WDT)
UART and Serial Wire Debug (SWD)
Two I²C Initiator/Target Interfaces

Protections:

High-Voltage CCx/DP/DM Input/Output (I/O) and Short-to-Battery/VBUS/GND Protection
Thermal Shutdown Protection

Available in a QFN-24 (4mmx4mm) Package

Available in AEC-Q100 Grade 2

正在供货产品型号

EVF52001-4263-RE-00A

直接从MPS购买

标准定价

数量单价
1

¥761.25 /片

有货

Arrives 3-4 business days.
Shipping only $5 per order.
