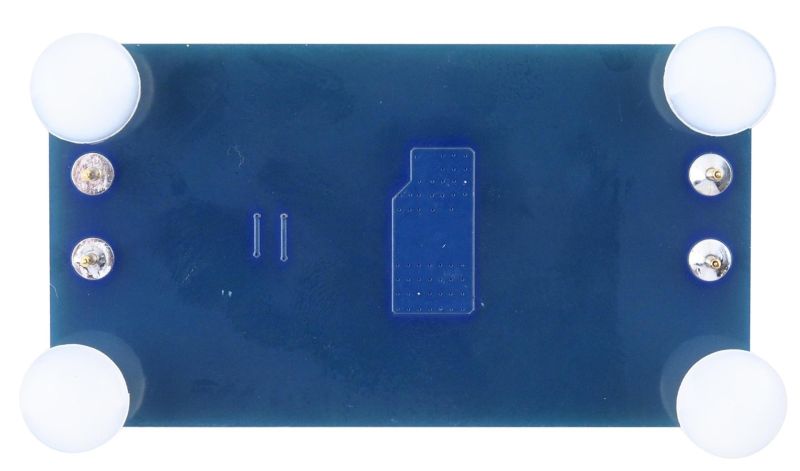

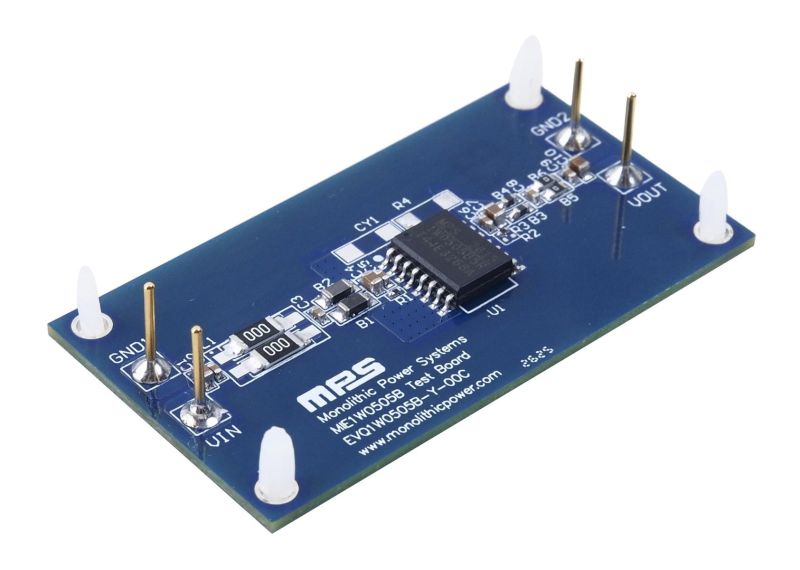

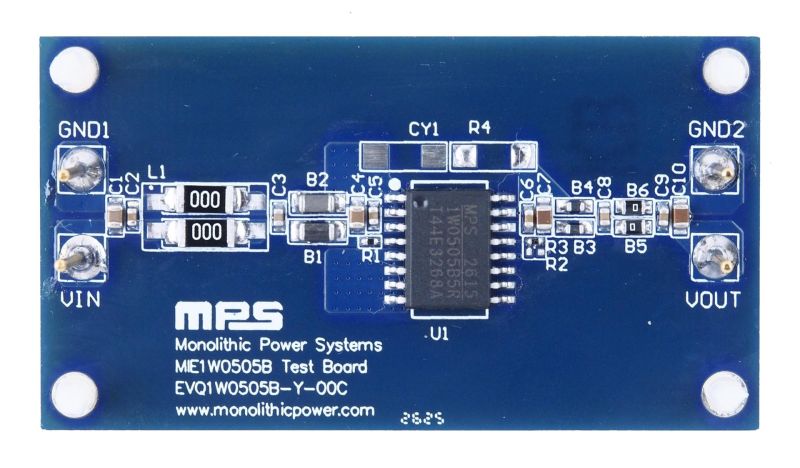

The EVQ1W0505B-Y-00C is an evaluation board designed to demonstrate the capabilities of the MIE1W0505BGY-5R-AEC1, an isolated, regulated DC/DC module. The device can support 3V to 5.5V input voltage (V_IN) applications. It has excellent load regulation, line regulation, and supports up to 1W of output power (P_OUT).

The MIE1W0505BGY-5R-AEC1 uses capacitive isolation technology for the feedback (FB) block, which can regulate the output voltage (V_OUT) without a traditional optocoupler and a precision-configurable reference IC. The module is a small solution that provides highly reliable operation compared to traditional isolation power modules.

The MIE1W0505BGY-5R-AEC1 features continuous short-circuit protection (SCP) and over-temperature protection (OTP). It is available in a small SOIC-16 wide body (WB) package, and is AEC-Q100 qualified.

It is recommended to read the datasheet for the MIE1W0505BGY-5R-AEC1 prior to making any changes to the EVQ1W0505B-Y-00C.
