The EVQ2176A-LPT-6003-00A is an evaluation board designed to demonstrate the capabilities of the MPQ2176A-6003-AEC1, a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs.

The MPQ2176A-6003-AEC1 achieves up to 6A of output current (I_OUT) across a 2.4V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. By using V_IN feed-forward, the MPQ2176A-6003-AEC1 maintains a nearly constant switching frequency (f_SW) across the entire input and load ranges.

Forced continuous conduction mode (FCCM) offers a stable frequency and a lower V_OUT ripple.

An open-drain power good (PG) signal indicates the nominal voltage after the soft-start (SS) time (t_SS) elapses. If the feedback voltage (V_FB) is within 96% to 105% of the reference voltage (V_REF), PG is pulled high by the external voltage source. If V_FB exceeds 112% or drops below 90% of V_REF, the PG voltage (V_PG) is pulled to GND to indicate an output failure.

Fault protections include cycle-by-cycle current limiting, input and output over-voltage protection (OVP), and thermal shutdown.

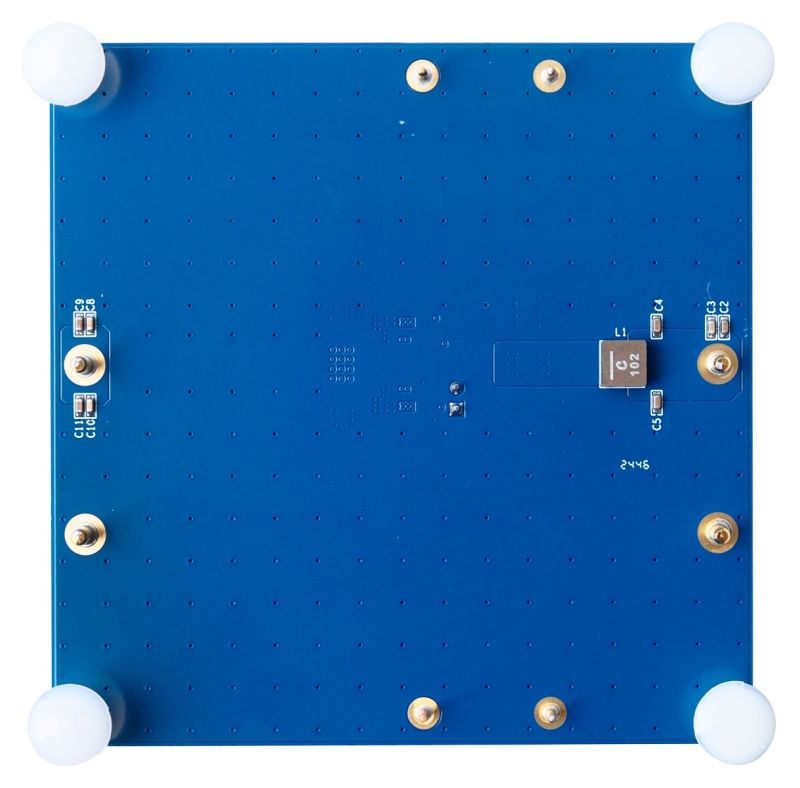

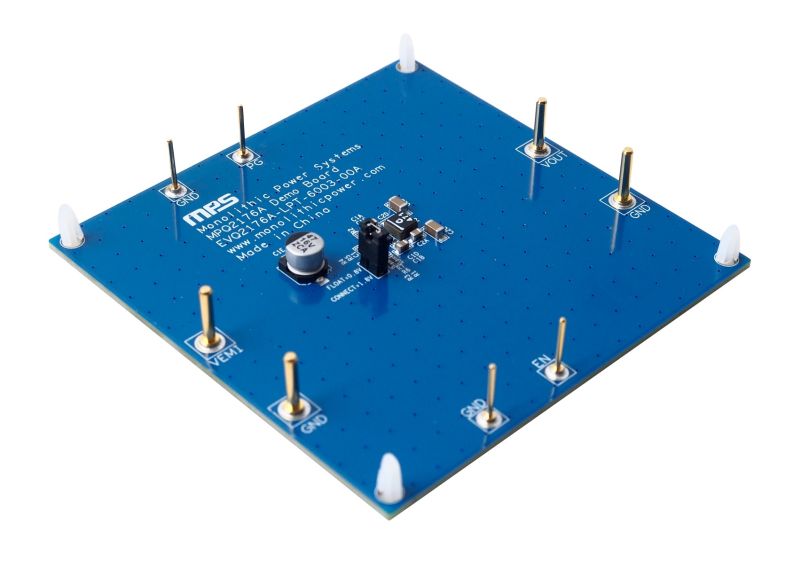

The EVQ2176A-LPT-6003-00A is a fully assembled and tested evaluation board. The MPQ2176A-6003 is available in a small TLGA-13 (2mmx2.5mm) package, and is AEC-Q100 qualified.
