mEZDPD1620AS

新版本上线

mEZDPD1620AS continues to be in production for existing customers. Please consider this alternative for new designs:

MPM3695GPJ-20

3V 至 16V 输入、25A连续电流电源模块

Features & Benefits

最低3V 的宽输入电压 (V_IN) 范围

3V 至 16V V_IN，带外部 V_CC
4V 至 16V V_IN，带内部 V_CC

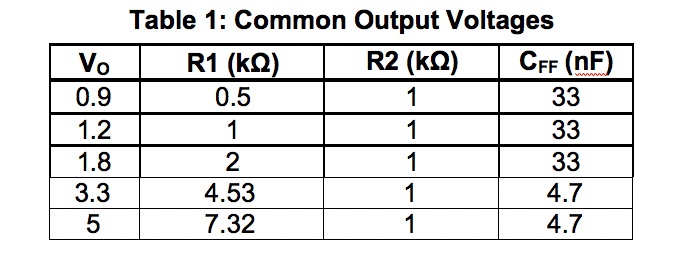

0.5V 至 5.5V 输出电压 (V_OUT) 范围
高达 25A 的连续输出电流 (I_OUT)

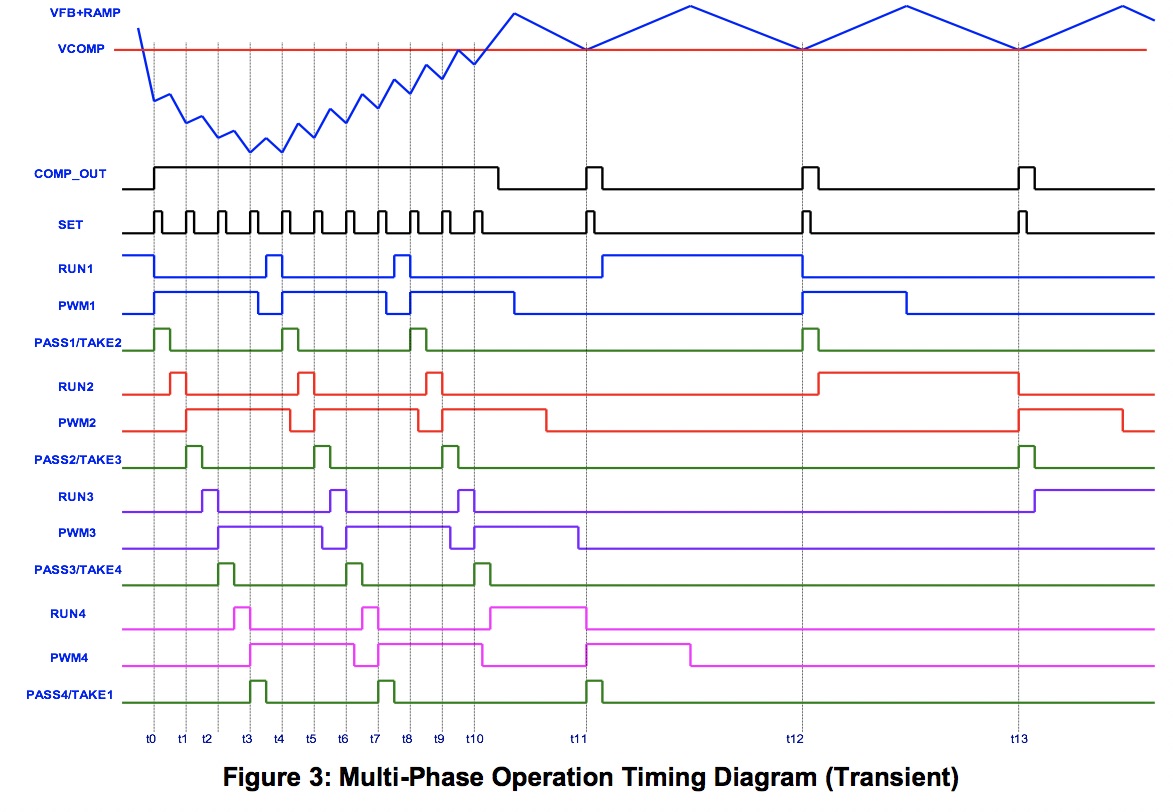

适用于多相操作的自动交错功能
通过自适应多相恒定导通时间 (MCOT) 控制进行自动补偿，实现超快速瞬态响应
±1% 参考电压精度（-40°C 至 +125°C）
真实的输出电压（ V_OUT）远端采样功能
V_IN、V_OUT、I_OUT、温度和故障遥测回读
通过数字接口可配置以下参数：

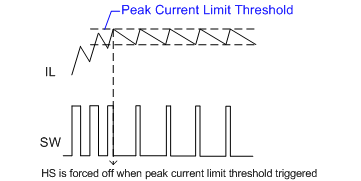

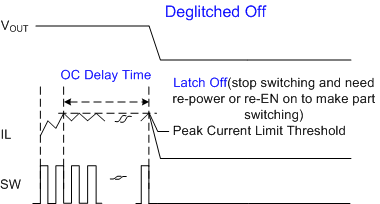

电流限制

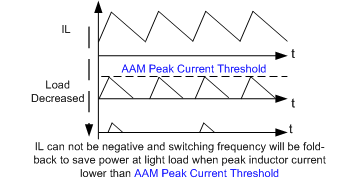

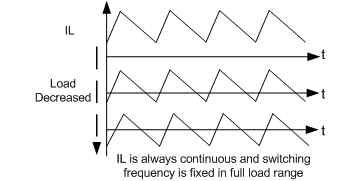

选择跳频模式 (PSM) 或连续导通模式 (CCM)

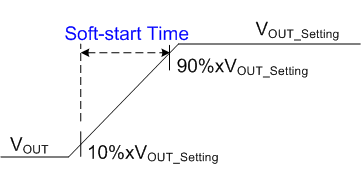

软启动时间 (t_SS)
开关频率 (f_SW)

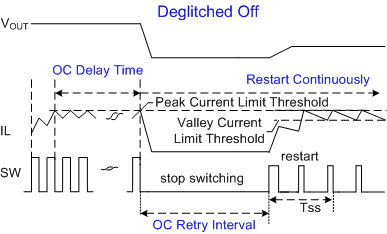

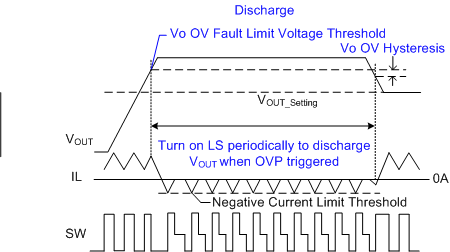

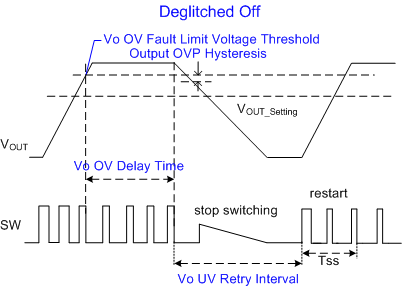

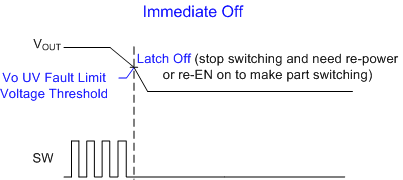

故障限制

采用 ECLGA-29 (5mmx6mmx4.4mm) 封装

… and many more!

Configurable 16V DC/DC Step-Down Power Module up to 20A,
and order from Digikey

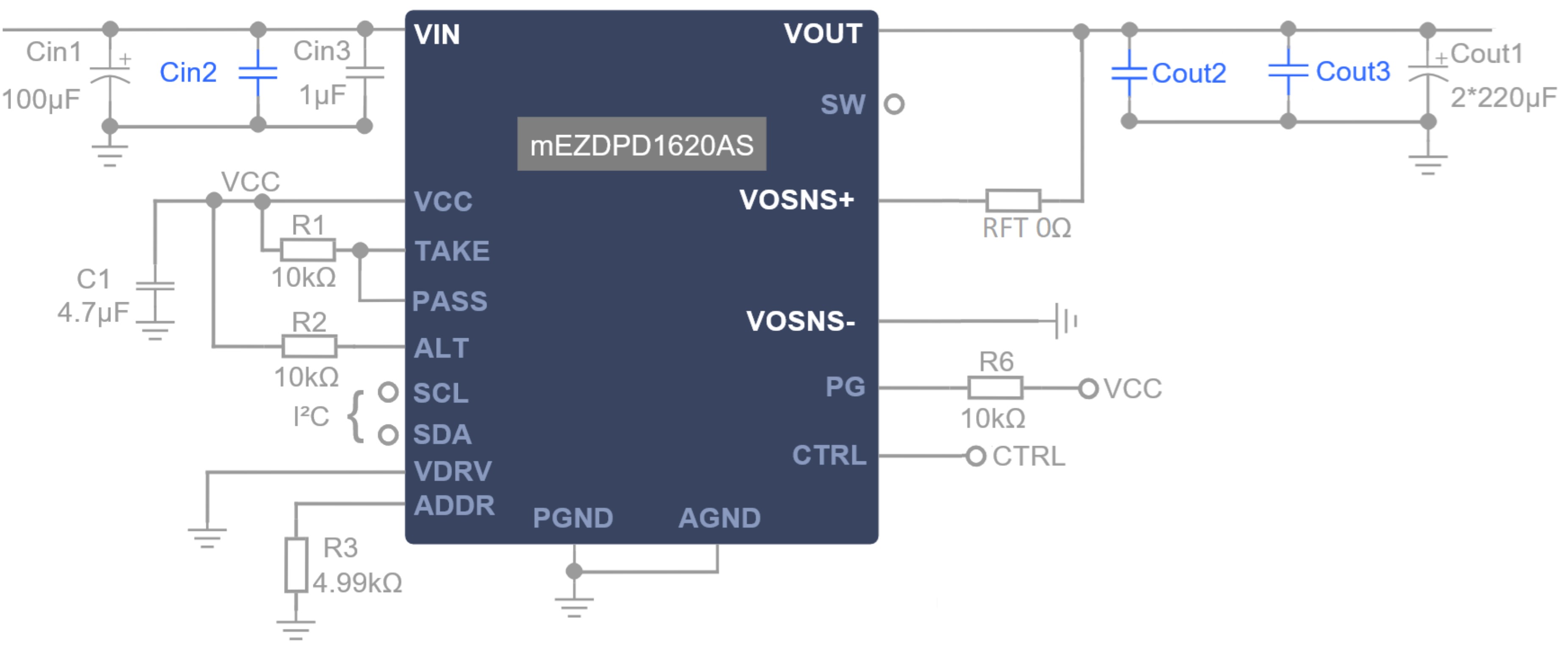

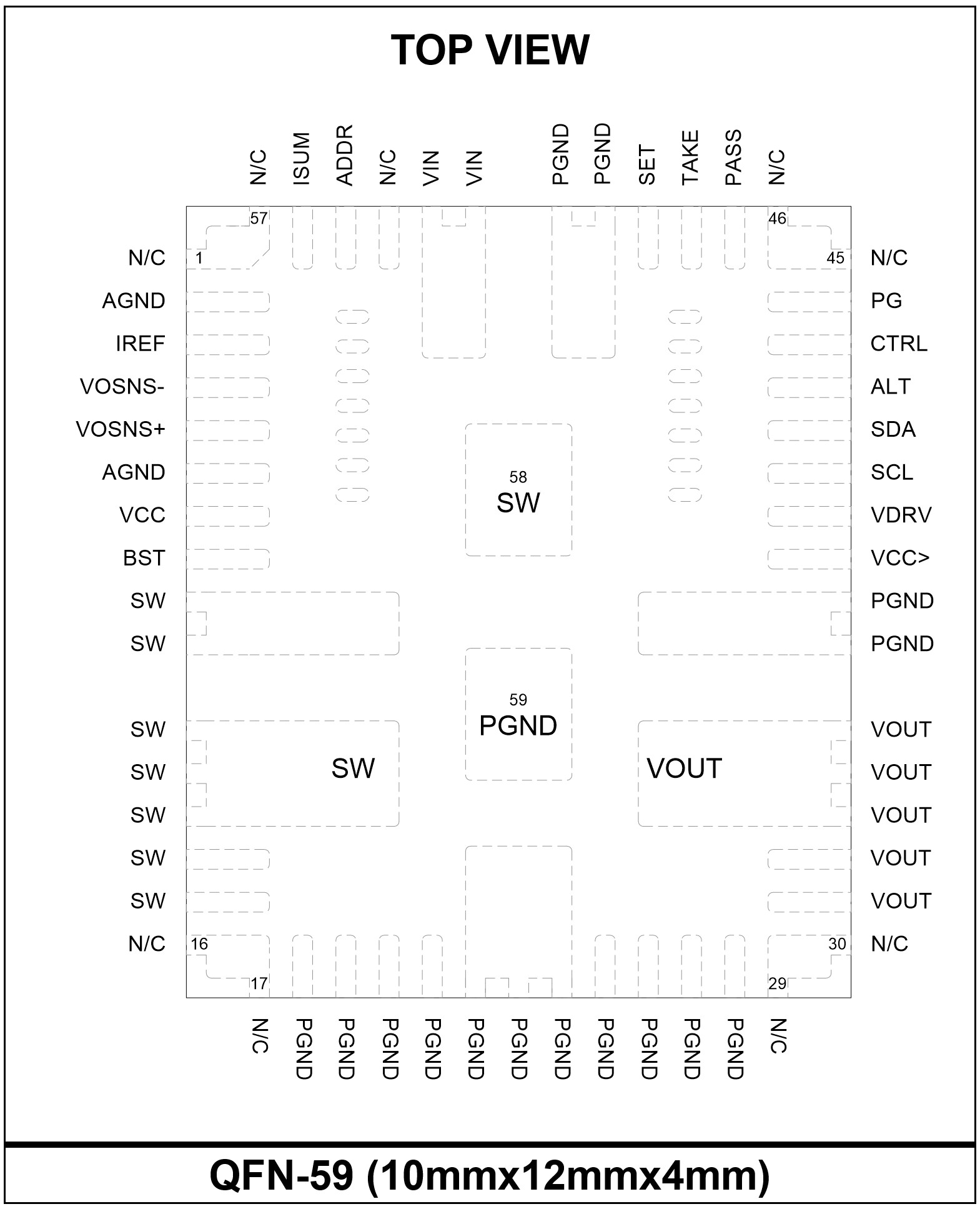

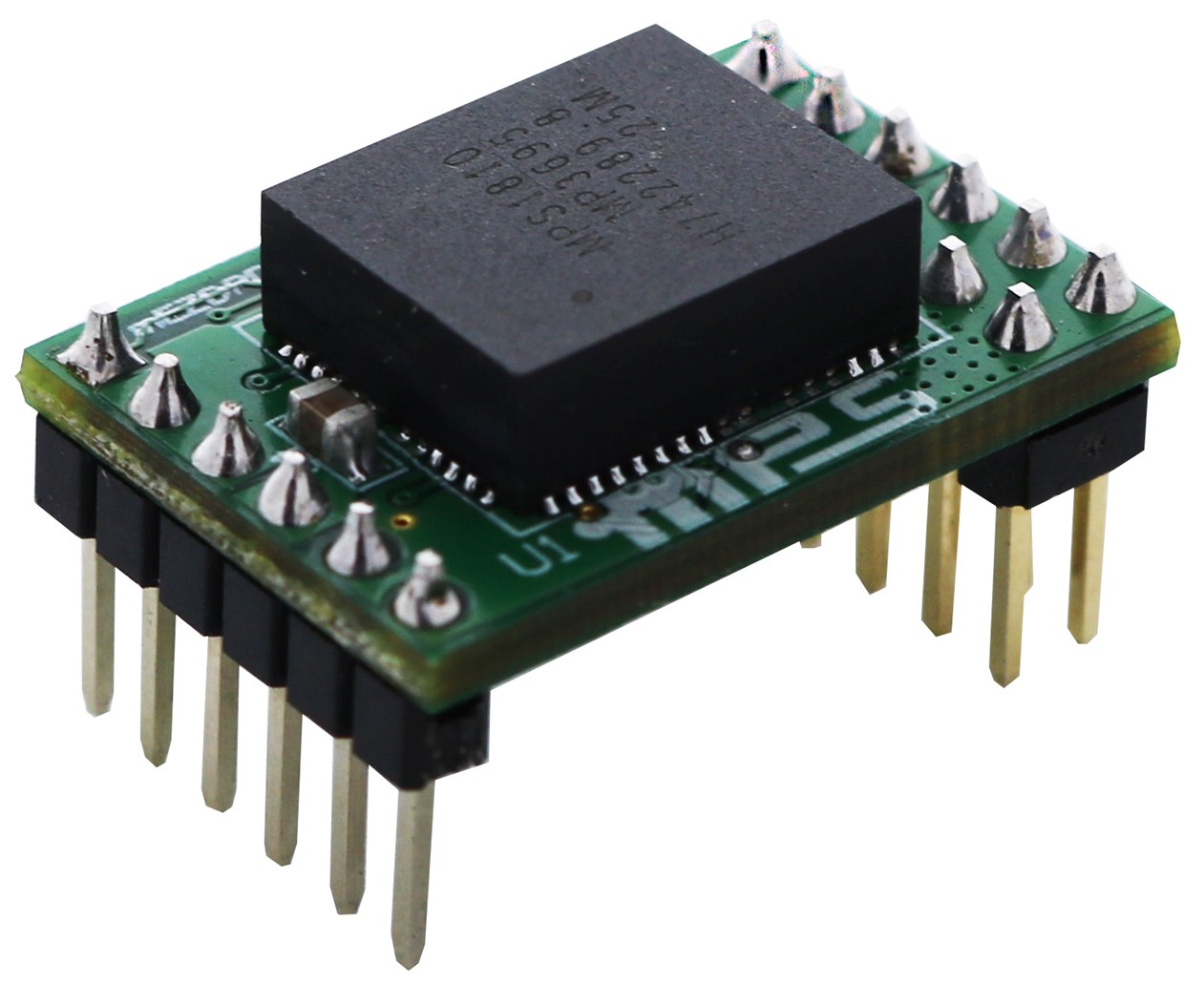

The mEZDPD1620 series are scalable, programmable DC/DC power supplies with up to 25A peak output current. There are two packages available: the mEZDPD1620AS is a surface mount (QFN package), and the mEZDPD1620A is in the DIP (Dual Inline Package).

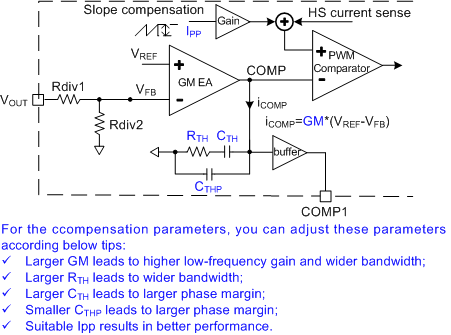

Digital programmable features enable the mEZDPD1620AS to be controlled and programmed via an I2C PMBus. Operation parameters can be programmed, including compensation, the output voltage transition slew rate, the switching frequency, and power save mode. Pre-configured DIP package modules are available to provide quick evaluation.

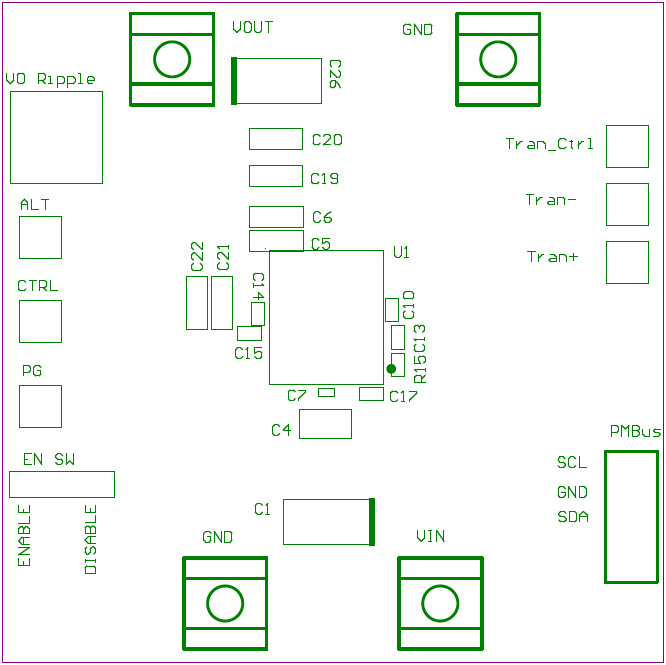

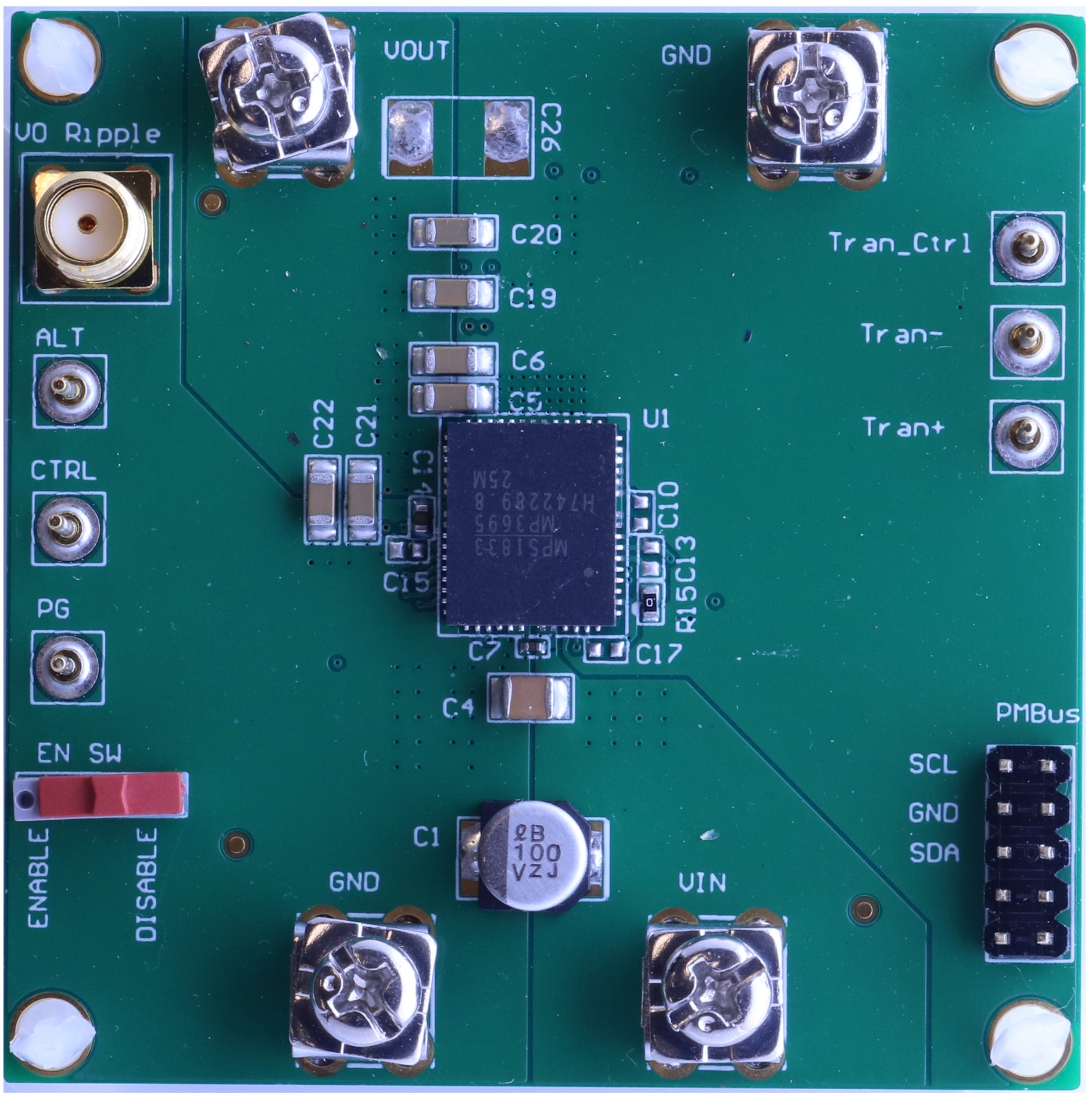

Want your custom configuration pre-loaded to the evaluation board module? Create and save a module configuration and order evaluation board here
