MP3397

5V-28V输入电压,4通道,330mA/ch,升压WLED控制器

MP3397

NOT RECOMMENDED FOR NEW DESIGNS

5V-28V输入电压,4通道,330mA/ch,升压WLED控制器

MP3397 continues to be in production for existing customers. Please consider this alternative for new designs:

MP3398A

正在供货

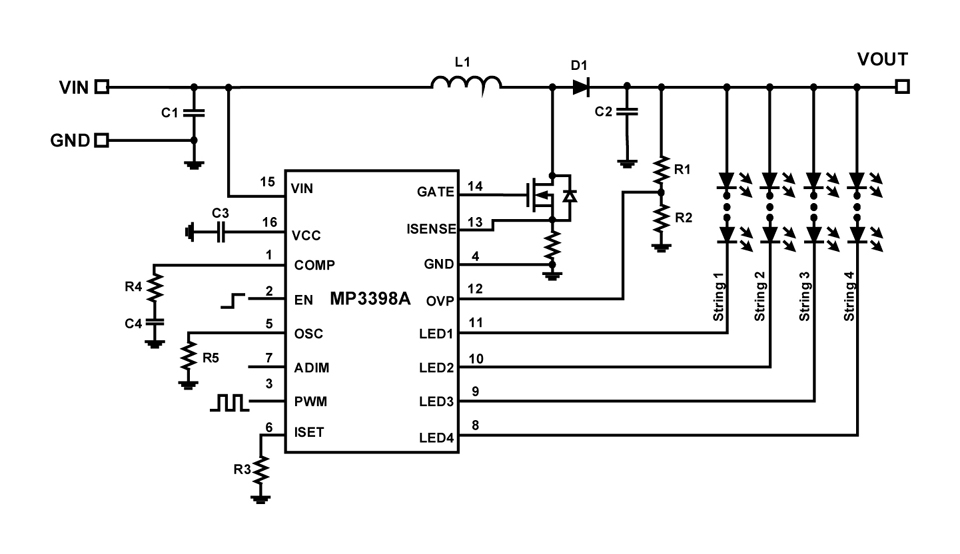

MP3398A

正在供货

5V-28Vin,4通道,350mA / 每通道的 白光LED升压控制器,具有独立的PDIM和ADIM引脚

Features & Benefits

  • 4串,每串最大电流 350mA的 WLED 驱动器
  • 输入电压范围:5V 至 28V
  • 灯串之间的电流匹配精度为2.5%
  • 可调开关频率
  • PWM和模拟调光模式
  • 单个电源的级联能力
  • LED 开路保护和短路保护
  • 可调过压保护
  • 可恢复过温关断保护
  • 过流保护
  • 电感/二极管短路保护
  • 欠压锁定(UVLO)保护
  • 采用 SOIC16 、TSSOP16-EP 和 SOIC20 封装

… and many more!

正在供货产品型号

MP3397ES-LF-P MP3397ES-LF-Z

P&Z的含义 显示更多

设计资源

元件库,封装库和 3D 模型
30种以上格式 Show more
Cad Symbols 元件库 (36)
Cad Footprints 封装库 (34)
Cad 3D Models 3D 模型 (15)

EDA model is not yet available for this part.

Please enter your email address and we will notify you when it is released.

直接从MPS购买



质量方针和证书
所有 MPS 产品都保证无铅,无卤素,并且遵守 RoHS 规范。详情请见“环境认证”。
