MP8773

3A, 23V, 500kHz单片同步降压变换器

MP8773

NOT RECOMMENDED FOR NEW DESIGNS

3A, 23V, 500kHz单片同步降压变换器

MP8773 continues to be in production for existing customers. Please consider this alternative for new designs:

MP2315

新设计不推荐使用

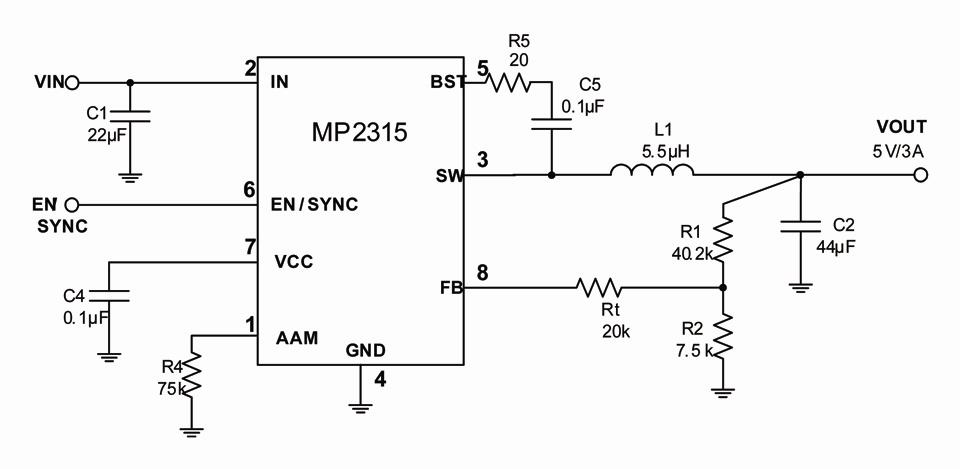

MP2315

新设计不推荐使用

3A, 24V, 500kHz高效同步降压变换器,具有AAM (轻载模式),采用TSOT23-8封装

Features & Benefits

  • 宽工作输入电压范围:4.5V 至 24V
  • 3A 负载电流
  • 内置90mΩ/40mΩ低导通电阻功率 MOSFETs
  • 低静态电流
  • 高效同步工作模式
  • 500kHz 固定开关频率
  • 200kHz 至 2Mhz 外部时钟频率同步功能
  • 高级异步调制(AAM)节电模式
  • 内部软启动
  • 带打嗝(Hiccup)保护的过流保护(OCP)
  • 过温关断保护
  • 最低0.8V的可调输出电压
  • 采用 8 引脚 TSOT-23 封装

… and many more!

正在供货产品型号

MP8773EL-Z MP8773EL-P MP8773EL-LF-Z MP8773EL-LF-P MP8773EN-Z MP8773EN-P

P&Z的含义 显示更多

设计资源

元件库,封装库和 3D 模型
30种以上格式 Show more
Cad Symbols 元件库 (36)
Cad Footprints 封装库 (34)
Cad 3D Models 3D 模型 (15)

EDA model is not yet available for this part.

Please enter your email address and we will notify you when it is released.

直接从MPS购买



了解更多我们的评估板套件
质量方针和证书
所有 MPS 产品都保证无铅,无卤素,并且遵守 RoHS 规范。详情请见“环境认证”。
