The TBMA900B is a test board for the MA900B series differential magnetic position sensors. This test board allows the users to easily evaluate the MA900B series. The sensor is mounted on the edge of the board and can only be used in end-of-shaft configurations.

The TBMA900B test board is compatible with the EVKT-MagAlpha-MagDiff communication kit (hardware) and the MagAlpha Evaluation App (software), offering seamless connection and operation of the MA900B series sensors, and allowing users to evaluate the MA900B series with their own set-up.

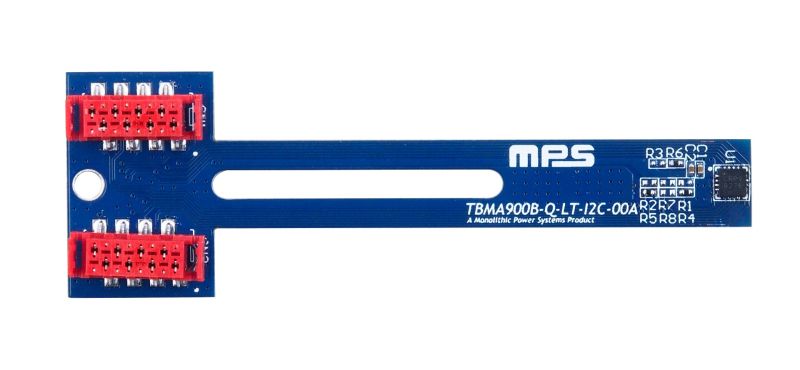

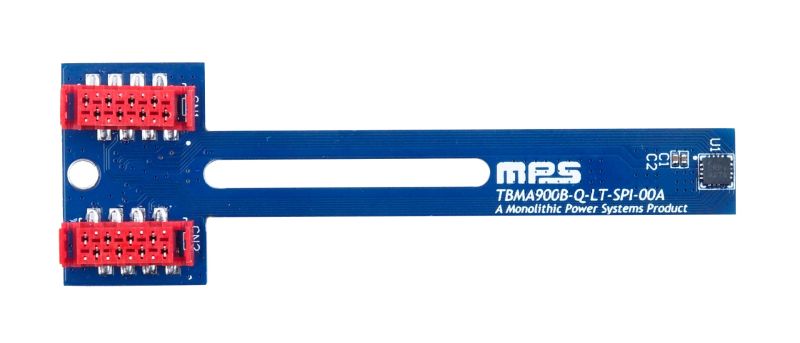

The TBMA900B test board includes an assembled board with the sensor, decoupling capacitors, and connectors.

The IC mounted on TBMA900B boards is the MA900B. Since the MA900B and MAQ900B are functionally equivalent, the TBMA900B can also be used to evaluate the MAQ900B.
