电感

电感

MPS的表面贴装电感适用于各类供电芯片和功率变换器应用。一体成型电感和半屏蔽式串联电感的电感范围为0.33μH至22μH,饱和电流范围为0.8 A至64 A。



助力MPS芯片实现更优的性能,提供简单完整的解决方案
高效率一体成型电感和半屏蔽电感可选,工作温度高达155°C
多种感量和体积可选,可用于各种芯片应用场景

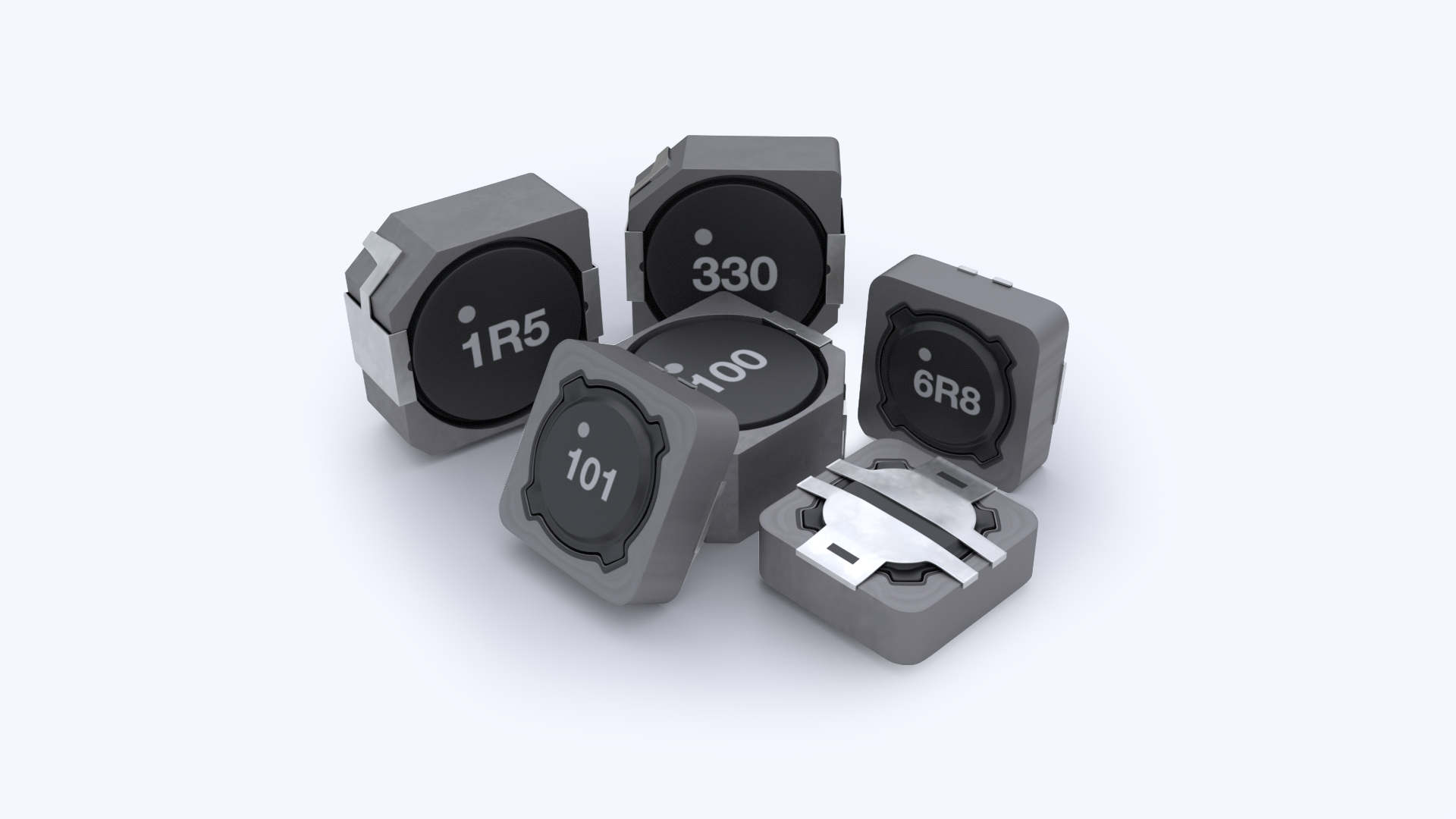

半屏蔽式电感

一体成型电感

评估板

通过汽车级AEC-Q100认证
为您的汽车应用随时做好准备

高功率效率
极好的散热性能

领先的功率密度
节省布板面积

针对如今要求苛刻的汽车应用,MPS 为其提供了高性能的电源管理解决方案。这些产品旨在解决关键的汽车应用难题,如抛负载,冷车启动,降低 EMI 电磁干扰,低待机功耗等。其中符合 AEC-Q100 汽车认证的产品为您提供了一整套系统解决方案,包括 DC/DC 转换器、电机驱动器以及全集成 USB 充电器和 LED 驱动器。


电感产品相关视频

Buck线路中,电感的设计是一个关键要点,它与系统的效率,输出纹波电压和环路稳定息息相关。
一直以来,工程师朋友对DCDC电源的功率电感下方是否应该铺铜持有不同意见。本视频将基于这两种思路展开讨论。
通过理论计算和实验测试判断...
了解电感的电气特性至关重要
20201203直播回顾


电感选择工具

Buck Sync Image Buck Non-Sync Image Boost Sync Image Boost Non-Sync Image
基于额定数值进行计算
参数显示栏
状态
MPS库存
Series Description
L (µH)
RDC(典型值)(mΩ)
IR (40K) (A)
饱和电流(30%)(A)
最大工作温度(°C)
A 尺寸(长)(mm)
B 尺寸(宽)(mm)
C 尺寸(高)(mm)
结构
MPSafe
MPL
Product URL
Series Description
L (µH)
RDC(典型值)(mΩ)
IR (40K) (A)
饱和电流(30%)(A)
最大工作温度(°C)
A 尺寸(长)(mm)
B 尺寸(宽)(mm)
C 尺寸(高)(mm)
结构
从MPS官网购买
Molded Low Profile
Molded
Molded Low Resistance
Semi-Shielded
Sample Kit
+155°C
+125°C
SMD
Is MPSafe Has MPL Product URL

MPL-AL4020-1R0

低阻抗塑封电感 1.0µH

从MPS官网购买 Molded Low Resistance 1.0 10.1 7.9 8.6 155°C 4.10 4.10 1.90 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-al4020-1r0.html
MPL-SE2512-1R5

半屏蔽电感1.5µH

从MPS官网购买 Semi-Shielded 1.5 50 2.9 3.2 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-1r5.html
MPL-AY1265-8R2

塑封电感 8.2µH

从MPS官网购买 Molded 8.2 12.5 11.5 18 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-8r2.html
MPL-AY1265-100

塑封电感 10µH

从MPS官网购买 Molded 10 13.3 10.7 16 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-100.html
MPL-AY1265-150

塑封电感 15µH

从MPS官网购买 Molded 15 21.8 8.5 12 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-150.html
MPL-AY1265-220

塑封电感 22µH

从MPS官网购买 Molded 22 31.4 7 9 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-220.html
MPL-SE2512-R68

半屏蔽电感 0.68µH

从MPS官网购买 Semi-Shielded 0.68 28 3.9 5 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-r68.html
MPL-SE2512-3R3

半屏蔽电感 3.3µH

Semi-Shielded 3.3 90 2.1 2.4 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-3r3.html
MPL-SE2512-1R0

半屏蔽电感 1.0µH

从MPS官网购买 Semi-Shielded 1.0 35 3.4 4.2 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-1r0.html
MPL-AY1265-5R6

塑封电感 5.6µH

从MPS官网购买 Molded 5.6 8.6 13 20 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-5r6.html
MPL-SE2512-2R2

半屏蔽电感 2.2µH

从MPS官网购买 Semi-Shielded 2.2 72 2.5 2.7 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-2r2.html
MPL-SE2512-4R7

半屏蔽电感 4.7µH

从MPS官网购买 Semi-Shielded 4.7 165 1.6 1.9 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-4r7.html
MPL-SE2512-100

半屏蔽电感10µH

从MPS官网购买 Semi-Shielded 10 410 1.1 1.3 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-100.html
MPL-SE2512-150

半屏蔽电感 15µH

从MPS官网购买 Semi-Shielded 15 620 0.85 0.9 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-150.html
MPL-SE2512-220

半屏蔽电感 22µH

从MPS官网购买 Semi-Shielded 22 885 0.7 0.8 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se2512-220.html
MPL-SE4030-1R0

半屏蔽电感 1.0µH

从MPS官网购买 Semi-Shielded 1.0 14 5.5 7.0 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-1r0.html
MPL-AY1265-6R8

塑封电感 6.8µH

从MPS官网购买 Molded 6.8 9.9 12 19.5 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-6r8.html
MPL-AY1265-4R7

塑封电感 4.7µH

从MPS官网购买 Molded 4.7 7.0 14 23 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-4r7.html
MPL-SE4030-3R3

半屏蔽电感 3.3µH

从MPS官网购买 Semi-Shielded 3.3 40 3.3 4.1 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-3r3.html
MPL-AY1265-R56

塑封电感 0.56µH

从MPS官网购买 Molded 0.56 1.1 31 58 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-r56.html
MPL-AY1050-3R3

塑封电感 3.3µH

从MPS官网购买 Molded 3.3 8 12.5 17 155°C 11.0 10.0 4.80 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1050-3r3.html
MPL-AY1050-4R7

塑封电感 4.7µH

从MPS官网购买 Molded 4.7 9.5 11.5 15 155°C 11.0 10.0 4.80 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1050-4r7.html
MPL-AY1050-5R6

塑封电感 5.6µH

从MPS官网购买 Molded 5.6 13 9.8 14 155°C 11.0 10.0 4.80 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1050-5r6.html
MPL-AY1050-6R8

塑封电感 6.8µH

从MPS官网购买 Molded 6.8 15 9 13 155°C 11.0 10.0 4.80 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1050-6r8.html
MPL-AY1050-100

塑封电感 10µH

从MPS官网购买 Molded 10 19 7.8 12 155°C 11.0 10.0 4.80 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1050-100.html
MPL-AY1265-R47

塑封电感 0.47µH

从MPS官网购买 Molded 0.47 0.89 33 64 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-r47.html
MPL-AY1265-R68

塑封电感 0.68µH

从MPS官网购买 Molded 0.68 1.25 29 51 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-r68.html
MPL-AY1265-3R3

塑封电感 3.3µH

从MPS官网购买 Molded 3.3 5.5 16 25 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-3r3.html
MPL-AY1265-R82

塑封电感 0.82µH

从MPS官网购买 Molded 0.82 1.3 27 46 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-r82.html
MPL-AY1265-1R0

塑封电感 1.0µH

从MPS官网购买 Molded 1.0 1.5 25.5 43 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-1r0.html
MPL-AY1265-1R2

塑封电感 1.2µH

从MPS官网购买 Molded 1.2 1.8 24 37 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-1r2.html
MPL-AY1265-1R5

塑封电感 1.5µH

从MPS官网购买 Molded 1.5 2.3 22 34 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-1r5.html
MPL-AY1265-1R8

塑封电感 1.8µH

从MPS官网购买 Molded 1.8 3.3 20 29 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-1r8.html
MPL-AY1265-2R2

塑封电感 2.2µH

从MPS官网购买 Molded 2.2 3.7 17 26.5 155°C 13.50 12.60 6.20 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1265-2r2.html
MPL-SE4030-2R2

半屏蔽电感 2.2µH

从MPS官网购买 Semi-Shielded 2.2 30 3.7 5.5 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-2r2.html
MPL-SE4030-4R7

半屏蔽电感 4.7µH

从MPS官网购买 Semi-Shielded 4.7 62 2.6 3.4 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-4r7.html
MPL-AY1050-1R5

塑封电感 1.5µH

从MPS官网购买 Molded 1.5 3.4 17 26.5 155°C 11.0 10.0 4.80 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-ay1050-1r5.html
EVSK-003

功率电感样品套件,MPL-AY一体成型电感系列(尺寸 1050、1265)

从MPS官网购买 Sample Kit 1 0 https://www.monolithicpower.cn/cn/products/inductor/evsk-003.html
MPL-SE6040-100

半屏蔽电感 10µH

从MPS官网购买 Semi-Shielded 10 41 3.8 3.4 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-100.html
MPL-SE6040-150

半屏蔽电感 15µH

从MPS官网购买 Semi-Shielded 15 70 2.8 2.7 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-150.html
MPL-SE6040-220

半屏蔽电感  22µH

从MPS官网购买 Semi-Shielded 22 97 2.35 2.25 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-220.html
MPL-SE2512-6R8

半屏蔽电感6.8μH

从MPS官网购买 Semi-Shielded 6.8 305 1.2 1.6 125°C 2.5 2.0 1.2 SMD 1 0 https://www.monolithicpower.cn/cn/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-6r8.html
EVSK-001

功率电感样品套件,MPL-AT 薄型一体成型电感系列(尺寸 2010、2512、2514)

从MPS官网购买 Sample Kit 1 0 https://www.monolithicpower.cn/cn/products/inductor/evsk-001.html
EVSK-002

功率电感样品套件,MPL-AT一体成型电感系列(尺寸 3020、4020)

从MPS官网购买 Sample Kit 1 0 https://www.monolithicpower.cn/cn/products/inductor/evsk-002.html
EVSK-004

功率电感样品套件,MPL-AL低阻抗一体成型电感系列(尺寸 4020、5030、5050、6050、6060)

从MPS官网购买 Sample Kit 1 0 https://www.monolithicpower.cn/cn/products/inductor/evsk-004.html
MPL-SE6040-6R8

半屏蔽电感 6.8µH

从MPS官网购买 Semi-Shielded 6.8 33 4.4 4.1 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-6r8.html
EVSK-005

功率电感样品套件,MPL-SE半屏蔽电感系列(尺寸 4030、5040、6040)

从MPS官网购买 Sample Kit 1 0 https://www.monolithicpower.cn/cn/products/inductor/evsk-005.html
EVSK-006

功率电感样品套件,MPL-SE半屏蔽电感系列(尺寸 2512)

从MPS官网购买 Sample Kit 1 0 https://www.monolithicpower.cn/cn/products/inductor/evsk-006.html
MPL-SE4030-R68

半屏蔽电感 0.68μH

从MPS官网购买 Semi-Shielded 0.68 10 6 7.5 125°C 4.0 ± 0.20 4.0 ± 0.20 3.0 max SMD 1 0 https://www.monolithicpower.cn/cn/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-r68.html
MPL-SE4030-330

半屏蔽电感33μH

从MPS官网购买 Semi-Shielded 33 330 1.1 1.2 125°C 4.0 ± 0.20 4.0 ± 0.20 3.0 max SMD 1 0 https://www.monolithicpower.cn/cn/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-330.html
MPL-SE4030-470

半屏蔽电感47μH

从MPS官网购买 Semi-Shielded 47 480 0.9 1 125°C 4.0 ± 0.20 4.0 ± 0.20 3.0 max SMD 1 0 https://www.monolithicpower.cn/cn/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-470.html
MPL-AT2512-2R2

薄型塑封电感 2.2μH

从MPS官网购买 Molded Low Profile 2.2 68 2.8 3.4 125°C 2.50 2.0 1.20 SMD 1 0 https://www.monolithicpower.cn/cn/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-2r2.html
MPL-SE6040-8R2

半屏蔽电感 8.2µH

从MPS官网购买 Semi-Shielded 8.2 39 4.0 3.6 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-8r2.html
MPL-SE6040-4R7

半屏蔽电感 4.7µH

从MPS官网购买 Semi-Shielded 4.7 23 5.2 5 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-4r7.html
MPL-SE4030-6R8

半屏蔽电感 6.8µH

从MPS官网购买 Semi-Shielded 6.8 90 2.2 2.9 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-6r8.html
MPL-SE5040-2R2

半屏蔽电感 2.2µH

从MPS官网购买 Semi-Shielded 2.2 16 5.4 7.9 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-2r2.html
MPL-SE4030-100

半屏蔽电感 10µH

从MPS官网购买 Semi-Shielded 10 100 2 2.2 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-100.html
MPL-SE4030-150

半屏蔽电感 15µH

从MPS官网购买 Semi-Shielded 15 185 1.4 1.8 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-150.html
MPL-SE4030-220

半屏蔽电感 22µH

从MPS官网购买 Semi-Shielded 22 220 1.3 1.5 125°C 4.0 4.0 3.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se4030-220.html
MPL-SE5040-R47

半屏蔽电感 0.47µH

从MPS官网购买 Semi-Shielded 0.47 7.3 8.0 16 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-r47.html
MPL-SE5040-1R0

半屏蔽电感 1.0µH

从MPS官网购买 Semi-Shielded 1.0 9.4 7.6 10.5 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-1r0.html
MPL-SE5040-1R5

半屏蔽电感 1.5µH

从MPS官网购买 Semi-Shielded 1.5 14 6.2 9.3 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-1r5.html
MPL-SE5040-3R3

半屏蔽电感 3.3µH

从MPS官网购买 Semi-Shielded 3.3 22 5.2 6.4 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-3r3.html
MPL-SE6040-3R3

半屏蔽电感 3.3µH

从MPS官网购买 Semi-Shielded 3.3 19.5 5.6 5.6 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-3r3.html
MPL-SE5040-4R7

半屏蔽电感 4.7µH

从MPS官网购买 Semi-Shielded 4.7 33 4.3 5 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-4r7.html
MPL-SE5040-6R8

半屏蔽电感 6.8µH

从MPS官网购买 Semi-Shielded 6.8 45 3.5 4.6 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-6r8.html
MPL-SE5040-100

半屏蔽电感 10µH

从MPS官网购买 Semi-Shielded 10 56 3.2 3.6 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-100.html
MPL-SE5040-150

半屏蔽电感 15µH

从MPS官网购买 Semi-Shielded 15 83 2.5 2.9 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-150.html
MPL-SE5040-220
Semi-Shielded Inductor 22µH
从MPS官网购买 Semi-Shielded 22 124 2.1 2.4 125°C 4.90 4.90 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se5040-220.html
MPL-SE6040-1R5

半屏蔽电感1.5µH

从MPS官网购买 Semi-Shielded 1.5 11.5 6.8 8.9 125°C 6.0 6.0 4.0 SMD 1 0 https://www.monolithicpower.cn/cn/mpl-se6040-1r5.html
MPL-SE6040-2R2
