EVM3809C-PH-01A

EVM3809C-PH-01A

5.5V, 0.6A, Ultra-Small Package, Step-Down Module Evaluation Board

详情

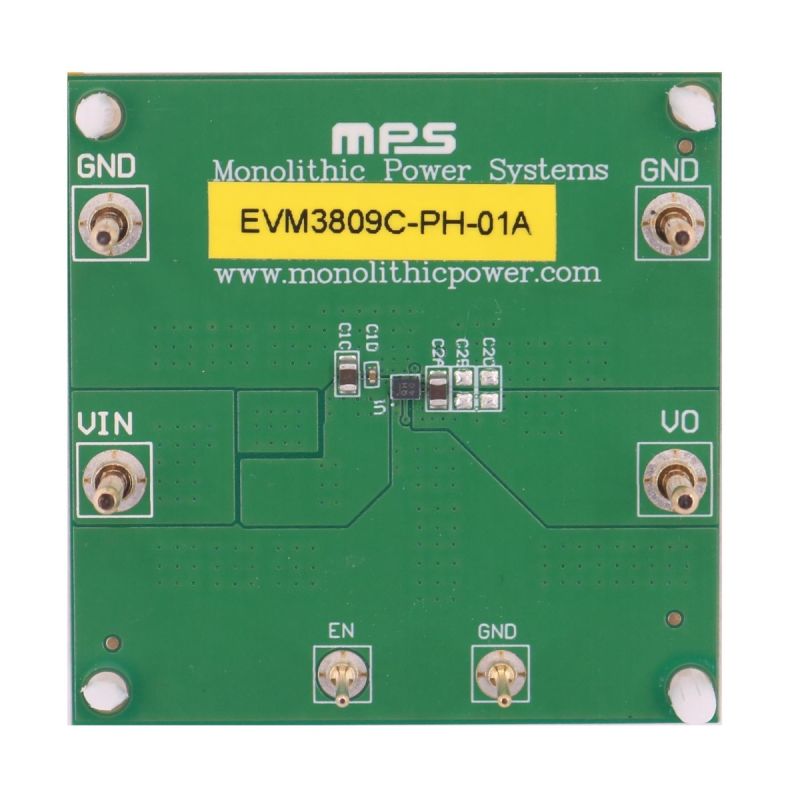

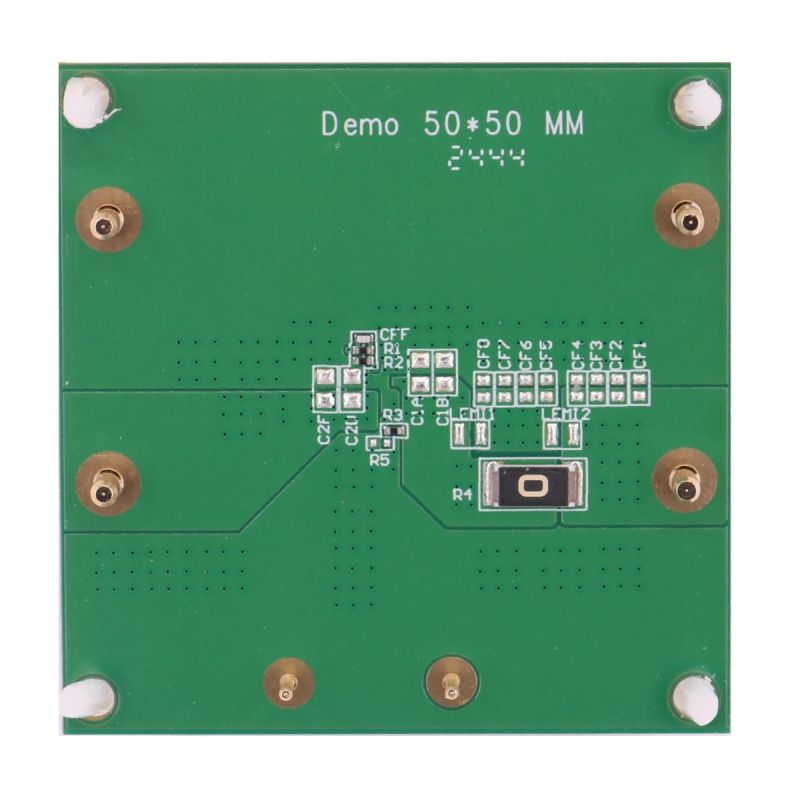

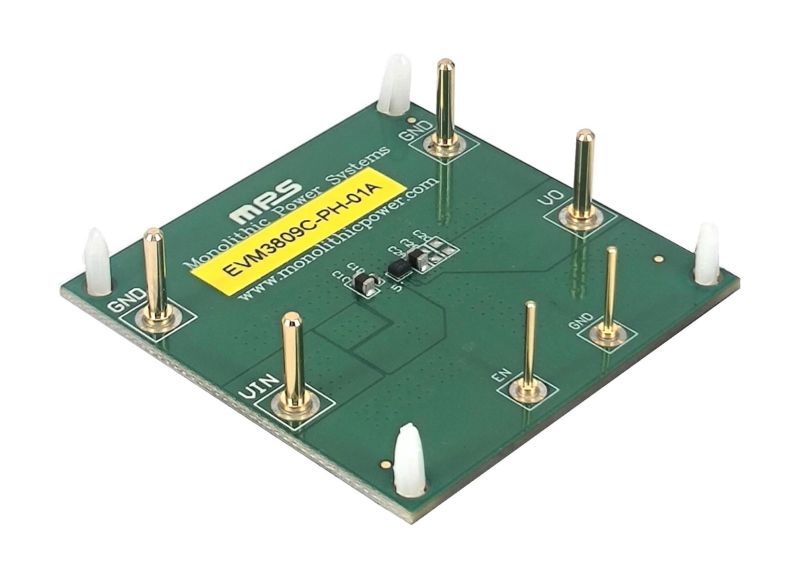

The EVM3809C-PH-01A evaluation board is designed to demonstrate the capabilities of the MPM3809C, a fully integrated, high-efficiency, synchronous step-down power module. The device provides up to 0.6A of output current (I_OUT).

The MPM3809C features internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The switching frequency (f_SW) is fixed at 2.4MHz. Refer to the MPM3809C datasheet for additional detailed information.

It is recommended to read the MPM3809C datasheet before making any changes to the EVM3809C-PH-01A.

评估所用产品

MPM3809CGPH

采用超小尺寸封装的 2.3V 至 5.5V 输入、0.6A 电源模块

产品特性和优势

Wide 2.3V to 5.5V Operating Input Voltage (V_IN) Range
Output Voltage (V_OUT) as Low as 0.6V
100% Duty Cycle in Dropout
0.6A Output Current (I_OUT)
2.4MHz Switching Frequency (f_SW)
Forced Continuous Conduction Mode (FCCM)
Enable (EN) for Power Sequencing
Cycle-by-Cycle Over-Current Protection (OCP)
0.5ms Internal Soft-Start (SS) Time (t_{SS_ON})
Output Discharge
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Stable with Low-ESR, Ceramic Output Capacitors
Available in an ECLGA-6 (1.5mmx2mmx1mm) Package
