5.5V, 1A, Ultra-Small Package, Step-Down Module with PSM Evaluation Board

详情

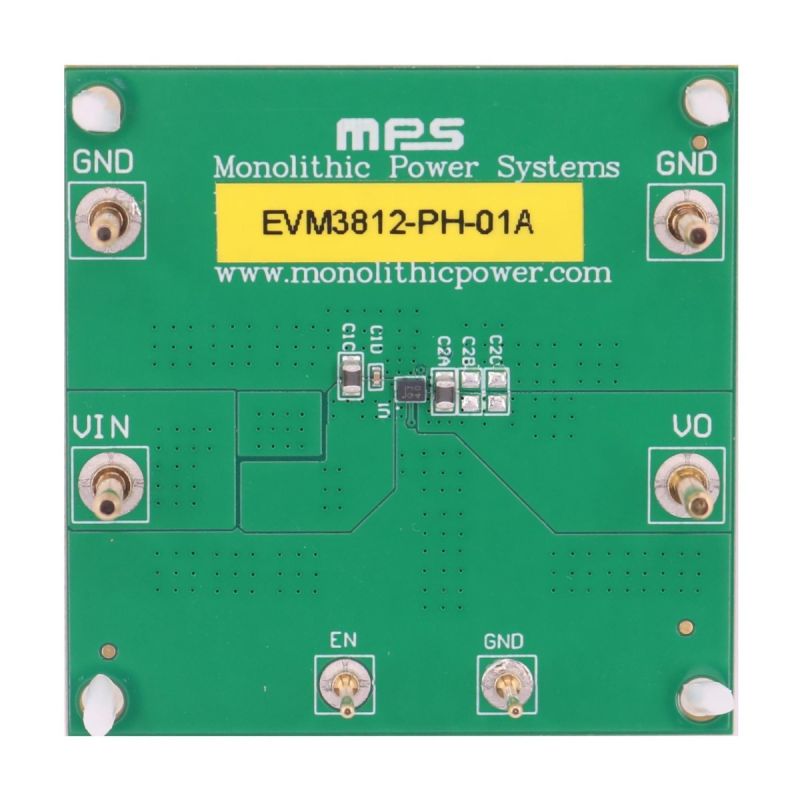

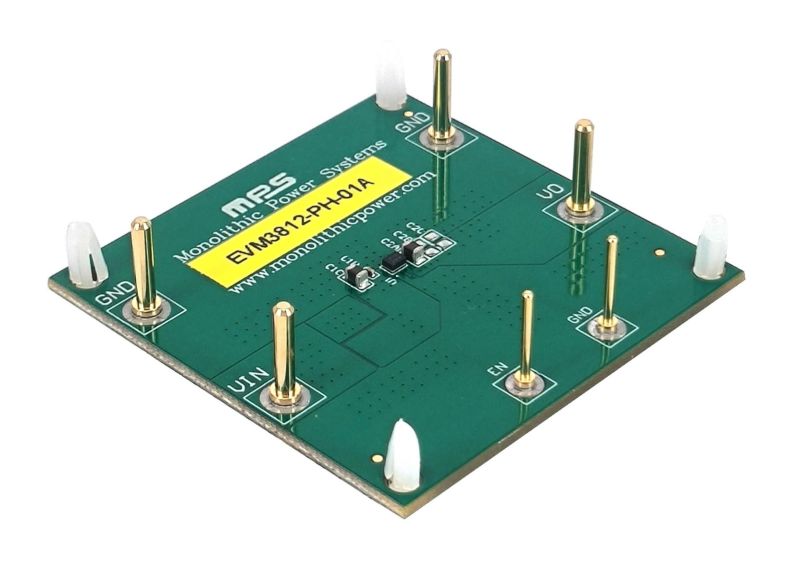

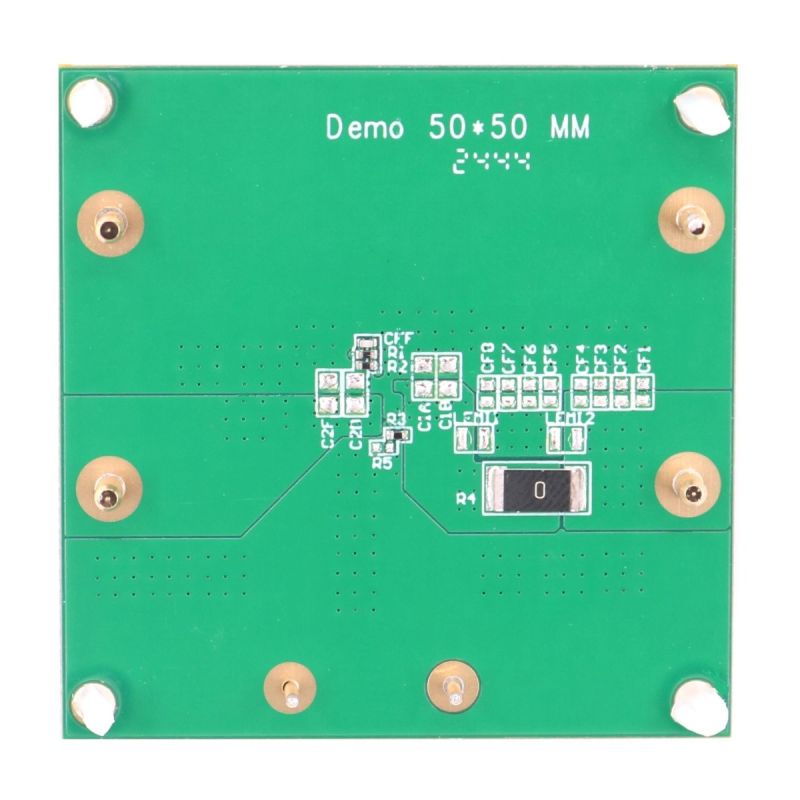

The EVM3812-PH-01A evaluation board is designed to demonstrate the capabilities of the MPM3812, a fully integrated, high-efficiency, synchronous, step-down power module with up to 1A of output current (I_OUT).

The MPM3812 adopts internally compensated constant-on-time (COT) control to provide fast transient response and easy loop stabilization. The switching frequency (f_SW) is fixed at 2.4MHz. Refer to the MPM3812 datasheet for more detailed information.

It is recommended to read the MPM3812 datasheet prior to making any changes to the EVM3812-PH-01A.

评估所用产品

MPM3812GPH

采用超小尺寸封装的 2.3V 至 5.5V 输入、1A、节能模式 (PSM) 电源模块

产品特性和优势

Wide 2.3V to 5.5V Operating Input Voltage (V_IN) Range
Output Voltage (V_OUT) as Low as 0.6V
100% Duty Cycle in Dropout Mode
Up to 1A of Continuous Output Current (I_OUT) and 1.2A Peak I_OUT
2.4MHz Switching Frequency (f_SW)
Power-Save Mode (PSM)
Enable (EN) for Power Sequencing
Cycle-by-Cycle Over-Current Protection (OCP)
0.5ms Internal Soft-Start (SS) Time (t_SS)
Output Discharge
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Stable with Low-ESR Output Ceramic Capacitors
Available in an ECLGA-6 (1.5mmx2mmx1mm) Package
