425kHz, Bidirectional PD Charger Solution with Fully Integrated Buck-Boost Charger for 2 Cells to 4 Cells in Series Evaluation Board

详情

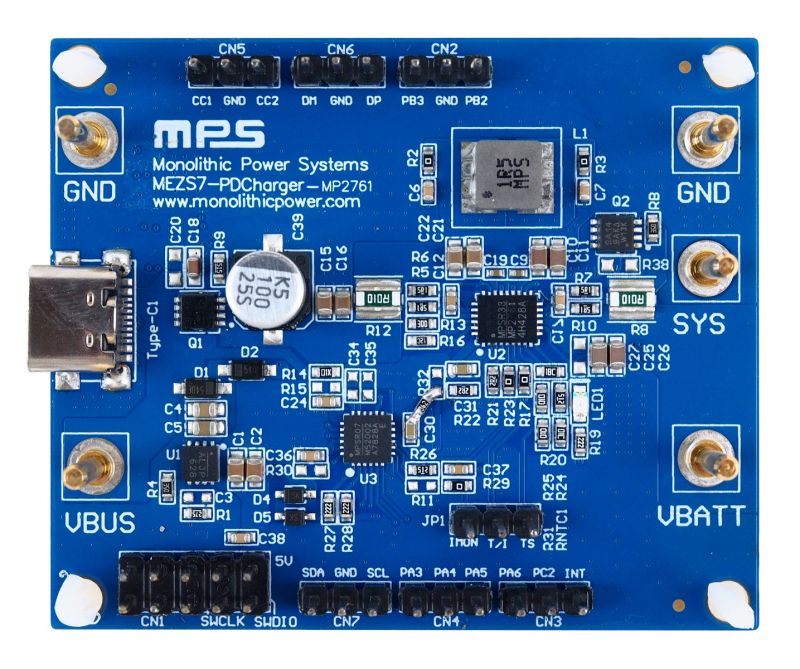

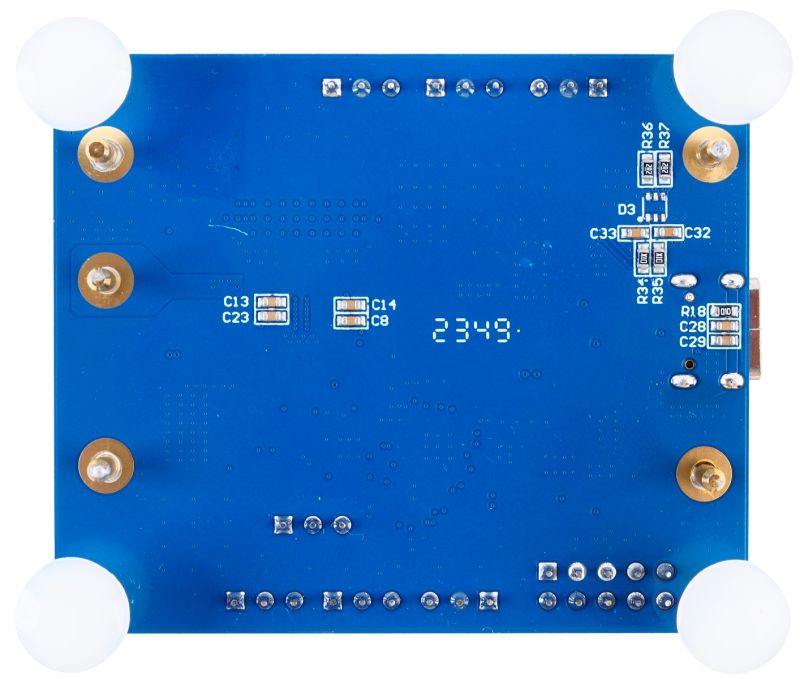

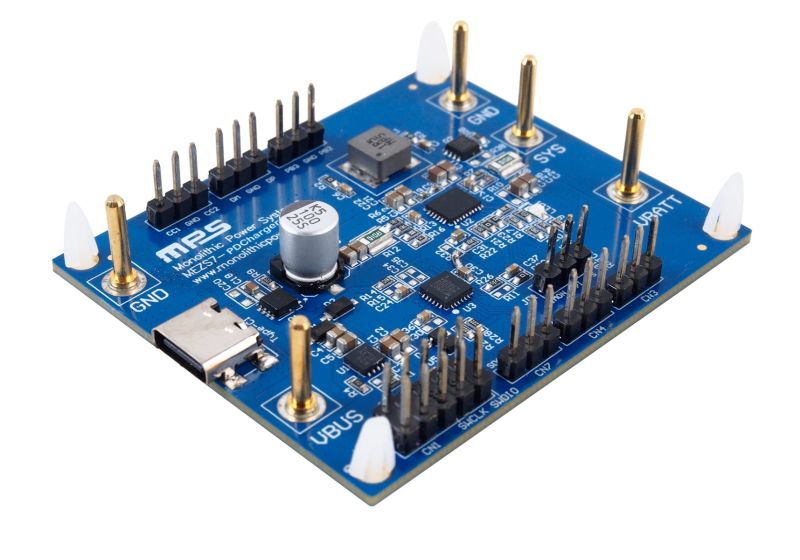

The MEZS7-PDCharger-MP2761 is a solution module for dual-role port (DRP) applications using the MP2761 and MPF52002.

The MP2761 is a 4V to 22V input voltage (V_IN) buck-boost charger IC designed for battery packs with 2 cells to 4 cells in series. It also supplies a wide voltage range (5V to 21V) at the IN pin in source mode, which is compliant with USB power delivery (PD). It also has an output current (I_OUT) limit with a high resolution in source mode.

The MPF52002 is a highly integrated USB PD controller for DRP ports, with a 32-bit ARM Cortex-M0 microcontroller unit (MCU). It supports automatic DRP toggling for DRP applications, and is compliant with PD3.1 specifications. For source mode, the MPF52002 supports PD 3.1, BC 1.2, Apple divider mode, Huawei FCP/SCP, and QC 2.0/3.0.

The MEZS7-PDCharger-MP2761 contains a DRP USB Type-C port, supporting PD 3.1 and BC 1.2 protocols. When an adapter is inserted, the port acts as a sink port to charge the battery with a maximum 6A charge current. When a load is inserted, the port acts as a source port to power the USB VBUS from the battery.

产品特性和优势

Buck-Boost Charger for 2-Cell to 4-Cell in Series Battery Packs
4V to 22V Operating Input Voltage (V_IN)
Up to 26V Sustainable Voltage (Up to 28V with an External MOSFET)
Supports USB 2.0, USB 3.0, USB 3.1, USB 3.2, USB Type-C, and USB PD 3.0 Settings
Smooth Transitions between Buck and Boost Modes
Configurable Maximum Input Current (I_IN) Limit and Minimum V_IN Limit
Up to 6A of Configurable Charge Current
Configurable Battery-Full Voltage Up to 18.72V with 0.5% Accuracy
Configurable 4V to 21V IN Output Voltage in Source Mode (V_{IN_SRC}) with 20mV/Step
Up to 6A IN Output Current in Source Mode (I_{IN_SRC}) with 50mA/Step
375kHz to 770kHz Configurable Switching Frequency (f_SW)
I²C or SMBus Host Control Interface
Input Power Source Status Indicator
Integrated 10-Bit Analog-to-Digital Converter (ADC)
Analog Output Pin Monitors Battery Current in Charge Mode and Source Mode
Input, System, and Battery Over-Voltage Protection (OVP)
System Short-Circuit Protection (SCP) in Charge Mode
IN Output SCP in USB Power Delivery (PD) Source Mode
Battery Missing Detection
NTC Pin Floating Detection
Integrated N-Channel MOSFET Driver for Input Power Pass-Through or OVP
Integrated N-Channel MOSFET Driver for Narrow-Voltage DC (NVDC) Power Path Control
Configurable JEITA for Battery Temperature Protection
Thermal Regulation and Thermal Shutdown

正在供货产品型号

MEZS7-PDCharger-MP2761

相关产品

MP2761 I²C 接口控制、2至4节电池升降压充电器IC，带NVDC 电源路径管理功能

MP2761 是一款专为 2 至 4 节串联电池组设计的升降压充电器 IC。该器件支持 4V 至 22V 的宽输入电压 (VIN) 范围内为电池充电。其升降压拓扑结构允许电池电压高于或低于 V_IN。

当接入输入电源时，MP2761 工作在充电模式。它会测量电池电压，并分四个阶段为电池充电：恒流涓流充电、恒流预充电、恒流快速充电和恒压充电。此外还提供充电截止和自动再充电功能。

MP2761 集成了输入电流 (I_IN) 限制和 V_IN 限制功能，可避免输入电源过载，符合 USB 供电 (PD) 规范。

MP2761 还提供窄电压直流 (NVDC) 电源路径管理功能。它通过集成 N 沟道 MOSFET 驱动器 (BGATE) 控制外部 N 沟道 MOSFET (BATFET)，以调节系统最低电压并提供电池补充功能。当启用源模式时，该器件通过IN 引脚可提供4V 至 21V的宽输入电压范围，此外还提供高分辨率IN 输出电流限制 (I_{IN_SRC}) 功能。这些功能均符合 USB PD 规范。

MP2761 通过 I²C/SMBus 接口配置充电和放电参数，包括 I_IN 限值，V_IN 限值、充电电流、电池满电调节电压、源模式下的 IN 输出电压 (V_{IN_SRC})和 I_{IN_SRC}。MP2761 还利用 I²C/SMBus 寄存器提供状态和故障相关信息。

为确保安全运行，MP2761可将芯片温度限制在可配置阈值范围内；除此之外，还提供其他安全功能，包括输入过压保护 (OVP)、电池过压保护 (OVP)、系统过压保护 (OVP)、过温关断，以及可配置定时器以防止失效电池长时间充电。

MP2761 采用 TQFN-30 (4mmx5mm) 封装。

MPF52002GRE

用于 DRP 和Sink端口的单端口USB PD 控制器，支持固件更新和高级 PDP 管理
