Spartan 7 PMIC Solution with Power Sequencing for High Power Applications (4-12Vin)
For more information on reference designs
Response within 2 business days

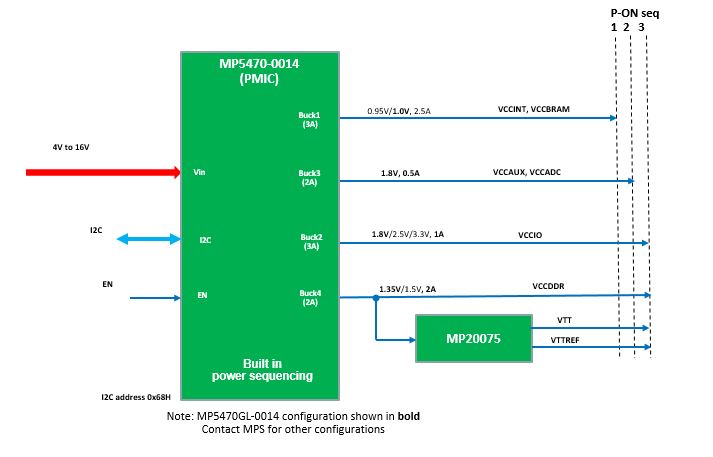

This reference design is intended for powering AMD Xilinx Spartan7 family of FPGAs (S6 - S100). This PMIC based solution combines a small footprint with good efficiency and tight regulation for a low cost solution. The internal sequencer ensures power up and power down sequencing requirements. MP5470 PMIC has 4x bucks, Vin range 6.5V to 16V, I2C support and available in a 3x4mm QFN package.
AMD Xilinx part numbers:
|MP5470GL-0014||1||4V-16V, Power Management IC with Four 3A/3A/2A/2A Buck Converters and Flexible System Setting via I2C and MTP|
|MP20075||1||3A, DDR Termination Regulator|
