EV-EVK-RD-01A

EV-EVK-RD-01A

MPS Ultrasound Controller Board

Datasheet

详情

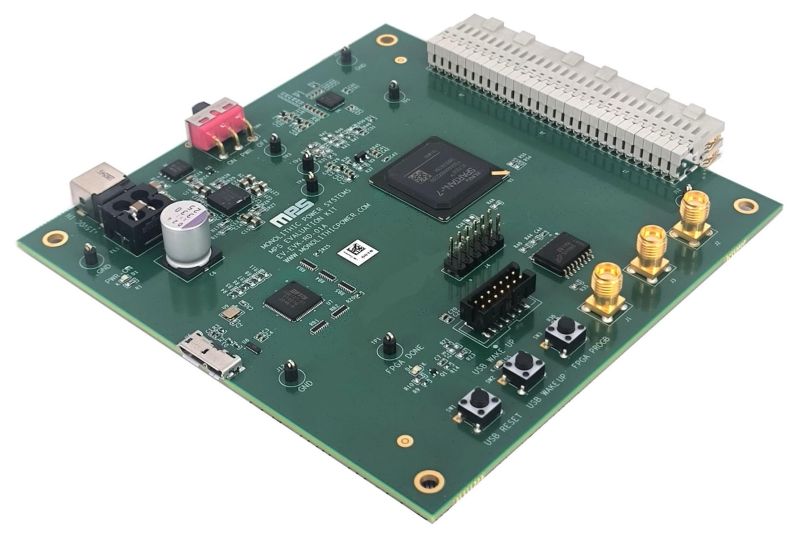

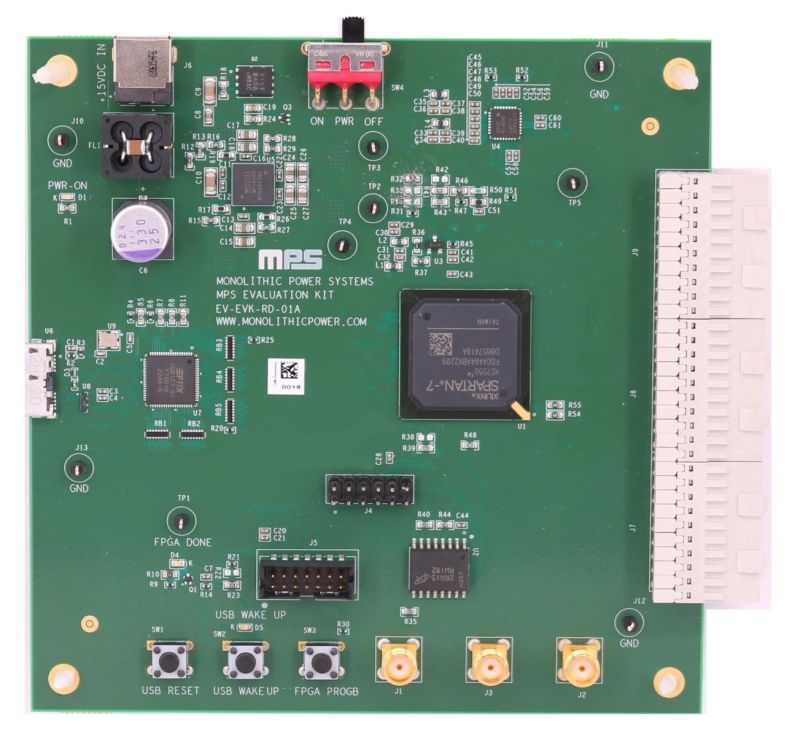

The EV-EVK-RD-01A is an ultrasound controller board that forms a key component of the MPS ultrasound IC evaluation kit, which includes the controller board and a compatible MPS ultrasound IC evaluation board.

Designed for versatility, the EV-EVK-RD-01A supports multiple evaluation board configurations. It connects to a PC via USB, and facilitates communication between the evaluation system and the PC using the MPS Ultrasound Test Bench software.

The EV-EVK-RD-01A user guide provides step-by-step instructions for setting up the controller board and establishing a reliable connection with the PC to enable seamless evaluation and testing of MPS ultrasound ICs.

评估所用产品

MP4865AGBD

集成输出泄放电阻、具有5V 偏压的 64 通道高压模拟开关

MP4835AGRD

集成输出泄放电阻、具有 5V 偏压的 32 通道、高压模拟开关

MP4895A

96 通道高压模拟开关，带输出泄放电阻和5V偏置

MP4898A

128 通道高压模拟开关，带输出泄放电阻和5V偏置

产品特性和优势

Advanced Field-Programmable Gate Array (FPGA) Control Powered by the Spartan-7 XC7S50-2FGGA484C FPGA
Delivers Precise and Reliable Control Signals for Seamless Integration with MPS Ultrasound IC Evaluation Boards
Intuitive PC-Based Operation Enables Full System Control via a User-Friendly PC Graphical User Interface (GUI)
Communication Is Established through a High-Speed USB Interface, Streamlining Evaluation, Configuration, and Data Acquisition

正在供货产品型号

EV-EVK-RD-01A

直接从MPS购买

标准定价

数量单价
1

¥2,411.59 /片

有货

3-10个工作日内到货。
每单运费仅为 5 美元。
