MP4895A

MP4895A

96-Channel, High-Voltage Analog Switch with Output Bleed Resistors and 5V Bias

详情

The MP4895A is a 96-channel, high-voltage analog switch with integrated output bleed resistors, designed for medical ultrasound imaging applications. It is designed to multiplex the transmission and can receive voltages to and from multiple piezoelectric transducers (PZTs).

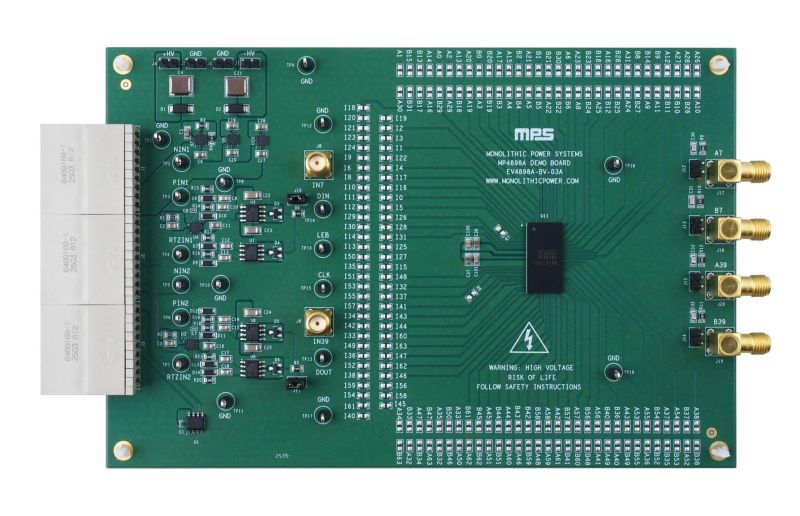

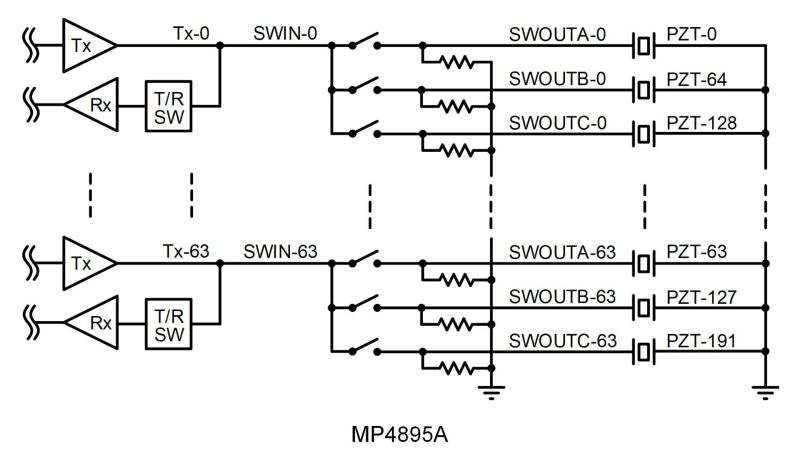

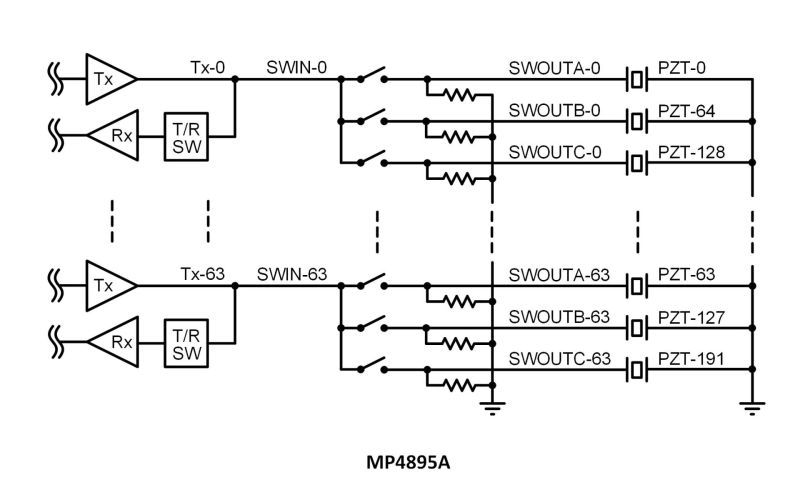

The 96 switches are configured as 32 1:3 multiplexers and demultiplexers. The MP4895A has 32 switch inputs. Each switch input is connected to three switch outputs (SWOUTA, SWOUTB, and SWOUTC) for a total of 96 switch outputs. The MP4895A is controlled by a 96-bit serial shift registers, followed by a 96-bit data latches. The switches can be turned on/off via the 96-bit serial shift register.

The MP4895A does not require any high-voltage supplies. Only two low-voltage supplies are required (3.3V and 5V). The analog switch can block or pass analog voltages up to ±90V with peak currents of up to ±1.8A.

The MP4895A is available in a BGA-144 (10mmx10mm) package.

产品特性和优势

No High-Voltage Supplies Required
96 Channels
1:3 Multiplexers/Demultiplexers
Up to ±90V Analog Signals
14Ω Typical Switch Resistance
±1.8A Typical Switch Peak Current
Off-Isolation of -66dB at 5MHz
Integrated Output Bleed Resistor
60MHz Clock Frequency
5V Bias Supply
Available in a BGA-144 (10mmx10mm) Package

正在供货产品型号

MP4895AGBD-T
