0.6W, Semi-Regulated, 3kVDC Isolated DC/DC Converter
Session Titefor popup
The MID06W0503A is a semi-regulated, isolated DC/DC converter. It can support 4.5V to 5.5V input voltage (VIN) applications, in a -40°C to 125°C operation temperature range. It has excellent load regulation, line regulation performance, supporting up to 0.6W output power.
The MID06W0503A integrates a power MOSFET, transformer, and feedback circuit all in one chip. This converter provides a smaller size and higher reliability operation compared to a traditional isolated power module. The MID06W0503A features SCP, OCP, and OTP.
The MID06W0503A requires a minimal number of readily available, standard external components, and is available in a low-profile, wide-body SOICW-16 package.
- 显示更多 显示较少
- 4.5V to 5.5V Input Voltage (VIN) Operation Range
- Isolation Voltage: 3kVDC
- Up to 0.6W Output Power (POUT)
- Max 38% Efficiency at Full Loads
- 0.5% Load Regulation
- 1% Line Regulation
- Excellent Transient Performance
- Continuous Short-Circuit Protection (SCP) with Hiccup Mode
- Over-Temperature Protection (OTP)
- Meets CISPR32 Class B Emissions
- CB Certification According to IEC62368-1 (In Process)
- Operation Temperature: -40°C to 125°C
- Available in an SOICW-16 Package
EV06W0503A-3-Y-00A Evaluation Kit 0.6W, Semi-Regulated, 3kVDC Isolated DC/DC Converter Evaluation Board

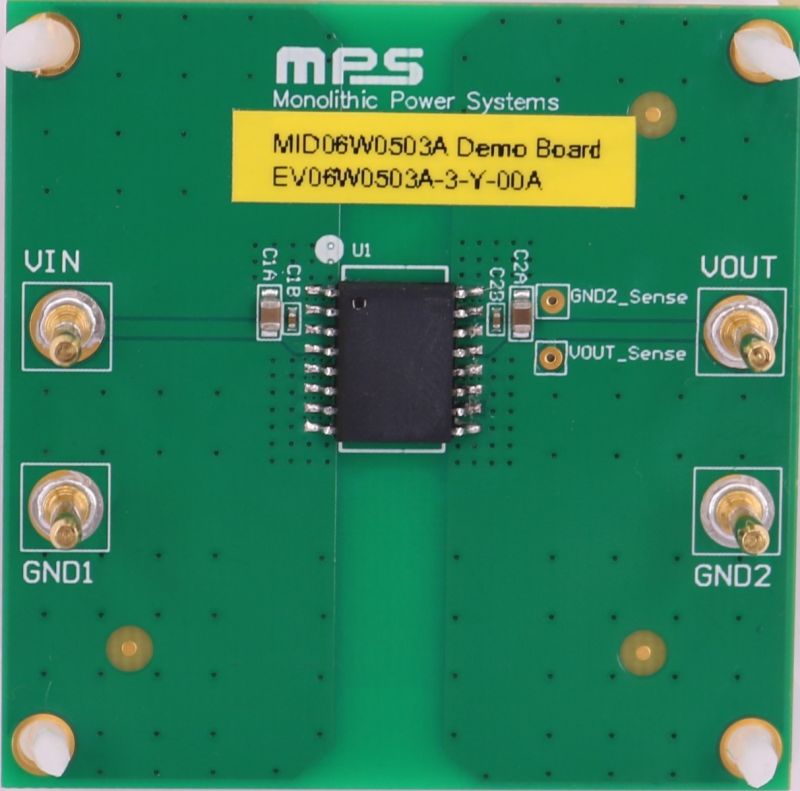

The EV06W0503A-3-Y-00A is an evaluation board designed to demonstrate the capabilities of the MID06W0503AGY-3, a semi-regulated, isolated DC/DC converter.
The MID06W0503AGY-3 includes an integrated power MOSFET, transformer, and feedback circuit all in one chip, and supporting insulation voltage with 3kVDC.This converter provides a smaller size and higher reliability operation compared to a traditional isolated power module.
It is recommended to read the datasheet for the MID06W0503A prior to making any changes to the EV06W0503A-3-Y-00A.
0.6W, Semi-Regulated, 1.5kVDC Isolated DC/DC Converter
