MP3710

MP3710

3-Cell to 18-Cell, High-Accuracy Battery Protector

详情

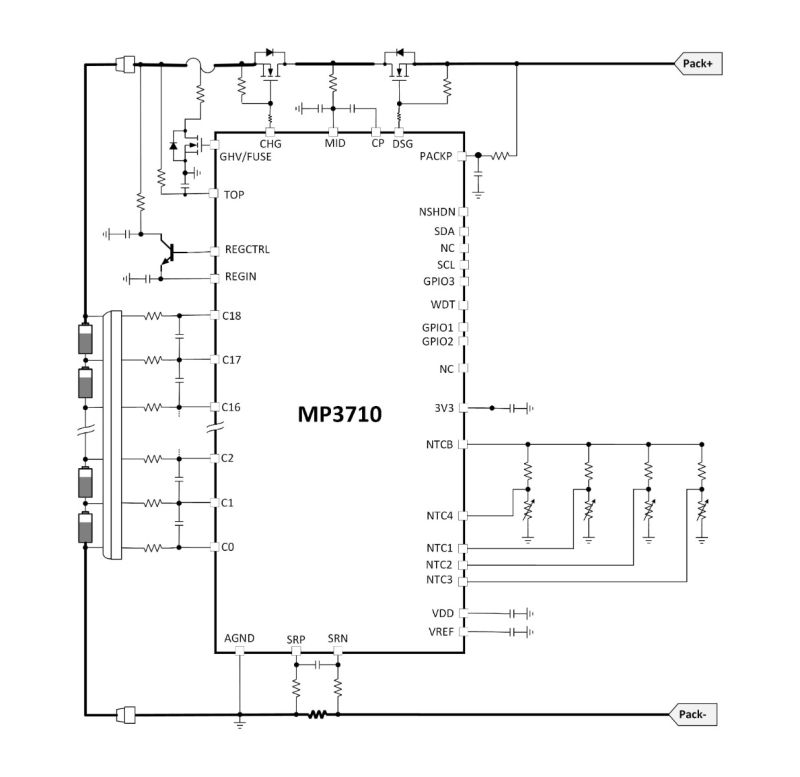

The MP3710 is a robust battery pack protection standalone solution. It supports connections for 3-cell to 18-cell series battery packs, with an absolute voltage exceeding 80V on particular pins.

The MP3710 includes a high-side MOSFET (HS-FET) driver. The discharge (DSG) MOSFET driver includes a configurable, scaled current soft start (SS) that provides a controlled turn-on, eliminating the need for an external pre-charge circuit. The MOSFET driver also incorporates over-current protection (OCP), short-circuit protection (SCP), battery under-voltage protection (UVP), battery over-voltage protection (OVP), cell over-temperature protection (OTP), and cell under-temperature protection (UTP). All these protection thresholds can be configured via non-volatile memory (NVM) configuration.

The MP3710 integrates the fuse driver for severe under-voltage protection (SUVP), severe over-voltage protection (SOVP), MOSFET damage protection, and abundant self-diagnostics protection. The FUSE pin can be considered as the permanent fault indication.

The MP3710 integrates GPIO indication for multiple combinations of the protection states. GPIO1 can be configured to indicate cell UVP or charging protection. GPIO2 can be configured to indicate cell OVP and open-wire or discharging protection. GPIO3 can be configured to indicate all protections.

Internal passive balancing MOSFETs can be used to equalize mismatched cells, supporting up to 58mA. There is also the option to drive external balancing transistors (MOSFET or BJT).

For applications requiring compliance with IPC 2221B or UL 60950-1, conformal coating may be required depending on the battery pack voltage.

The MP3710 is available in a TQFP-48 (7mmx7mm) package.

产品特性和优势

High-Accuracy Protections:
- Cell Over-Voltage Protection (OVP) Error < 10mV
- Cell Under-Voltage Protection (UVP) Error < 20mV
- Pack UVP/OVP Error < 0.32V
- Discharge Short-Circuit Protection (SCP) Error < 15%
- Cell Over-Temperature (OT) and Under-Temperature (UT) Error < 1°C
- Charge/Discharge Over-Current Protection (OCP) Error < 5%
- Discharge SCP Error < 15%
Includes High-Side (HS) N-Channel MOSFET Driver for Charge and Discharge Control:
- Supports Soft Start (SS) to Eliminate Pre-Charge Circuit
- Drives Up to 100A DC with Parallel N-Channel MOSFETs

Configurable Fuse Protections:

Cell Dead and Severe Over-Voltage Protection (SOVP)
Pack Severe Under-Voltage Protection (SUVP) and SOVP
MOSFET Damage Protection
Self-Diagnostics Protection

Passive Cell Balancing Up to 58mA per Cell:

Can Drive External Balancing Transistors

Additional Features:

Intelligent Open-Wire Detection
Integrated 3.3V and 5V Low-Dropout (LDO) Regulators
Reduced Current Standby Mode
GPIOs Control or Indication
Dedicated Thermistor Inputs
Random Cell Connection Tolerant
Available in a TQFP-48 (7mmx7mm) Package

正在供货产品型号

MP3710DFP-xxxx-T MP3710DFP-0000-T
