MP8697

MP8697

Half-Bridge GaN/MOSFET Driver

详情

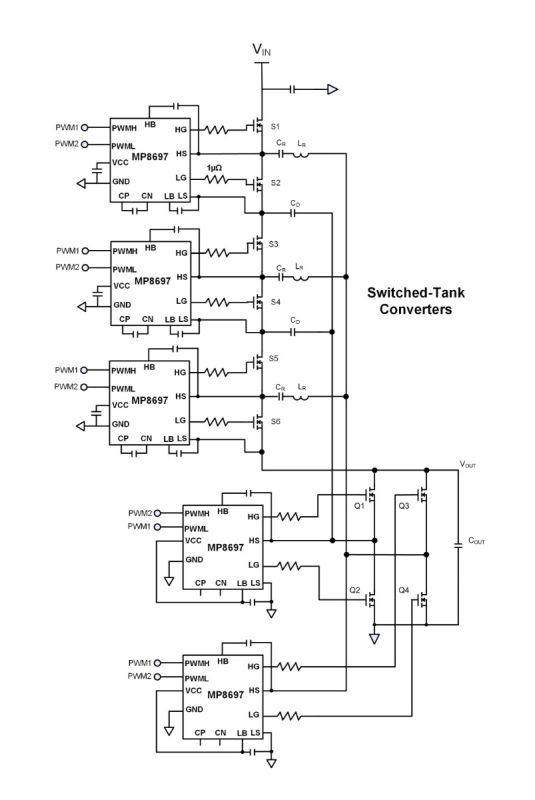

The MP8697 is designed to drive enhancement-mode gallium nitride (GaN) FETs or low gate threshold voltage N-channel MOSFETs in switched-tank converters (STCs). It can also support half-bridge and synchronous applications. The device employs independent high-side (HS) and low-side (LS) pulse-width modulation (PWM) inputs.

The MP8697 employs bootstrap (BST) technology to charge both the HS and LS driver voltage, and can operate up to 100V. The internal charging logic control prevents the HS and LS driver voltages from exceeding the supply voltage (V_CC), which then prevents the gate voltage (V_G) from exceeding the enhancement-mode GaN FETs' maximum gate-source voltage (V_GS) rating.

The extremely low sink resistor maintains the gate in the low state, preventing unintended turn-ons during high switching.

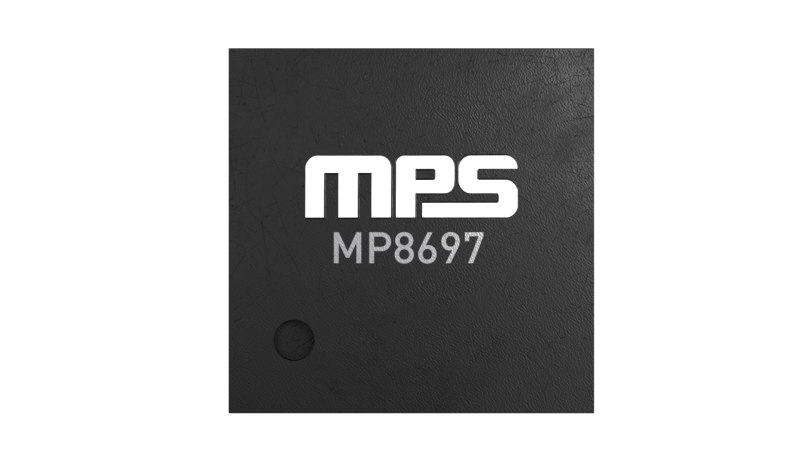

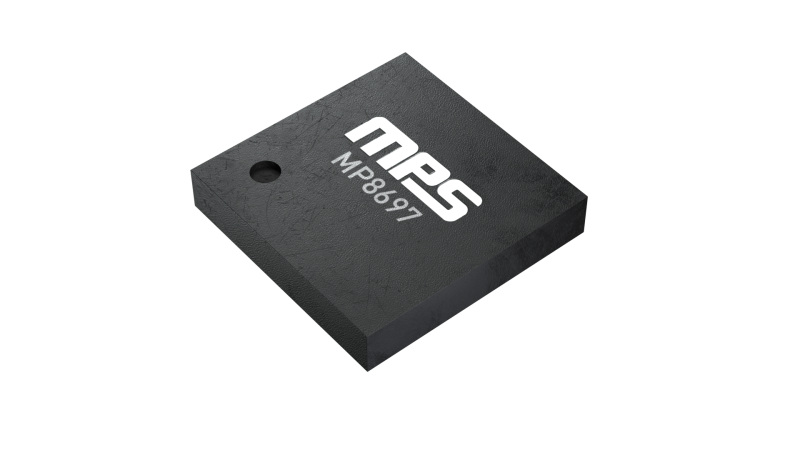

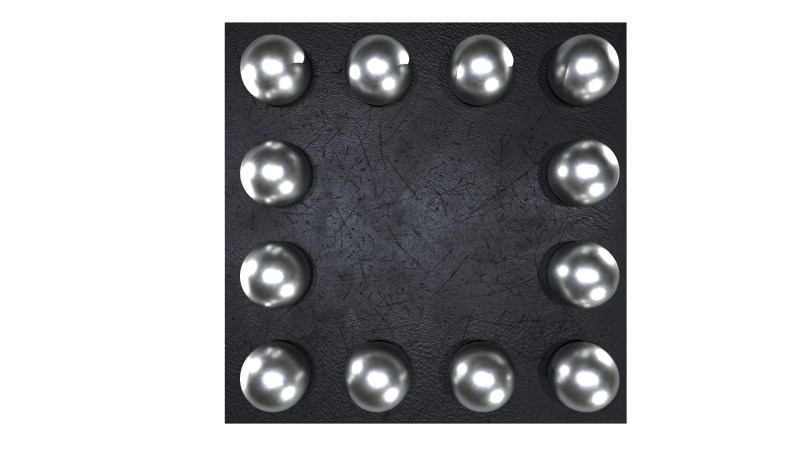

The MP8697 is available in a WLCSP-12 (2mmx2mm) package.

产品特性和优势

Independent High-Side (HS) and Low-Side (LS) Transistor-Transistor Logic (TTL) Inputs
Both HS and LS Drivers Can Be Floated and Operate Up to 100V DC Voltage (V_DC)
3.3V to 5.5V Supply Voltage (V_CC) Range
Internal Bootstrap (BST) V_CC Clamping
0.2Ω/1Ω Pull-Down/Pull-Up Resistors, Respectively
Fast Propagation Times (Typically 10ns)
Excellent Propagation Delay Matching (Typically 1.5ns)
Available in a WLCSP-12 (2mmx2mm) Package
