MAQ600

INL<0.6° (<0.1°)的高精度、高带宽、可配置数字磁性角度传感器,符合 AEC-Q100 认证

MAQ600

NOT RECOMMENDED FOR NEW DESIGNS

INL<0.6° (<0.1°)的高精度、高带宽、可配置数字磁性角度传感器,符合 AEC-Q100 认证

MAQ600 continues to be in production for existing customers. Please consider this alternative for new designs:

MAQ600A

预发布新品

MAQ600A

预发布新品

High-Accuracy, <0.6° (<0.1°) INL, High-Bandwidth, Configurable, Digital Magnetic Angle Sensor, AEC-Q100 Qualified

Features & Benefits

  • <0.6° Error (INL)
  • <0.1° Error (INL) after User Calibration with On-Chip 32-Point Lookup Table
  • Configurable 12-Bit to 15-Bit Absolute Angle Encoder
  • High Bandwidth (e.g. 12kHz at 12.5-Bit Resolution)
  • No Latency
  • Wide 10mT to 100mT Magnetic Field Range
  • Serial Peripheral Interface (SPI) for Digital Angle Readout and Chip Configuration
  • SPI Angle Readout in Daisy Chain Configuration Supported
  • Synchronous Serial Interface (SSI) for Digital Angle Readout
  • Incremental ABZ Quadrature Encoder Interface with Configurable Pulses per Turn (1 to 4096)
  • Incremental UVW Encoder Output
  • Pulse-Width Modulation (PWM) Absolute Output
  • Multi-Turn or Speed Output Option
  • 3.3V Supply
  • 7.5mA Quiescent Current (IAVDD + IDVDD)
  • -40°C to +150°C Operating Temperature

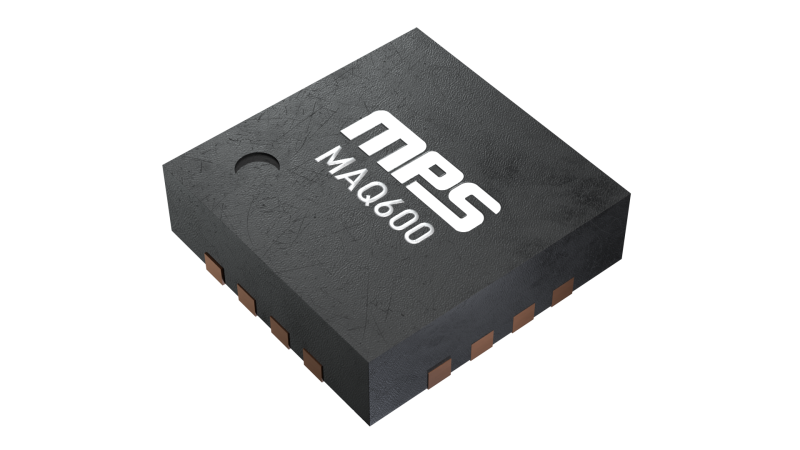

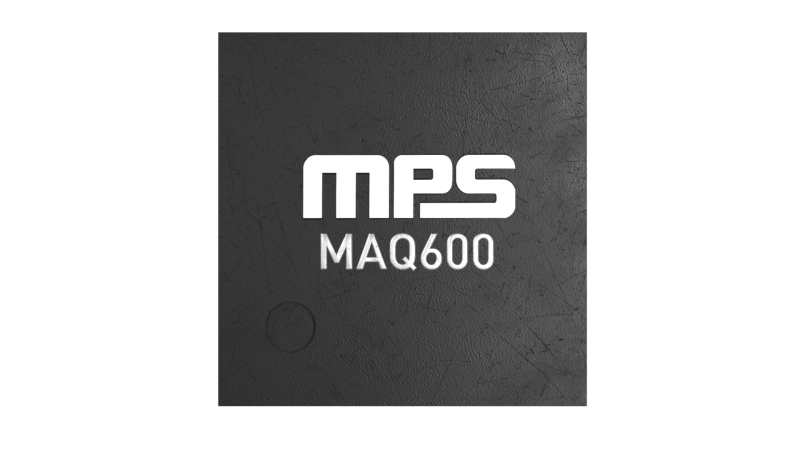

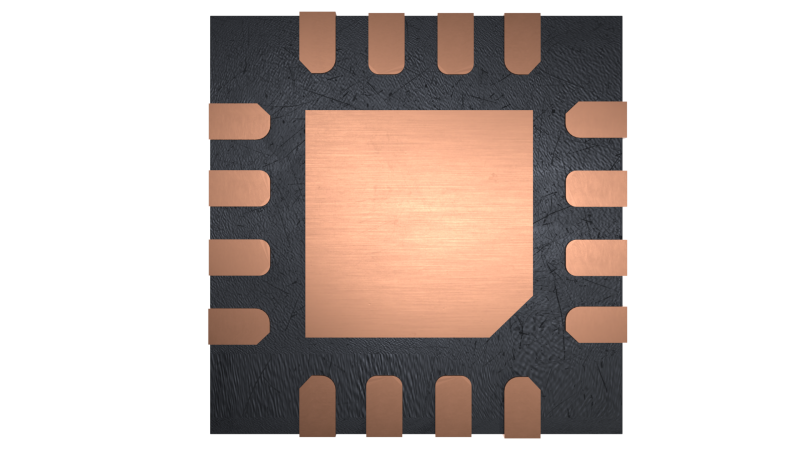

  • Available in a Small QFN-16 (3mmx3mm) Package
  • Available in AEC-Q100 Grade 1

… and many more!

正在供货产品型号

MAQ600GQE-0000-AEC1-Z MAQ600GQE-0000-AEC1-P MAQ600GQE-xxxx-AEC1-Z MAQ600GQE-xxxx-AEC1-P
