MP4433
正在供货产品型号
MP4433GL-Z MP4433GL-P
P&Z的含义
评估工具

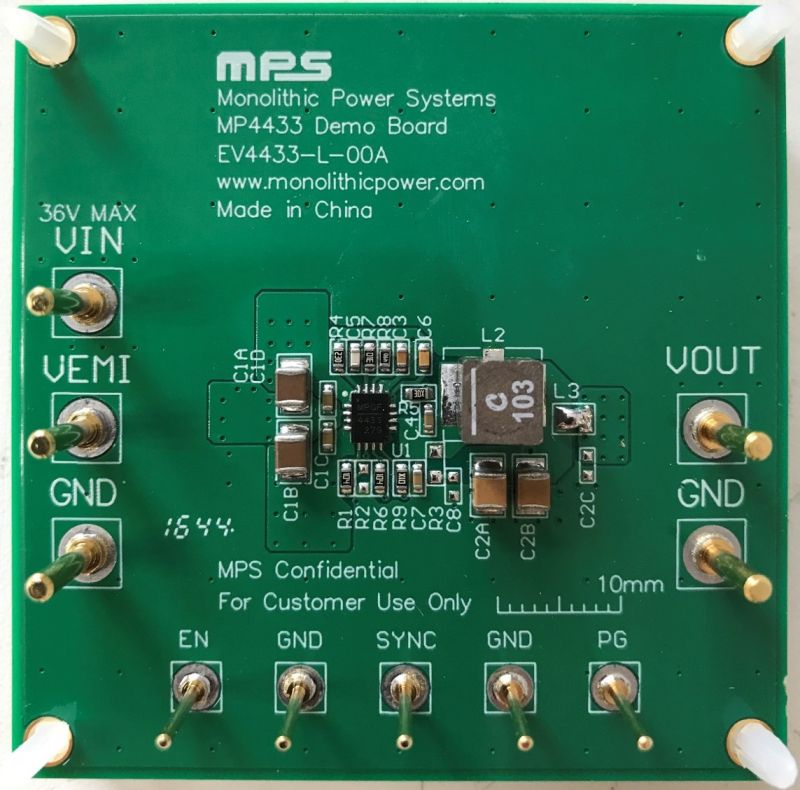

EVQ4433-L-00A Evaluation Kit 36V, 3A, Low Quiescent Current, Synchronous Step-Down Converter Evaluation Board
The EVQ4433-L-00A is an evaluation board designed to demonstrate the capabilities of the MP4433 and MPQ4433. The MPQ4433 is a configurable-frequency (350kHz to 2.5MHz), synchronous, step-down switching regulator with integrated internal high-side and low-side power MOSFETs (HS-FETs and LS-FETs, respectively). It provides up to 3A highly efficient output current (IOUT) with current mode control for fast loop response.
The MPQ4433 employs advanced asynchronous modulation (AAM) mode, which helps to achieve high efficiency under light-load conditions by scaling down the switching frequency (fSW) to reduce the switching and gate driving losses.
The EVQ4433-L-00A is a fully assembled and tested evaluation board, it generates a 5V output voltage (VOUT) at load currents up to 3A from a 5V to 36V input voltage (VIN) range.
推荐电感
塑封电感 0.82µH
低阻抗塑封电感 0.82µH
薄型塑封电感 0.82µH
