MP1641

MP1641

1A, 2.4V to 6V, Synchronous Step-Down Converter with 35µA I_Q and Power Good Indicator in SOT563 Package

详情

The MP1641 is a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. The MP1641 achieves 1A of continuous output current (I_OUT) from a 2.4V to 6V input voltage (V_IN) range with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

The MP1641 is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other low-power systems.

The MP1641 requires a minimal number of readily available, standard, external components and is available in an ultra-small SOT563 (1.6mmx1.6mm) package.

产品特性和优势

Low 35µA Quiescent Current (I_Q)
2.2MHz Switching Frequency (f_SW)
Enable (EN) for Power Sequencing
Up to 1A of Output Current (I_OUT)
Wide 2.4V to 6V Operating Input Voltage (V_IN) Range
0.6V to 6V Output Voltage (V_OUT) Range
±1% Feedback (FB) Accuracy with Room Temperature
±1.5% FB Accuracy with Full Temperature
100% Duty Cycle Operation
Output Discharge
Short-Circuit Protection (SCP) with Hiccup Mode
Over-Temperature Protection (OTP)
Power Good (PG) Indicator
Stable with Low-ESR Ceramic Capacitors
Available in an SOT563 (1.6mmx1.6mm) Package
Pin-to-Pin Compatible with the MP1601 and MP1605 Families
Optimized Performance with MPS Inductor MPL-AL4020 Series

正在供货产品型号

MP1641GTF-Z MP1641GTF-P

P&Z的含义

相关产品

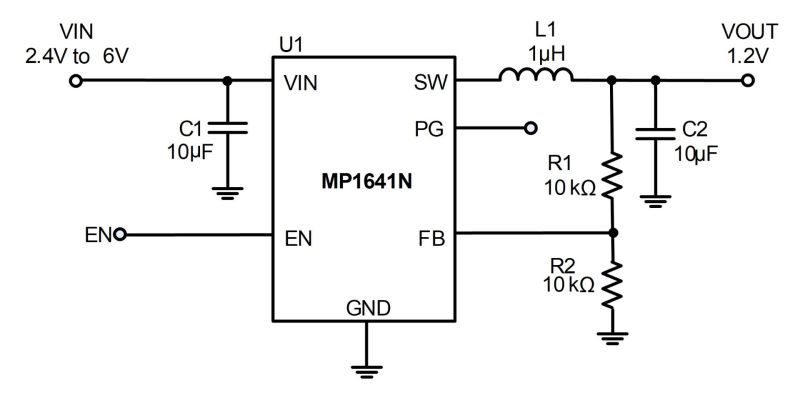

MP1641N 1A, 2.4V to 6V, Synchronous Step-Down Converter with 35µA I_Q in an SOT563 Package

The MP1641N is a monolithic, step-down, switch-mode converter with built-in internal power MOSFETs. The device achieves up to 1A of continuous output current (I_OUT) from a 2.4V to 6V input voltage (V_IN), with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown. It is ideal for a wide range of applications, including high-performance DSPs, wireless power, portable and mobile devices, and other low-power systems.

The MP1641N requires a minimal number of readily available, standard external components, and is available in an ultra-small SOT563 (1.6mmx1.6mm) package.
