5.5V, 4A, Synchronous Step-Down Converter with Low 4.5μA I_Q in SOT583 Package

MPL

详情

MPL

采用MPS电感可优化性能

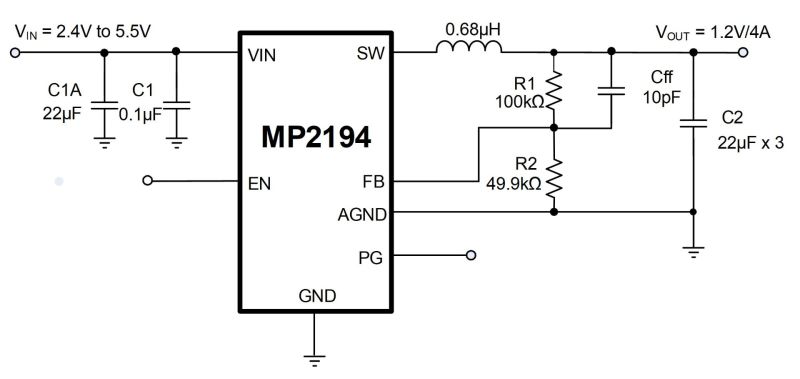

The MP2194 is a monolithic, step-down, switch-mode converter with built-in internal power MOSFETs. It achieves up to 4A of continuous output current (I_OUT) from a 2.4V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V.

The constant-on-time (COT) control scheme provides fast transient response and facilitates loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

The MP2194 is well-suited for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other low-power systems.

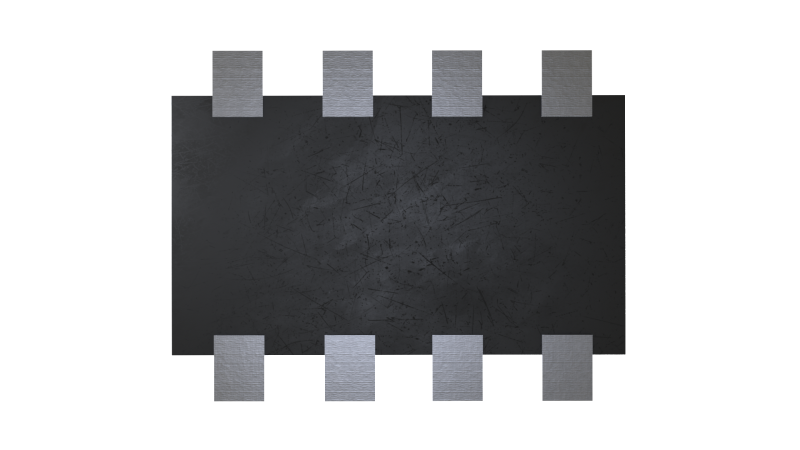

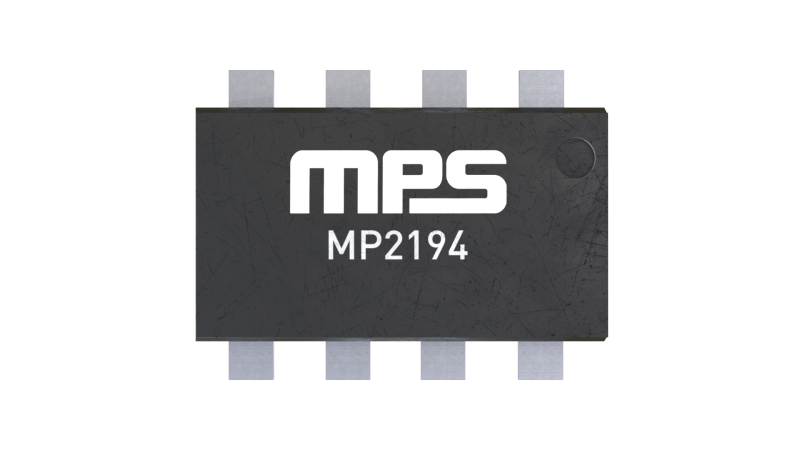

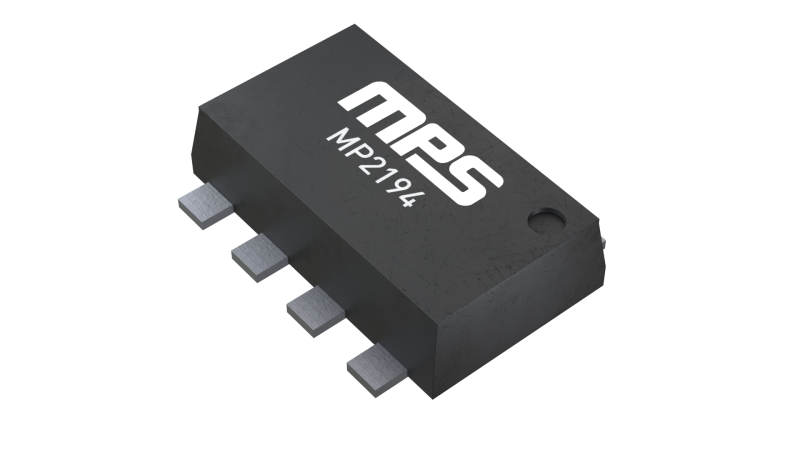

The MP2194 requires a minimal number of readily available, standard external components. It is available in an ultra-small SOT583 package.

产品特性和优势

Wide 2.4V to 5.5V Operating Input Voltage (V_IN) Range
Up to 4A Output Current (I_OUT)
16mΩ and 10mΩ Internal Power MOSFET Switches
Low Quiescent Current (I_Q): 4.5μA Typical
1.25MHz Fixed Switching Frequency (f_SW)
Enable (EN) Function
High Feedback Accuracy:
- ±0.75% at Junction Temperature (T_J) = 25°C
- ±1% at T_J = -40°C to +125°C
Output Discharge Function
Power Good (PG) Indication
Adjustable Output Voltage (V_OUT) from 0.4V
Internal Soft Start (SS)
Pre-Biased Start-Up
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Available in an SOT583 Package

正在供货产品型号

MP2194GTL-Z MP2194GTL-P

P&Z的含义

相关产品

采用MPS电感可优化性能

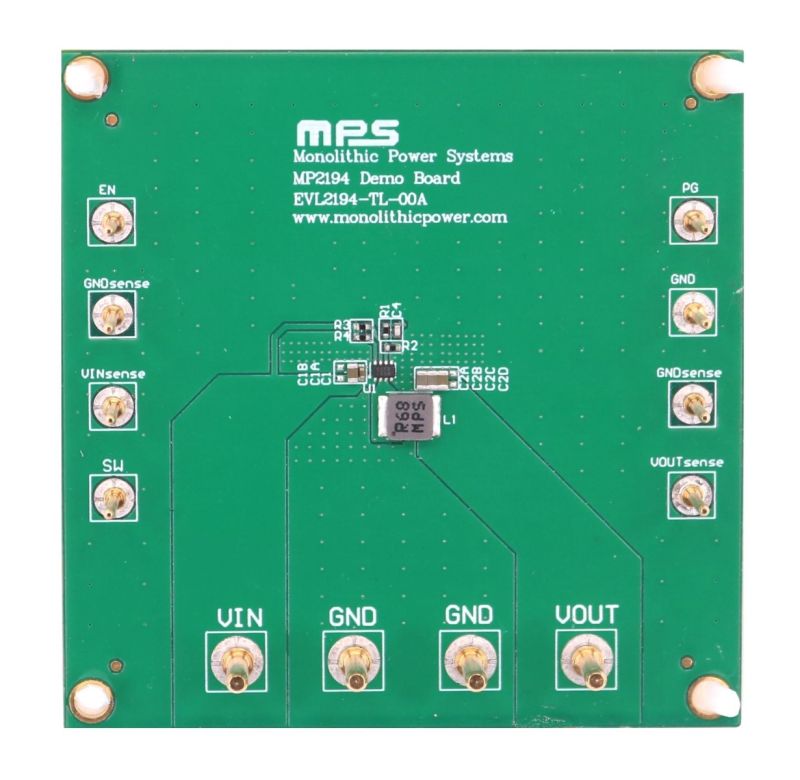

EVL2194-TL-00A 5.5V, 4A, Synchronous Step-Down Converter in SOT583 Package Evaluation Board

MPL

采用MPS电感可优化性能

The EVL2194-TL-00A evaluation board is designed to demonstrate the capabilities of the MP2194, a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. The MP2194 can achieve up to 4A of continuous output current (I_OUT) from a 2.4V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V.

Constant-on-time (COT) control provides fast transient response, easy loop design, and tight output regulation. Full protection features include over-current protection (OCP), current limiting with hiccup mode, and thermal shutdown.

The MP2194 requires a minimal number of readily available, standard external components, and it is available in an ultra-small SOT583 package.
