2A, 2.4V to 6V, Synchronous Step-Down Converter with FCCM in SOT563 Package

详情

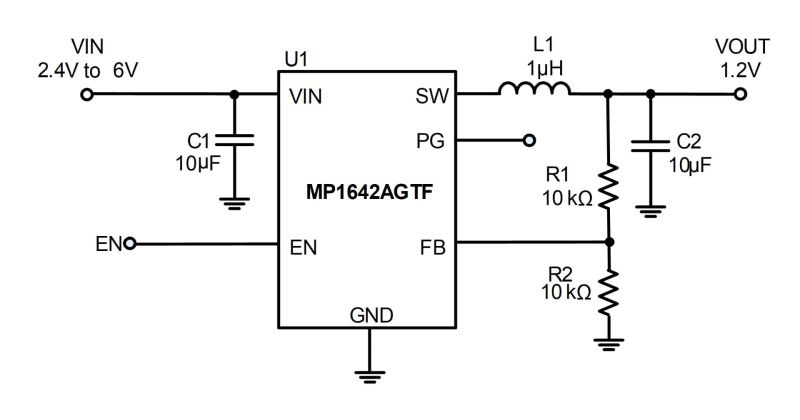

The MP1642A is a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs. The device achieves up to 2A of continuous output current (I_OUT) from a 2.4V to 6V input voltage (V_IN), with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

The MP1642A is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other low-power systems.

The MP1642A requires a minimal number of readily available, standard external components, and is available in an ultra-small SOT563 (1.6mmx1.6mm) package.

产品特性和优势

Forced Continuous Conduction Mode (CCM)
2.2MHz Switching Frequency (f_SW)
Enable (EN) for Power Sequencing
Up to 2A Output Current (I_OUT)
Wide 2.4V to 6V Operating Input Voltage (V_IN) Range
0.6V to 6V Output Voltage (V_OUT) Range
±1% Feedback (FB) Accuracy at Room Temperature
±1.5% FB Accuracy at Full Temperature
100% Duty Operation
Output Discharge
Short-Circuit Protection (SCP) with Hiccup Mode
Over-Temperature Protection (OTP)
Power Good (PG) Indicator (MP1642C)
Stable with Low-ESR Ceramic Capacitors
Available in an SOT563 (1.6mmx1.6mm) Package
Pin-to-Pin Compatible with the MP1601 and MP1605 Families
Optimized Performance with MPS Inductor MPL-AL Series

正在供货产品型号

MP1642AGTF-Z MP1642AGTF-P

P&Z的含义

推荐电感

低阻抗塑封电感 1.0µH

低阻抗塑封电感 1.5µH

低阻抗塑封电感 2.2µH

电感选择工具

基于额定数值进行计算
