MP2869A

MP2869A

Dual-Loop, Digital, 16-Phase Controller with SVI3 Interface for AMD

详情

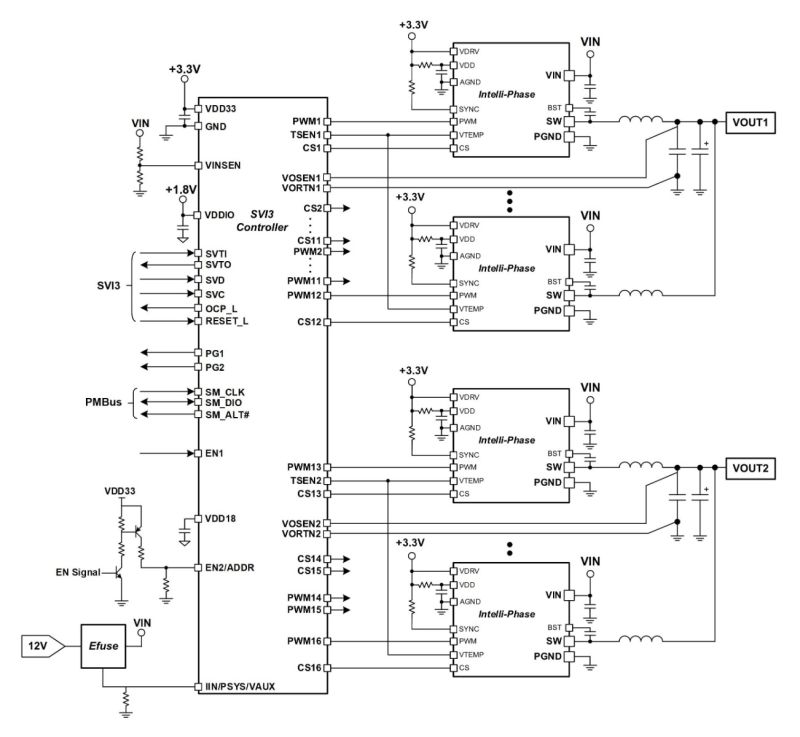

The MP2869A is a dual-rail, digital, multi-phase controller that provides power for AMD SVI3 core power. The device can work with MPS’s Intelli-Phase^TM products to complete the multi-phase voltage regulator (VR) solution with minimal external components. The MP2869A can be configured to maximum 16-phase operation for rail 1, and maximum 8-phase operation for rail 2.

The MP2869A provides an on-chip non-volatile memory (NVM) to store and restore device configurations. Device configurations and fault parameters can be easily configured or monitored via the PMBus/I²C interface. The device can monitor and report the output current (I_OUT) via the current-sensing output of the Intelli-Phase^TM devices.

The MP2869A is based on a unique, digital, multi-phase, nonlinear control to provide fast transient response to load transients with minimal output capacitors. With only one power-loop control method for steady state and load transients, power loop compensation is very easy to configure.

The MP2869A is available in a TQFN-56 (7mmx7mm) package.

产品特性和优势

Up to 16-Phase, 2-Output, Digital Controller
AMD SVI3 (Version 2) Compliant
PMBus/I²C Compliant (1MHz Bus Speed)
Pin-Configurable for PMBus Address
Built-In Non-Volatile Memory (NVM) to Store Configurations
200kHz to 3MHz Switching Frequency (f_SW)
Automatic Loop Compensation
Supports Multi-Configuration for 6 Different Applications
Flexible Pulse-Width Modulation (PWM) Assignment for Two Rails
Automatic Phase-Shedding (APS) to Improve Overall Efficiency
Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
Input Voltage (V_IN), Output Voltage (V_OUT), Current, and Power Monitoring
Regulator Temperature Monitoring
V_IN Under-Voltage Lockout (UVLO), Output Over-Voltage Protection (OVP)/Under-Voltage Protection (UVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with No Action, Latch, or Hiccup Options
Intelli-Phase^TM Fault Diagnosis
Auto-Record Voltage Regulator (VR) Fault Type to NVM
Digital Load-Line Regulation
Overclocking Mode by Adding Offset to V_OUT
Available in a TQFN-56 (7mmx7mm) Package
