Dual-Loop, Digital, 8-Phase Controller with SVI3 Interface

详情

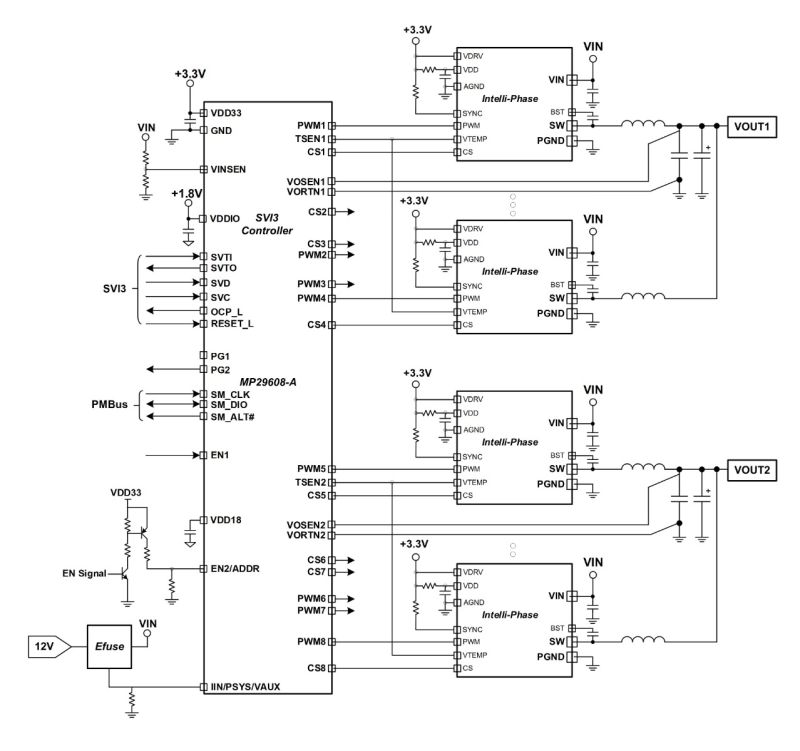

The MP29608-A is a dual-rail, digital, multi-phase controller that provides power for SVI3 core power. The device can work with MPS’s Intelli-Phase^TM products to complete the multi-phase voltage regulator (VR) solution with minimum external components. It can be configured to maximum 8-phase operation for rail 1 and a maximum 4-phase operation for rail 2.

The controller provides an on-chip non-volatile memory (NVM) to store and restore device configurations. Device configurations and fault parameters can be easily configured or monitored via the PMBus/I²C interface. The MP29608-A can monitor and report the output current (I_OUT) by sensing the current-sense output of the Intelli-Phase^TM devices.

It is based on a unique, digital, multi-phase, nonlinear control to provide fast transient response with minimal output capacitors. With only one power-loop control method for both steady state and load transients, power-loop compensation is very easy to configure.

The MP29608-A is available in a TLGA-40 (5mmx5mm) package.

产品特性和优势

Up to 8-Phase, 2-Output, Digital Controller
SVI3 (Version 2) Compliant
PMBus/I²C Compliant (1MHz Bus Speed)
Pin-Configurable PMBus Address
Built-In Non-Volatile Memory (NVM) to Store Configurations
200kHz to 3MHz Switching Frequency (f_SW)
Automatic Loop Compensation
Supports Multi-Configuration for 6 Different Applications
Flexible Pulse-Width Modulation (PWM) Assignment for 2 Rails
Automatic Phase-Shedding (APS) to Improve Overall Efficiency
Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
Input (V_IN) and Output Voltage (V_OUT), Current, and Power Monitoring
Regulator Temperature Monitoring
V_IN Under-Voltage Lockout (UVLO), Output Over-Voltage Protection (OVP)/Under-Voltage Protection (UVP), Over-Current Protection (OCP), Over-Temperature Protection (OTP) with No Action, Latch-Off, or Hiccup Options
Intelli-Phase^TM Fault Diagnosis
Voltage Regulator (VR) Auto-Records Fault Type to the NVM
Digital Load-Line Regulation
Overclocking Mode by Adding Offset to V_OUT
Available in a TLGA-40 (5mmx5mm) Package
