16V, 30A, Scalable, Digital, Synchronous Step-Down Converter with PMBus

详情

The MP8796K is a fully integrated, PMBus-compliant, high-frequency, synchronous buck converter. The MP8796K offers a compact solution that achieves up to 30A of output current (I_OUT) per phase, with excellent load and line regulation across a wide input supply range. It operates at high efficiency across a wide I_OUT load range and can be paralleled for high-current applications.

The MP8796K adopts MPS's proprietary, multi-phase constant-on-time (MCOT) control, which provides fast transient response and facilitates loop stabilization. The PMBus interface provides converter configurations and monitors key parameters.

Fully integrated protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP).

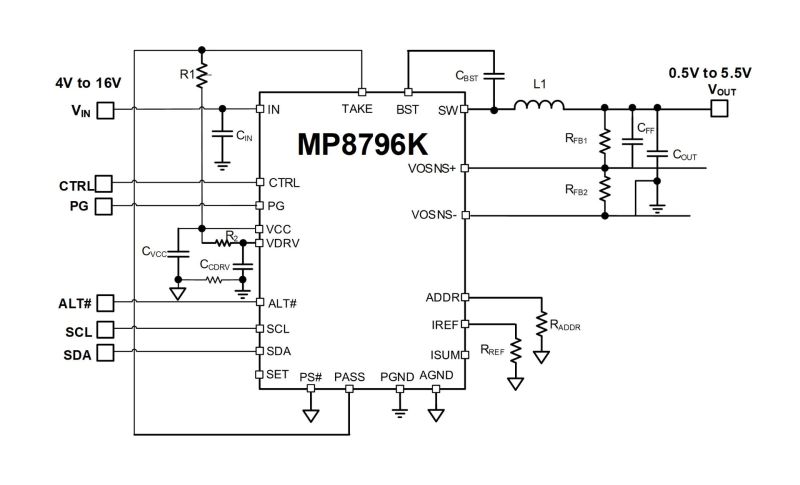

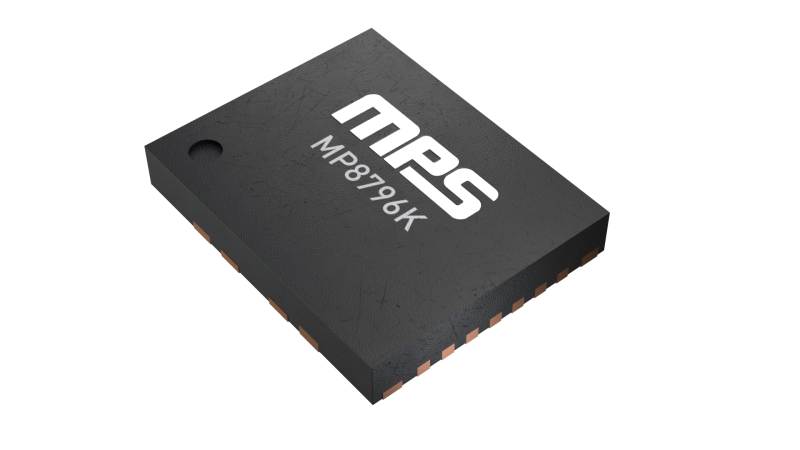

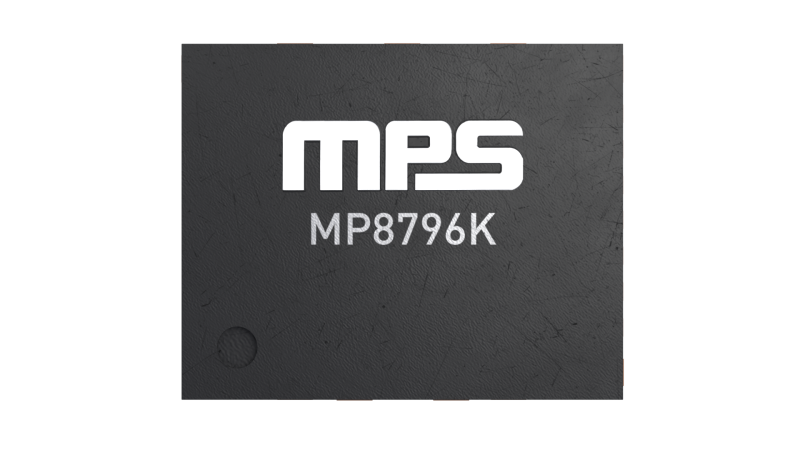

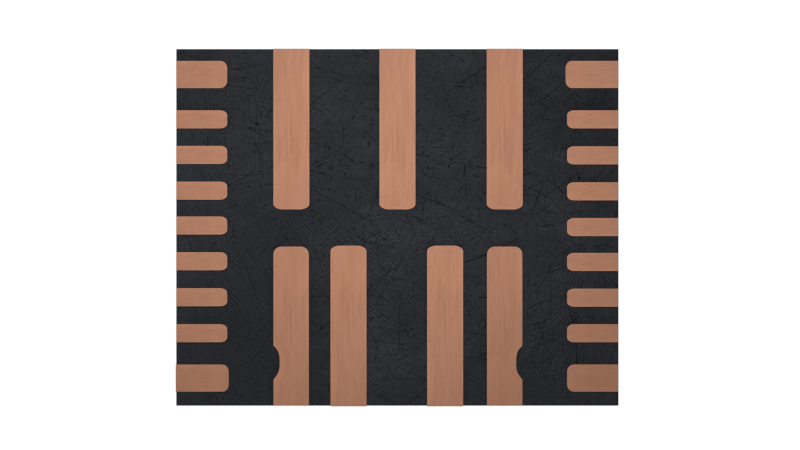

The MP8796K requires a minimal number of readily available, external components, and is available in a TQFN-25 (4mmx5mm) package.

产品特性和优势

Wide Input Voltage (V_IN) Range:
- 3.1V to 16V V_IN with External 3.3V VCC Voltage (V_CC)
- 4V to 16V V_IN with Internal V_CC
Output Adjustable from 0.5V to 0.9 x V_IN, Up to 5.5V Max
30A Continuous Output Current (I_OUT)per Phase
Scalable Multi-Phase Operation
Lossless, Accurate On-Die Current Sensing
Auto-Compensation with Adaptive Multi-Phase Constant-On-Time (MCOT) for Ultra-Fast Transient Response
Telemetry Readback Including V_IN, Output Voltage (V_OUT), I_OUT, Temperature, and Faults
V_OUT True Remote Sense
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations
PMBus 1.3 Compliant
Configurable via the PMBus:
- V_OUT
- Soft-Start Time
- Switching Frequency (f_SW): 400kHz, 600kHz, 800kHz, and 1000kHz
- Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Over-Temperature Protection (OTP) Limits with Options for Hiccup or Latch-Off Mode
- Ramp Compensation
Available in a TQFN-25 (4mmx5mm) Package

正在供货产品型号

MP8796KGVT-xxxx-Z MP8796KGVT-xxxx-P MP8796KGVT-0000-Z MP8796KGVT-0000-P MP8796KGVT-3333-Z MP8796KGVT-3333-P

P&Z的含义

相关产品

EVL8796K-V-1PHASE-00A 16V, 30A, Scalable, Digital, Synchronous Step-Down Converter Evaluation Board

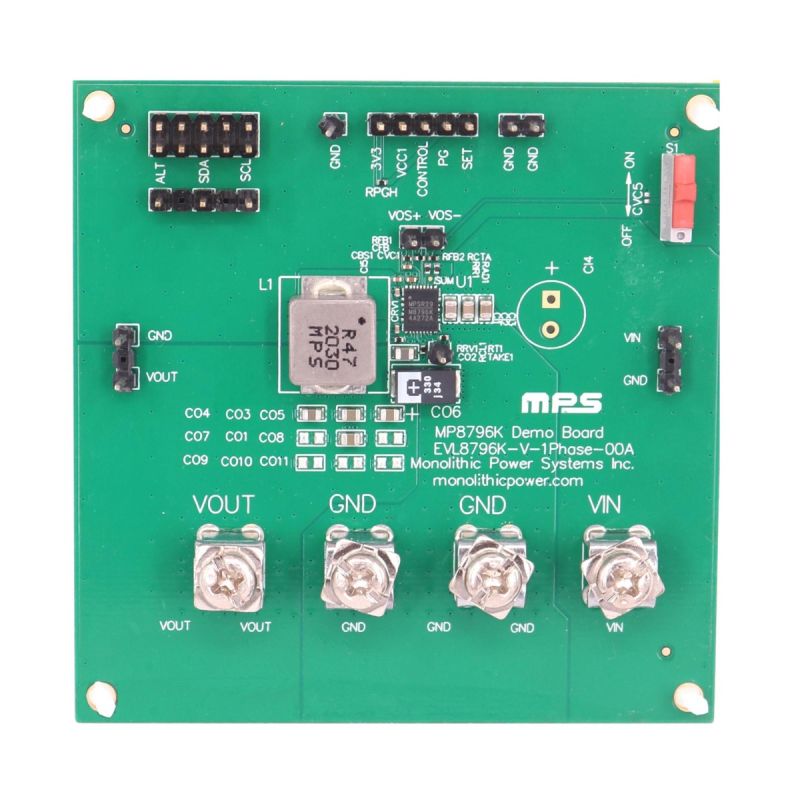

The EVL8796K-V-1PHASE-00A is an evaluation board designed to demonstrate the capabilities of the MP8796K, a fully integrated, high-efficiency, digital, synchronous step-down converter. It can deliver up to 30A of continuous output current (I_OUT), with excellent load and line regulation across a wide input voltage (V_IN) range. It achieves high efficiency across a wide I_OUT range.

The MP8796K features MPS’s proprietary multi-phase constant-on-time (MCOT) control, which provides fast transient response and eases loop stabilization. The MCOT control scheme also allows multiple MP8796K devices to be connected in parallel, with excellent current sharing and phase interleaving for high-current applications.

The EVL8796K-V-1PHASE-00A can be turned on and off via a remote on/off input (CTRL), which is referenced to ground (GND). This input is compatible with commonly used logic devices.

It is recommended to read the datasheet for the MP8796K prior to making any changes to the EVL8796K-V-1PHASE-00A.
