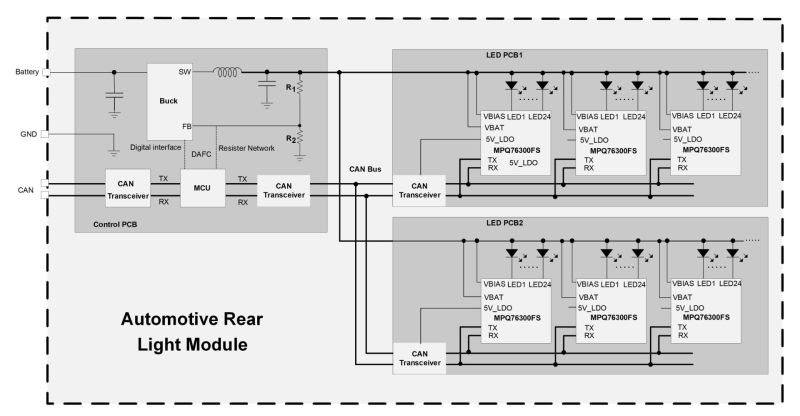

The MPQ76300FS-AEC1 is a 24-channel, smart linear LED driver. Each channel is rated for up to 100mA of current, and 32 ICs can be cascaded together to create a 768-channel solution. The device is optimized for animated or dynamic lighting applications. It employs a 12-bit pulse-width modulation (PWM) dimming register and a 6-bit analog dimming register for each channel, enabling individual channel control. The 24 channels can be assigned to up to 4 different groups with independent dimming frequencies and duty cycles. The LED current (I_LED) ramp rate and phase shift between channels during PWM dimming can also be digitally configured. The MPQ76300FS-AEC1 is designed to function across distant PCBs with a robust high-speed UART over CAN interface.

The MPQ76300FS-AEC1 features digital adaptive feedback control (DAFC) to maximize system efficiency and thermal performance. An integrated 8-bit analog-to-digital converter (ADC) can sense the LED string voltage (V_LED) so that the pre-regulator's or buck voltage regulator's output voltage can be adjusted based on this sensed voltage. Voltage across the channels can be minimized to a value based on the headroom voltage.

Built-in self-testing (BIST) is implemented to perform self-diagnosis on critical analog and logic functions. It is developed under MPS's advanced MPSafe^TM Functional Safety Product Development process, which has been independently certified to meet ISO 26262 guidelines. Protection features include LED open and short protection, ISET pin open and short protection, and over-temperature protection (OTP). If a fault condition occurs, the fault indicator (/FS) pulls low, and a matching fault register is set. A limp home state indicates if communication is lost.

The MPQ76300FS-AEC1 is available in a TQFP-48 (7mmx7mm) package, and is AEC-Q100 qualified.
