MPQ8835A-AEC1
36V, 6A, Four-Switch, Synchronous Buck-Boost Converter with I2C Interface, AEC-Q100 Qualified
Session textval
Session Titefor popup
详情

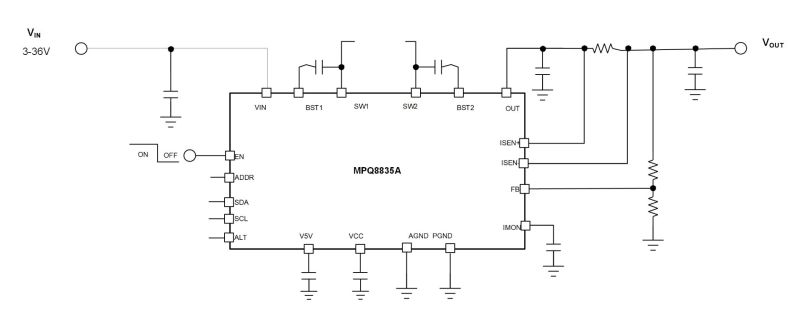

The MPQ8835A-AEC1 is a 36V synchronous four-switch buck-boost converter with integrated MOSFETs. The wide 3V to 36V input voltage (VIN) range makes the device well-suited for multi-purpose automotive and industrial applications.
The device can deliver up to 6A output current (IOUT) at certain input supply ranges with excellent efficiency. The fully integrated four-switch configuration allows the chip to flexibly change the converter topology between buck, boost, and buck-boost mode. This optimizes performance and efficiency with input voltages that are above, below, or even equal to the output voltage (VOUT). It also ensures seamless transitions between the adjacent operational regions.
The I2C interface and one-time programmable (OTP) memory provide flexibility for configurable features. The various parameters can be adapted by writing the settings in the device in such a way that no hardware changes are required. The diagnostic functions can also be read by the I2C bus.
The switching frequency (fSW) can be configured as 280kHz, 420kHz, 600kHz, or 1MHz. In addition, the configurable frequency spread spectrum (FSS) function can dither fSW periodically for improved EMI performance.
Robust fault protections include input under-voltage lockout (UVLO), input over-voltage protection (OVP), cycle-by-cycle peak current limiting, output OVP, output short-circuit protection (SCP), and thermal shutdown.
The MPQ8835A-AEC1 requires a minimum number of readily available, standard external components. The MPQ8835A-AEC1 is available in a small QFN-19 (4mmx5mm) with wettable flanks, and it is available in AEC-Q100 Grade 1.
-
显示更多
显示较少
产品特性和优势
- Designed to Handle Automotive Transients:
- 3V to 36V Wide Input Voltage (VIN) Range
- Load Dump Up to 40V
- Cold Crank Down to 3V
- 1V to 24V Output Voltage (VOUT) Range
- Up to 6A of Continuous Output Current (IOUT)
- Single-Channel, Four-Switch, Synchronous Buck-Boost Configuration:
- Internal Buck High-Side Power MOSFET (HS-FET)
- Internal Buck Low-Side (LS) Synchronous Rectifier
- Internal Boost Low-Side Power MOSFET (LS-FET)
- Internal Boost High-Side (HS) Synchronous Rectifier
- Extends Vehicle Battery Life:
- 1μA Shutdown Current
- 130μA Quiescent Current (IQ)
- Easy-to-Optimize Efficiency and EMI Performance:
- Configurable 280kHz, 420kHz, 600kHz, or 1MHz Switching Frequency (fSW)
- Switching Frequency Spread Spectrum (FSS)
- Configurable Switching Speed
- Rich Protections and Diagnostics:
- Input Under-Voltage Lockout (UVLO)
- Cycle-by-Cycle Current Limiting
- Over-Current Protection (OCP)
- Output Over-Voltage Protection (OVP)
- Input Over-Voltage Protection (OVP)
- Output Under-Voltage Protection (UVP)
- Over-Temperature Shutdown
- Additional Features:
- Integrated 5V/60mA LDO to Supply External Microcontroller Unit (MCU)
- I2C-Configurable Reference Voltage (VREF) Range: 0.1V to 2.147V with 1mV Resolution
- I2C-Configurable ALT Indicates Faults and Events
- Configurable I2C Slave Address
- Line Drop Compensation
- Enable (EN) Shutdown Passive Discharge
- Accurate Output Current Monitor
- Selectable Automatic Pulse-Frequency Modulation (PFM) Mode/Pulse-Width Modulation (PWM) Mode and Forced PWM Mode
- One-Time Programmable (OTP) Memory for Default Parameter Setting
- Available in a QFN-19 (4mmx5mm) Package
- Available with Wettable Flanks
- Available in AEC-Q100 Grade 1
- Functional Safety System Design Capable:
- MPSafeTM Compatible - Functional Safety Supporting Document Available

正在供货产品型号
MPQ8835AGVE-xxxx-AEC1-Z MPQ8835AGVE-xxxx-AEC1-P MPQ8835AGVE-0000-AEC1-Z MPQ8835AGVE-0000-AEC1-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
