35V, 3-Phase, Sensorless BLDC Motor Driver with Configurable Gate Driver, Non AEC-Q100 Version

详情

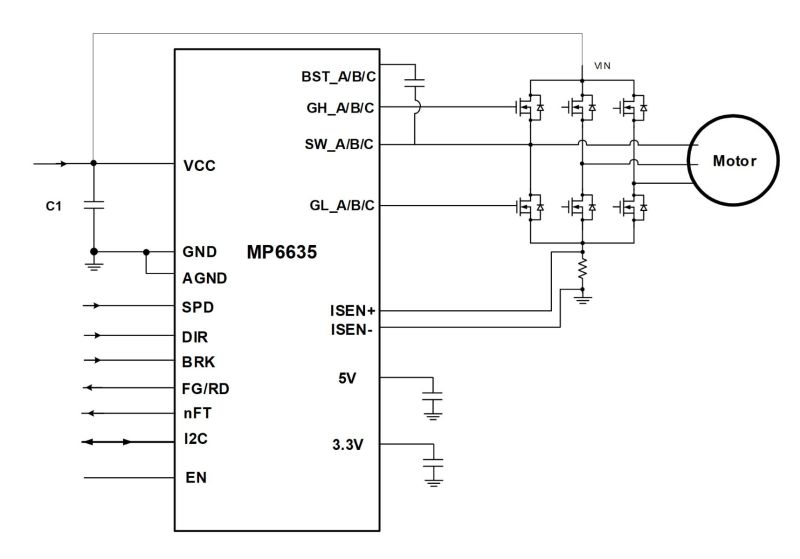

The MP6635 is a three-phase, sensorless, brushless DC (BLDC) motor driver with a configurable gate driver. It features sensorless field-oriented control (FOC) for improved efficiency and low vibration. The input voltage (V_IN) ranges between 6V and 35V.

The MP6635 controls the motor speed through the pulse-width modulation (PWM) signal with a 50Hz to 100kHz PWM input frequency. The device also supports DC input speed control.

The MP6635 provides a rotational speed detector feature. The rotational speed detector (the FG/RD pin) is the output of an open-drain output. In addition, direction control is achieved through the DIR pin input.

The I²C interface is available for internal parameter configuration via the non-volatile memory (NVM).

Rich protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, phase-loss protection, over-current protection (OCP), and thermal shutdown protection.

The MP6635 is available in a wettable-flank QFN-28 (5mmx5mm) package.

产品特性和优势

6V to 35V Operating Input Voltage (V_IN) Range
Sensorless Field-Oriented Control (FOC)
Supports a 0.1V to 3.1V DC Input, or 50Hz to 100kHz Pulse-Width Modulation (PWM) Input
Starting Corner Duty Set with Hysteresis
Curve Configurable
Selectable Open-Loop or Closed-Loop Speed
Configurable Soft Accelerate Time
Configurable Align Time
Direction Control
Power-Save Mode
24kHz PWM Output Frequency
Configurable Gate Driver Current, with a Maximum Output Up to 1A/0.7A
Over-Voltage Protection (OVP)
Phase Loss Protection
Locked-Rotor Protection
Selectable FG and RD Outputs
Available in a Wettable-Flank QFN-28 (5mmx5mm) Package

正在供货产品型号

MP6635GUE-xxxx-Z MP6635GUE-xxxx-P MP6635GUE-0000-Z MP6635GUE-0000-P

P&Z的含义

相关产品

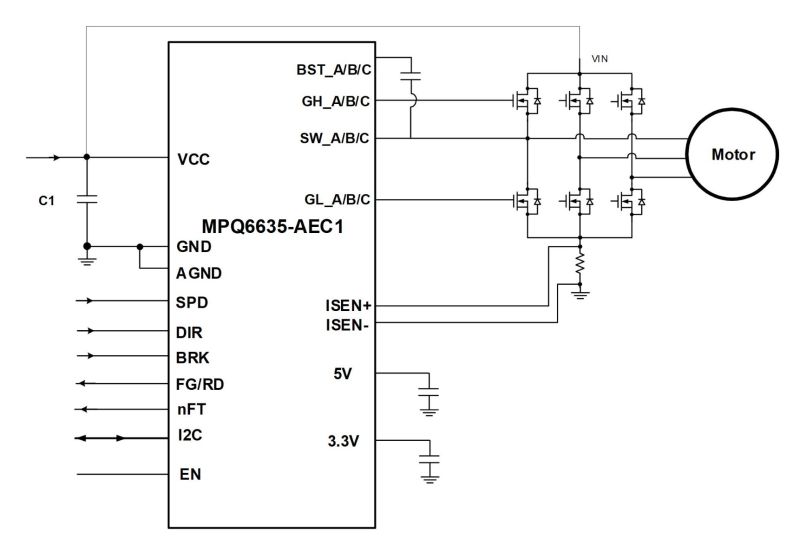

MPQ6635-AEC1 35V, 3-Phase, Sensorless BLDC Motor Driver with Configurable Gate Driver

The MPQ6635-AEC1 is a three-phase, sensorless, brushless DC (BLDC) motor driver with a configurable gate driver. It features sensorless field-oriented control (FOC) for improved efficiency and low vibration. The input voltage (V_IN) ranges between 6V and 35V.

The MPQ6635-AEC1 controls the motor speed through the pulse-width modulation (PWM) signal with a 50Hz to 100kHz PWM input frequency. The device also supports DC input speed control.

The MPQ6635-AEC1 provides a rotational speed detector feature. The rotational speed detector (the FG/RD pin) is the output of an open-drain output. In addition, direction control is achieved through the DIR pin input.

The I²C interface is available for internal parameter configuration via the non-volatile memory (NVM).

The MPQ6635-AEC1 is available in a wettable-flank QFN-28 (5mmx5mm) package, and is available in AEC-Q100 Grade 1.
