MPM3695-15

MPM3695-15

16V Input, Continuous 15A Power Module

详情

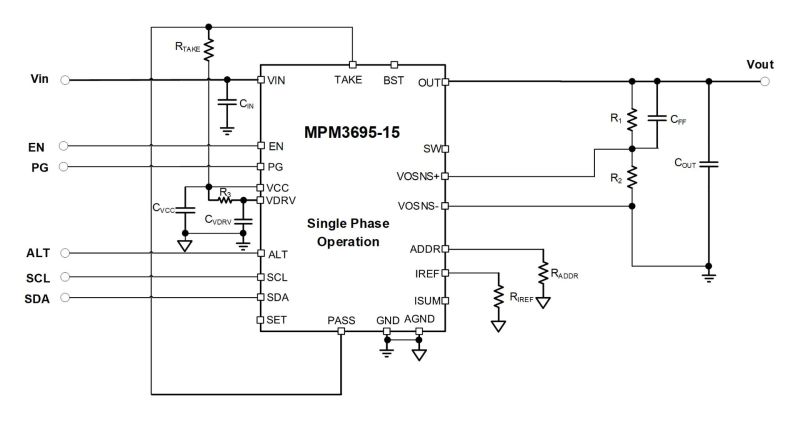

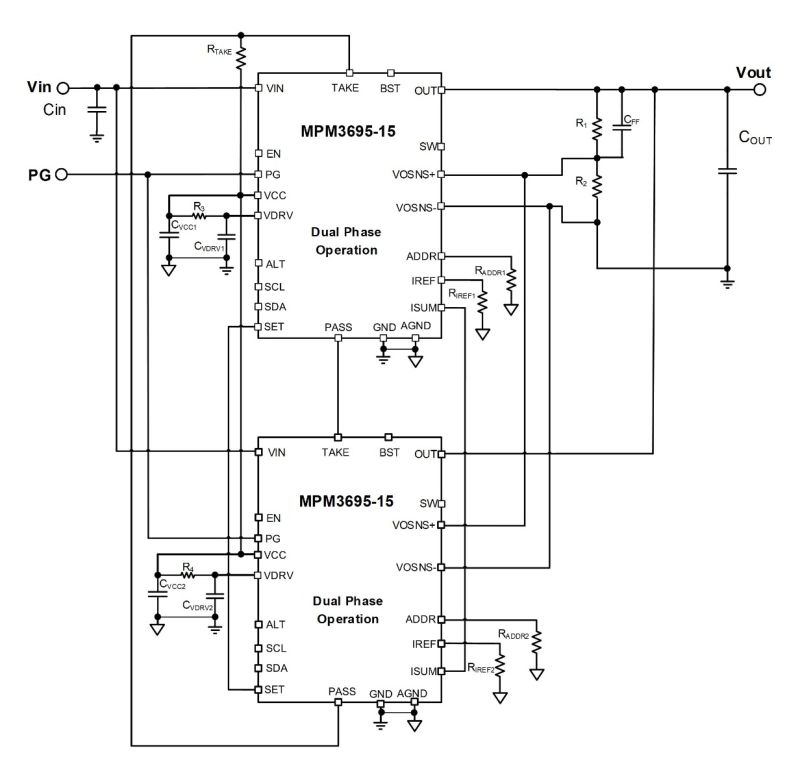

The MPM3695-15 is a scalable, fully integrated power module with a digital interface. The MPM3695-15 offers a complete power solution that achieves up to 15A of continuous output current (I_OUT), with excellent load and line regulation across a wide input voltage (V_IN) range. It operates with high efficiency across a wide load range and can be paralleled to deliver a higher load current.

The device adopts MPS’s proprietary, multi-phase constant-on-time (MCOT) control, which provides ultra-fast transient response and simple loop compensation. The digital interface enables module configurations and monitoring of key parameters.

It features full protection features, including over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP).

The MPM3695-15 requires a minimal number of readily available external components, and is available in an ECLGA-29 (5mmx6mmx2.9mm) package.

产品特性和优势

Wide Input Voltage (V_IN) Range:
- 3V to 16V V_IN with External VCC Voltage (V_CC) and Power Shutdown until V_IN Drops below 2.75V
- 4V to 16V V_IN with Internal V_CC
0.35V to 2V Output Voltage (V_OUT) Range
15A Continuous Output Current (I_OUT)
Auto-Interleaving for Multi-Phase Operation
Auto-Compensation with Adaptive Multi-Phase Constant-On-Time (MCOT) Control for Ultra-Fast Transient Response
±1% Reference Voltage (V_REF) Accuracy at -40°C to +125°C
True V_OUT Remote Sense
Telemetry Readback including V_IN, V_OUT, I_OUT, Temperature, and Faults
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations
Configurable via the Digital Interface:
- Current Limit
- Pulse-Skip Mode (PSM) or Continuous Conduction Mode (CCM) Selection
- Soft-Start Time (t_SS)
- Switching Frequency (f_SW)
- Fault Limits
Available in an ECLGA-29 (5mmx6mmx2.9mm) Package
