High-Accuracy, High-Integration Analog Front-End for Photonics Control

详情

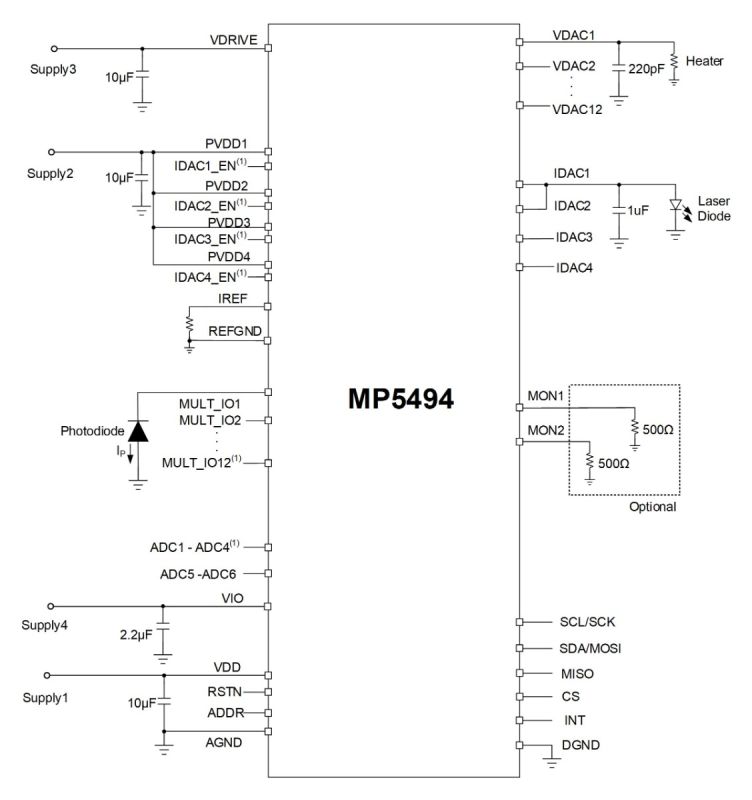

The MP5494 is a high-accuracy, high-integration analog front-end for photonics control. It integrates 4-channel, 12-bit current sources (IDACs); 12-channel, 12-bit configurable voltage outputs (VDACs); 12-channel multi-function input/outputs (I/Os) for voltage and current monitor input; and a 6-channel voltage analog-to-digital converter (ADC) input.

The IDACs provide a 300mA current source in each channel for laser diode driving, and the VDACs can provide configurable voltage for heaters with up to ±30mA of current capability. The photodetector (MPD) current monitor function can be supported by the multi-function I/Os, which feature selectable current-source and current-sink modes.

The MP5494 integrates a 12-bit ADC that can be selected to monitor the 12-channel multi-function I/O current or voltage, ADC1 through ADC6 voltage, IDAC1 through IDAC4 voltage, or the 4 power sources' voltages.

The MP5494 requires a minimal number of external components and is available in a space-saving WLCSP-56 (3.6mmx3.5mm) package.

产品特性和优势

4-Channel, 12-Bit Current Sources (IDACs):
- Up to 300mA per Channel
- Channel Parallel Mode for Up to 1200mA Current Source
- Separate EN Pin for Each Channel with Fast On/Off Control
- 120mV Voltage Drop at 200mA
12-Channel, 12-Bit Voltage Sources (VDACs):
- 0V to 2.5V or 0V to 5V Range Options
- ±30mA Current Sink/Source Capability

12-Channel, Multi-Function Input-Output (I/O) for Photodetector (MPD) Monitor:

Supports Sink/Source Current Monitor
Configurable Pin Regulation Voltage

12-Bit Integrated Analog-to-Digital Converter (ADC) for Voltage and Current Monitoring

6-Channel Voltage ADC Input

2.9V to 5.5V Operating Voltage Range

1MHz I²C Interface with 7 Selectable Target Addresses

10MHz SPI Interface

Available in a WLCSP-56 (3.6mmx3.5mm) Package
