MPQ2183A-AEC1

MPQ2183A-AEC1

6V, 1A to 3A, 2.5MHz, Fixed-Output, Synchronous Step-Down Converter with FSS, AEC-Q100 Qualified

详情

The MPQ2183A-AEC1 family is a family of monolithic, step-down switch-mode converters with built-in internal power MOSFETs. The family provides 1A to 3A of continuous output current (I_OUT) from a 2.5V to 6V input voltage (V_IN) range, with excellent load and line regulation.

Constant-on-time (COT) control provides fast transient response and facilitates loop stabilization.

Fault protections include cycle-by-cycle current limiting and thermal shutdown.

The MPQ2183A-AEC1 is ideal for a wide range of applications, including automotive infotainment systems, clusters, and telematics.

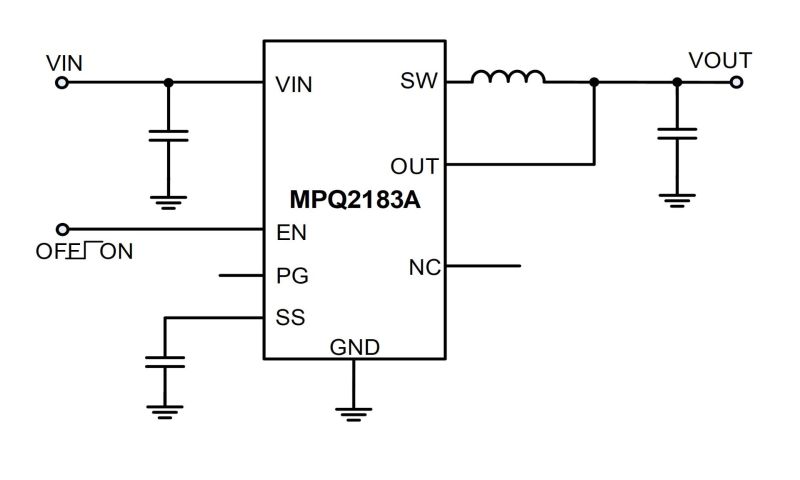

The MPQ2183A-AEC1 requires a minimal number of readily available, standard external components, and is available in an ultra-small QFN-8 (1.5mmx2mm) package. It is available in AEC-Q100 Grade 1.

产品特性和优势

Designed for Automotive Applications:
- Wide 2.5V to 6V Operating Input Voltage (V_IN) Range
- 1A to 3A Continuous Output Current (I_OUT) Version in Pin-Compatible Family
- 1% Output Accuracy
- Junction Temperature (T_J) Operation from -40°C to +150°C
- Available in AEC-Q100 Grade 1
Increased Battery Life:
- Advanced Asynchronous Modulation (AAM) Mode for Increased Efficiency under Light-Load Conditions
- 21μA Sleep Mode Quiescent Current (I_Q)
High Performance for Improved Thermals
