MPQ3414C-AEC1

MPQ3414C-AEC1

1.5A, 2.2MHz, 5V_OUT, 52μA I_Q, Synchronous Step-Up Converter with Output Disconnect, AEC-Q100 Qualified

详情

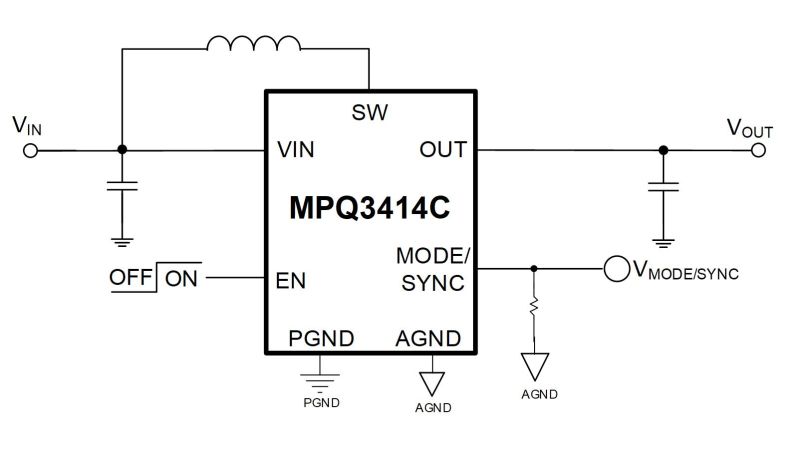

The MPQ3414C-AEC1 is a high-efficiency, synchronous, current-mode step-up converter with output disconnect.

The MPQ3414C-AEC1 can start up from an input voltage (V_IN) as low as 1.8V, while also providing inrush current limiting and output short-circuit protection (SCP). The integrated P-channel synchronous rectifier (SR) improves efficiency and eliminates the need for an external Schottky diode. If the MPQ3414C-AEC1 shuts down, then the P-channel MOSFET disconnects the output from the input. Output disconnect discharges the output completely, which allows the MPQ3414C-AEC1 to draw a shutdown current (I_SD) below 1μA during shutdown.

The 2.2MHz fixed switching frequency (f_SW) allows for the use of small external components. f_SW can be synchronized to an external source from 2MHz to 2.5MHz. Internal compensation and soft start (SS) reduce the number of external components required. These features provide a compact solution for a wide current load range.

The MPQ3414C-AEC1 features an integrated power MOSFET that supports up to 5V of output voltage (V_OUT), with up to 1A of average output current (I_OUT).

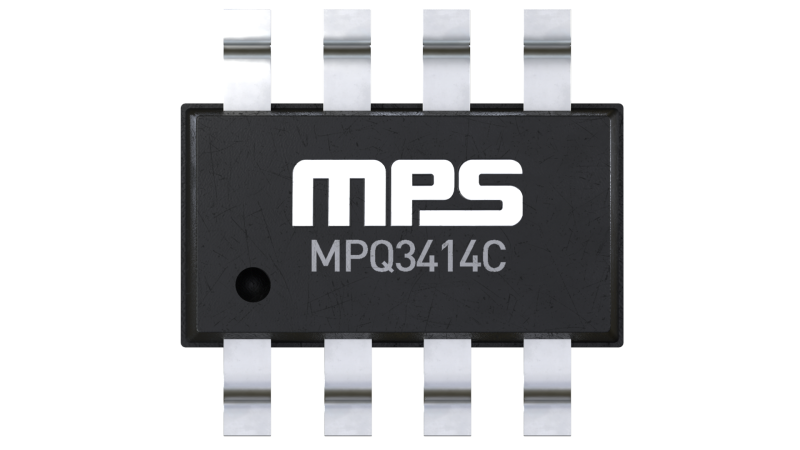

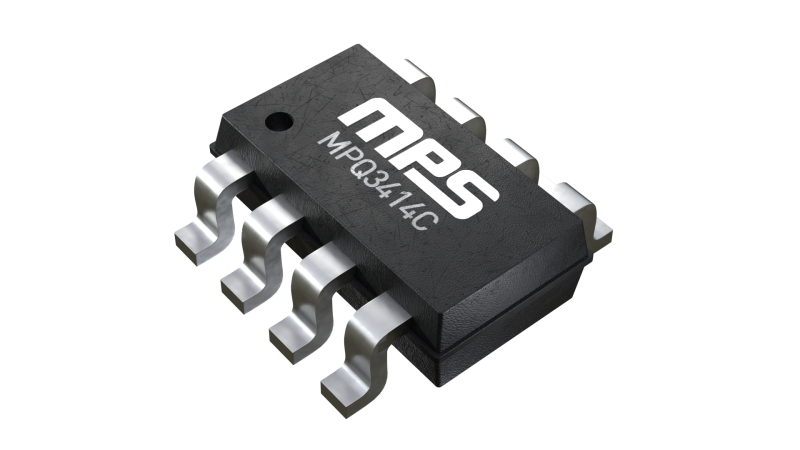

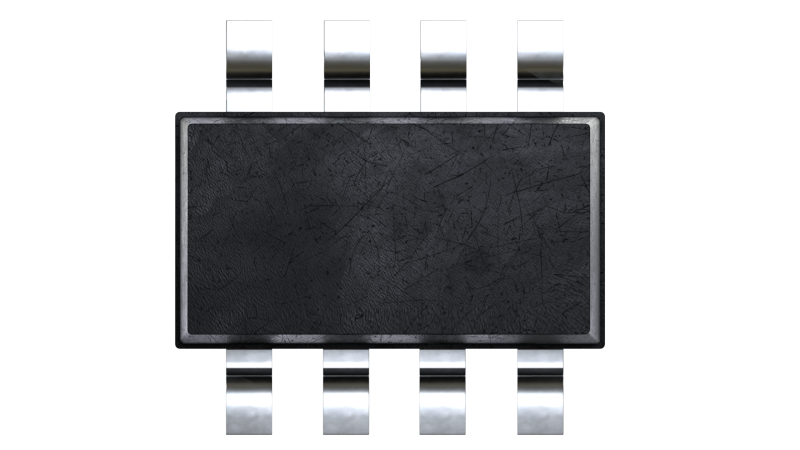

The MPQ3414C-AEC1 requires a minimal number of standard external components, and is available in a compact TSOT23-8 package. It is available in AEC-Q100 Grade 1.

产品特性和优势

Designed for Automotive Applications:
- 1.8V to 4V Input Voltage (V_IN) Range
- Fixed 5V Output Voltage (V_OUT)
- Up to 1A of Average Output Current (I_OUT)
- Available in AEC-Q100 Grade 1
Increases Battery Life:
- 52μA Supply Current (I_Q)
- <1μA Shutdown Current (I_SD)
- Output Disconnect
- Selectable Advanced Asynchronous Modulation (AAM) Mode or Forced Continuous Conduction Mode (FCCM) under Light Loads
- Up to 95% Efficiency

Reduces Board Size and BOM:

2.2MHz Fixed Switching Frequency (f_SW)
Small External Components
80mΩ/70mΩ Internal Power MOSFETs
Available in a TSOT23-8 Package

Additional Features:

Internal Synchronous Rectifier (SR)
Internal Compensation, Inrush Current Limiting, and Internal Soft Start (SS)
Switching Frequency (f_SW) Synchronizable to External 2MHz to 2.5MHz Source
Over-Voltage Protection (OVP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP)

Functional Safety System Design Capable:

MPSafe^TM Compatible – Functional Safety Supporting Document Available

正在供货产品型号

MPQ3414CGJ-5-AEC1-Z MPQ3414CGJ-5-AEC1-P

P&Z的含义

相关产品

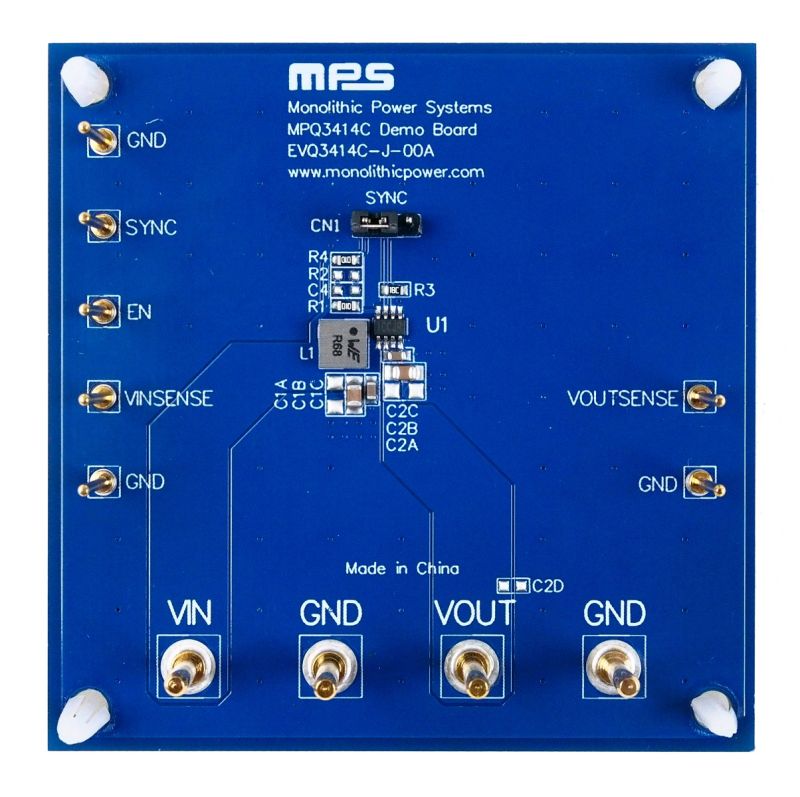

EVQ3414C-J-00A 1.5A, 2.2MHz, 5V_OUT, 52μA I_Q, Synchronous Step-Up Converter with Output Disconnect Evaluation Board, AEC-Q100 Qualified

The EVQ3414C-J-00A evaluation board is designed to demonstrate the capabilities of the MPQ3414C-AEC1, a high-efficiency, synchronous, current-mode step-up converter with output disconnect.

The 2.2MHz fixed switching frequency (f_SW) allows for the use of small external components. The switching frequency (f_SW) can be synchronized to an external source from 2MHz to 2.5MHz. Internal compensation and soft start (SS) reduce the number of external components required. These features provide a compact solution for a wide current load range.

The MPQ3414C-AEC1 features an integrated power MOSFET that supports up to 5V of output voltage (V_OUT), with up to 1A of average output current (I_OUT).

The EVQ3414C-J-00A is a fully assembled and tested evaluation board. The MPQ3414C-AEC1 is available in a compact TSOT23-8 package. It is available in AEC-Q100 Grade 1.
