36V, 8A, Switching Current Buck-Boost Converter with Four Integrated MOSFETs and I²C-Adjustable OCP, AEC-Q100 Qualified

详情

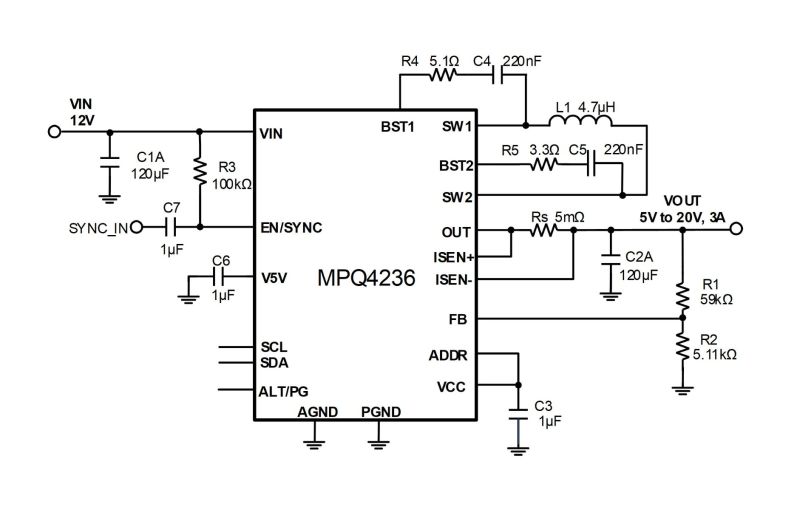

The MPQ4236-AEC1 is a buck-boost converter with four power MOSFETs. The device can deliver up to 60W of output power at certain input supply ranges with excellent efficiency.

The MPQ4236-AEC1 is suitable for battery pre-regulators, USB power delivery (PD), and wireless charging applications. It can work well with external PD or wireless charging controllers via the I²C interface.

The I²C interface and one-time programmable (OTP) memory provide flexibility for configurable parameters.

The adjustable switching frequency (f_SW) (up to 2MHz) during continuous conduction mode (CCM) greatly reduces the external inductance and capacitance. Fault condition protections include constant-current (CC) limiting, output and input over-voltage protection (OVP), and thermal shutdown (TSD).

The MPQ4236-AEC1 requires a minimal number of readily available, standard external components. It is available in a small QFN-18 (3mmx4mm) package with wettable flanks, and is available in AEC-Q100 Grade 1.

产品特性和优势

350μA Low Quiescent Current (I_Q)
8A Average Inductor Current (I_L)
4V to 36V Operating Input Voltage (V_IN) Range
1V to 26V Output Voltage (V_OUT) Range
0V to 2.047V I2C-Configurable Reference Voltage (V_REF) Range with 0.5mV Resolution
SWA/SWB/SWC/SWD On Resistance (R_DS(ON)): 15mΩ/21mΩ/14mΩ/13mΩ
Integrated 5V/60mA Low-Dropout (LDO) Regulator to Supply External Microcontroller Unit (MCU)
Selectable Input or Output Constant-Current (CC) Limit with 5% Accuracy via Factory Trimming
Input Over-Voltage Protection (OVP) Function
Selectable Switching Frequency (f_SW) with Frequency Spread Spectrum (FSS): 280kHz, 420kHz, 600kHz,
1.2MHz, or 2MHz
External Clock Synchronization
Selectable Automatic Pulse-Frequency Modulation (PFM) or Pulse-Width Modulation (PWM) Mode and Forced PWM Mode
Configurable I²C Target Address Supported by the ADDR Pin and I2C Register
Line Drop Compensation
Power Good (PG) Indication
I²C, Alert, and One-Time Programmable (OTP) Memory
Enable (EN) Shutdown Passive Discharge
Available in a QFN-18 (3mmx4mm) Package
Available in AEC-Q100 Grade 1
