MPQ8880A-AEC1
正在供货产品型号
MPQ8880AGVE-0000-AEC1-Z MPQ8880AGVE-0000-AEC1-P MPQ8880AGVE-0001-AEC1-Z MPQ8880AGVE-0001-AEC1-P MPQ8880AGVE-0002-AEC1-Z MPQ8880AGVE-0002-AEC1-P MPQ8880AGVE-xxxx-AEC1-Z MPQ8880AGVE-xxxx-AEC1-P
P&Z的含义
相关产品

EVQ8880A-V-00A 60V, 4.5A, High-Efficiency, Digital, Configurable, Synchronous Step-Down Converter Evaluation Board

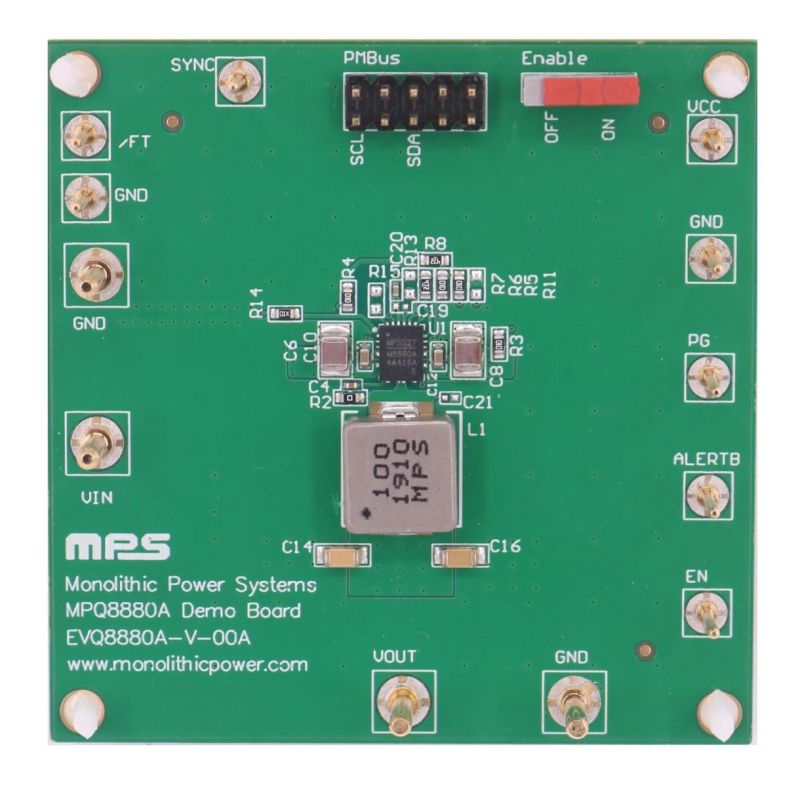

The EVQ8880A-V-00A is an evaluation board designed to demonstrate the capabilities of the MPQ8880A-AEC1, a fully integrated, high-efficiency, synchronous step-down converter with a wide input voltage (VIN) range and up to 4.5A of output current (IOUT).
The MPQ8880A-AEC1 adopts current mode control to provide fast transient response and simplify loop stabilization. The MPQ8880A-AEC1 implements full protection features, including under-voltage lockout (UVLO), over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown. The MPQ8880A-AEC1 supports paralleled operation with up to 4 phases for a higher IOUT. Refer to the MPQ8880A-AEC1 datasheet for more detailed information.
The MPQ8880A-AEC1 is available in a QFN-20 (4mmx5mm) package.
It is recommended to read the MPQ8880A-AEC1 datasheet prior to making any changes to the EVQ8880A-V-00A.
