MPQ29261-AEC1
Session textval
Session Titefor popup
详情
The MPQ29261-AEC1 is a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter with 2-bit voltage identification (VID). It offers an ultra-compact solution that can achieve up to 18A of continuous output current (IOUT), with an adjustable current limit (ILIMIT).
MPS’s proprietary switching loss reduction technique and internal low on resistance (RDS(ON)) MOSFETs allow the device to operate at high efficiency across the wide IOUT load range.
Adaptive constant-on-time (COT) control provides fast transient response and eases loop stabilization. The DC auto-tune loop works with the differential remote sense to provide excellent load and line regulation.
Full protection features include over-current limitation (OCL), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

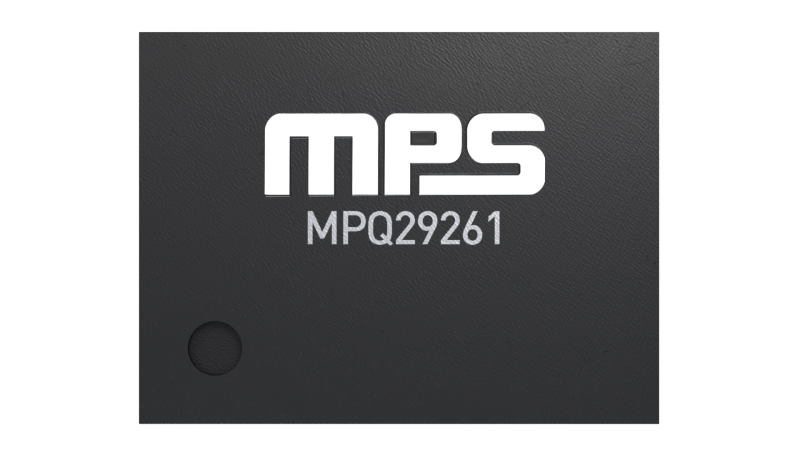

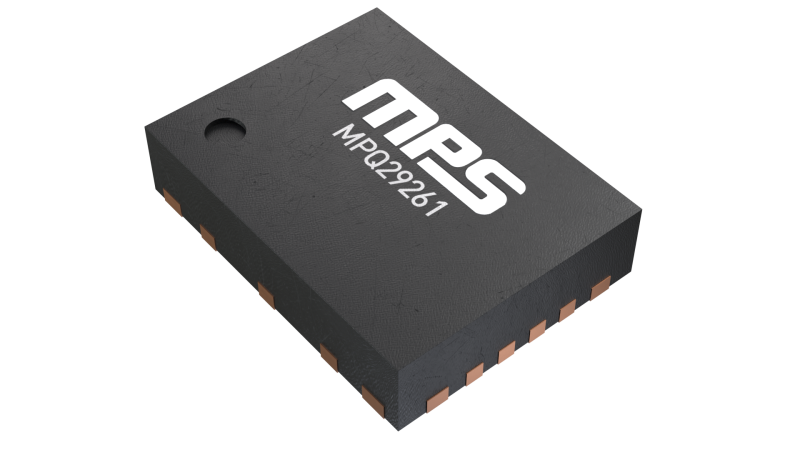

The MPQ29261-AEC1 requires a minimal number of standard external components, and it is available in a QFN-19 (3mmx4mm) package. It is AEC-Q100 qualified.
-
显示更多
显示较少
产品特性和优势
- Wide Operating Input Voltage (VIN) Range
- 2-Bit Voltage Identification (VID)
- 190µA Low Quiescent Current (IQ)
- 18A Continuous Output Current (IOUT)
- IMON Function
- Selectable Load Line
- Adjustable Current Limit (ILIMIT)
- 800kHz Fixed Switching Frequency (fSW)
- Adaptive Constant-On-Time (COT) Control for Fast Transient Response
- Remote Differential Sense
- Stable with POSCAP and Ceramic Capacitors
- Internal Soft Start (SS)
- Output Discharge
- Over-Current Limitation (OCL), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Thermal Shutdown

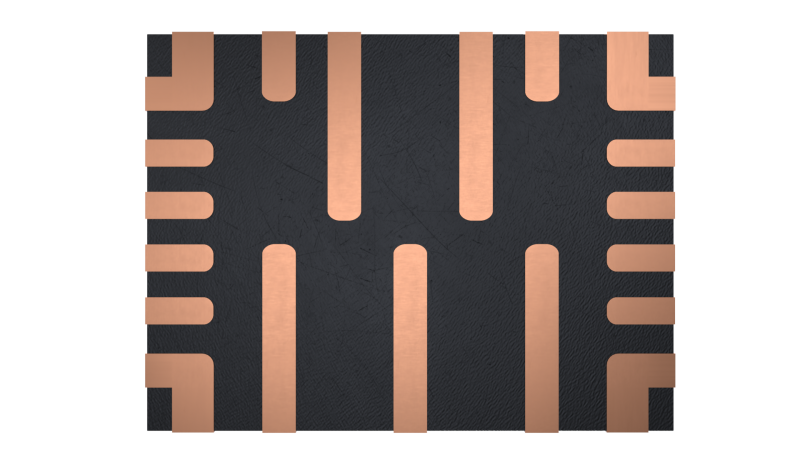

- Available in a QFN-19 (3mmx4mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
正在供货产品型号
MPQ29261GLE-AEC1-Z MPQ29261GLE-AEC1-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
