MP1678

16V, 8A, 800kHz, Step-Down Converter with PG and Mode in QFN-10 (2mmx3mm) Package

概述
设计资源
技术论坛
质量

MP1678

MP1678

16V, 8A, 800kHz, Step-Down Converter with PG and Mode in QFN-10 (2mmx3mm) Package

详情

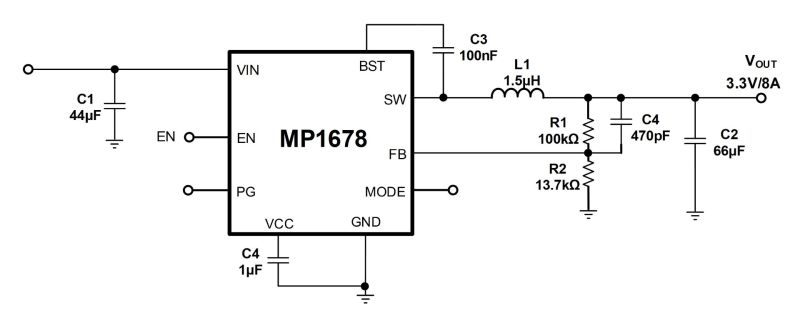

The MP1678 is a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs. It offers a very compact solution to achieve 8A of continuous output current (I_OUT) across a wide input supply range.

The M1678 operates at high efficiency over a wide I_OUT load range based on MPS's proprietary switching loss reduction tech and internal, low on resistance (R_DS(ON)) power MOSFETs.

Adaptive constant-on-time (COT) control mode provides fast transient response, eases loop stabilization, and provides very tight output regulation.

Full protection features include over-current protection (OCP), short-circuit protection (SCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

The MP1678 requires a minimum number of readily available, standard external components, and is available in a space-saving QFN-10 (2mmx3mm) package.

产品特性和优势

4.2V to 16V Wide Input Operating Range
160µA Low Quiescent Current (I_Q)
8A Continuous Current
Adaptive Constant-On-Time (COT) for Fast Transient
400mV Reference Voltage
800kHz Fixed Switching Frequency (f_SW)
Selectable Forced Continuous Conduction Mode (FCCM) and Pulse-Frequency Modulation (PFM) Mode via MODE Pin
Output Discharge
Pre-Biased Start-Up
Power Good (PG) Indication
PG Active-Clamped at Low Level during Power Failure
Hiccup for Over-Current Protection (OCP) and Short-Circuit Protection (SCP)
Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Thermal Shutdown Protection
Available in a QFN-10 (2mmx3mm) Package
Optimized Performance with MPS Inductor MPL-AL6050/5030 Series
