MPC22174-170

MPC22174-170

Dual-Phase, TLVR Intelli-Module^TM with Quiet Switcher^TM Technology

Parameters 详情

模块组装
开放式
最小输入电压（V）
4
最大输入电压（V）
16
最小输出电压（V）
0.4
最大输出电压（V）
2
最大输出电流（A）
170
最小开关频率（kHz）
400
最大开关频率（kHz）
2000
尺寸长x宽（mm）
8x8
Dimension (H) (Max) (mm)
4.8
安装类型
表面贴装
等级
工业级

The MPC22174-170 is a dual-phase, non-isolated, high-efficiency, step-down power module with Quiet Switcher^TM Technology (QST^TM). It integrates driver MOSFETs (DrMOS) and inductors to provide high efficiency in a small footprint, which makes it ideal for AI and server applications.

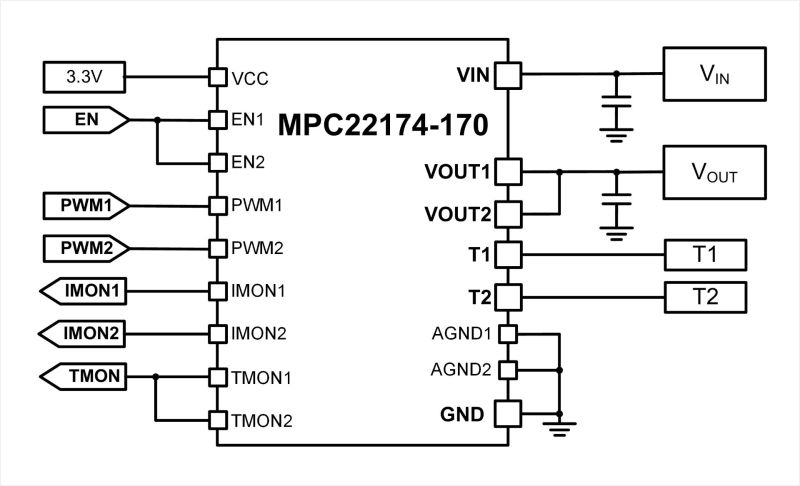

The device has two outputs, which can support both dual-rail operation and single-rail operation. It can achieve up to 170A (85A/phase) of output current (I_OUT) across a wide input voltage (V_IN) range.

The MPC22174-170 offers many features to simplify system design. It works with tri-state pulse-width modulation (PWM) signal controllers, has Accu-Sense^TM current-sensing to monitor the inductor current (I_L), and has temperature-sensing to report the junction temperature (T_J).

The MPC22174-170 is available in an LGA-45 (8mmx8mmx4.8mm) package.
