- MP87390
MP87390
Session textval
Session Titefor popup
- 最小输入电压（V）3
- 最大输入电压（V）8
- 最大输出电流（A）90
- 典型开关电流限（A）130
- 待机输入电流（mA）2.4
- 最小开关频率（kHz）100
- 最大开关频率（kHz）2000
- 上升时间（ns）15
- 下降时间（ns）15
- 脉宽调制逻辑电压（V）3.3
- 封装TLGA-34 (4x6)
- 等级目录

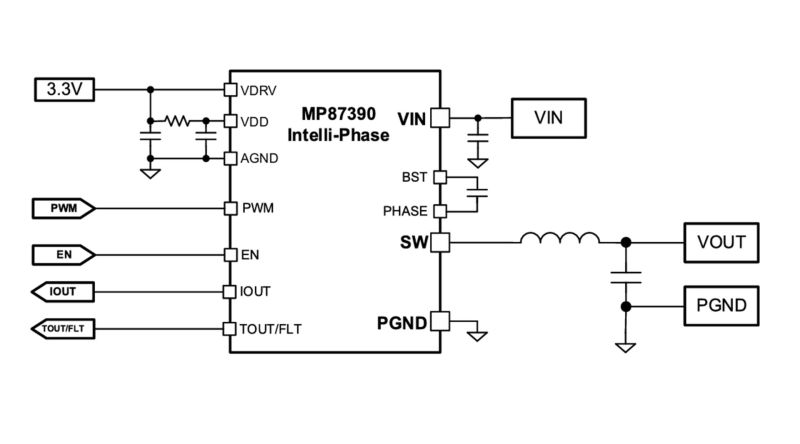

The MP87390 is a monolithic, half-bridge Intelli-PhaseTM solution with built-in internal power MOSFETs and gate drivers. It achieves up to 90A of continuous output current (IOUT) across a wide input supply voltage (VIN) range.
Quiet SwitcherTM Technology (QSTTM) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages to less than 3V above VIN, improving device reliability, lowering EMI emissions, and reducing sensitivity to PCB layout.
The MP87390 offers many features to simplify system design. It works with controllers with a tri-state pulse-width modulation (PWM) signal. It also comes with Accu-SenseTM current-sensing to monitor the inductor current (IL), and temperature-sensing to report the junction temperature (TJ).
The MP87390 is ideal for server applications where efficiency and small size are at a premium. It is available in a TLGA-34 (4mmx6mm) package.
-
显示更多
显示较少
产品特性和优势
- Quiet SwitcherTM Technology (QSTTM) Limits Peak Switching Voltages with Minimal Dependency on PCB Layout
- Wide 3V to 8V Operating Input Voltage (VIN) Range
- 90A Output Current (IOUT)
- Operation Up to 2MHz
- Accu-SenseTM Current Sense
- Temperature Sense
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting

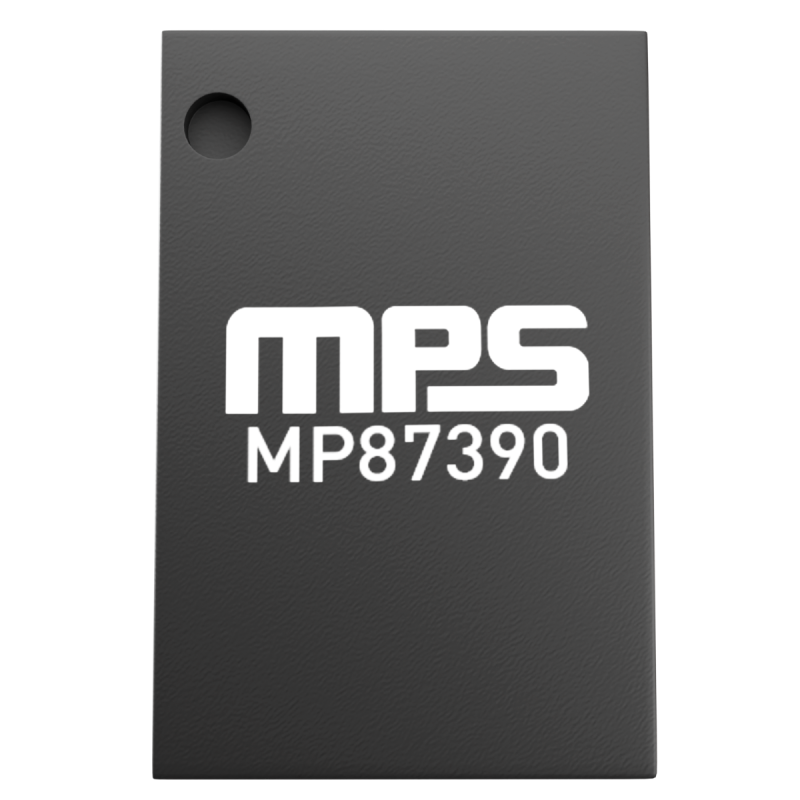

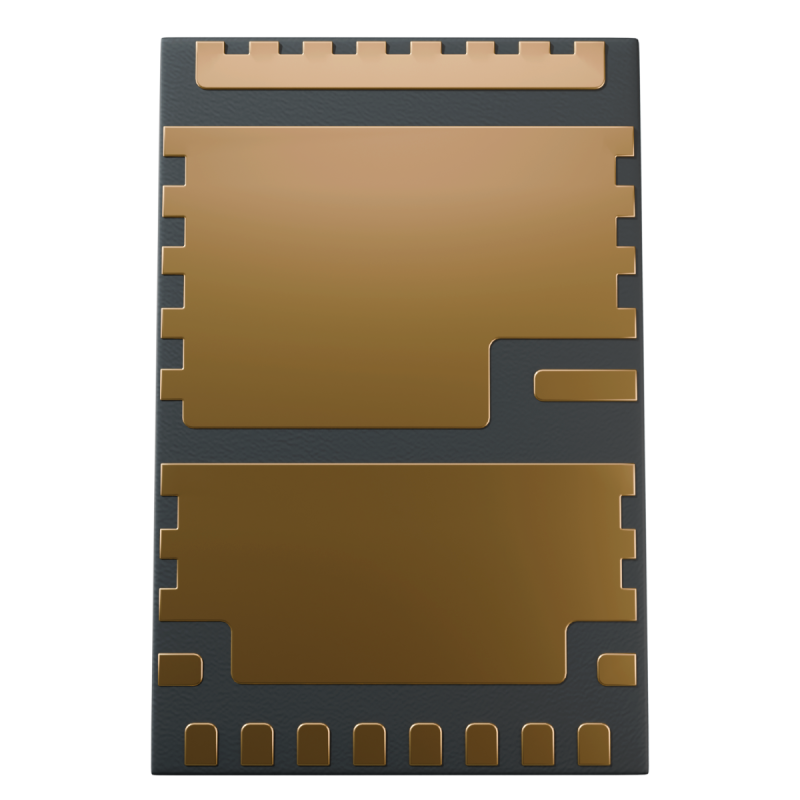

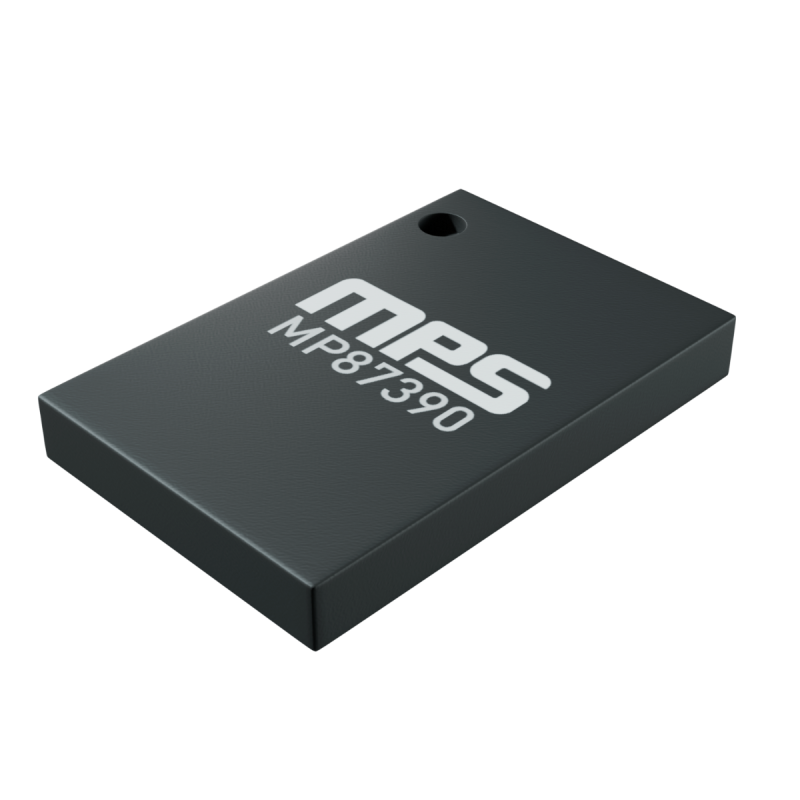

- Available in a TLGA-34 (4mmx6mm) Package
正在供货产品型号
MP87390GMWTH-Z MP87390GMWTH-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
