MPC16253-X-54-2500

MPC16253-X-54-2500

2.5kW, Regulated 12V Output, Quarter-Brick, Digital DC/DC Power Module

Parameters 详情

模块组装
开放式
最小输入电压（V）
40
最大输入电压（V）
60
最小输出电压（V）
12
最大输出电压（V）
12.5
最大输出电流（A）
205
输出功率（W）
2500
通讯接口
PMBus/I2C
尺寸长x宽（mm）
58.4x36.8
尺寸（高）（mm）
14.8
安装类型
Through Hole
等级
工业级

The MPC16253-X-54-2500 is a high-efficiency, non-isolated power module with a quarter-brick form factor, operating from a 40V to 60V DC primary bus to a regulated 12.2V output voltage (V_OUT), and can deliver up to 2500W of continuous power at a typical 54V input voltage (V_IN).

The built-in multiple-time programmable (MTP) memory can store and restore device configurations. The fault status, V_IN, V_OUT, output current (I_OUT), and temperature can be easily monitored via the PMBus/I²C interface.

The MPC16253-X-54-2500 is available in a through-hole (58.4mmx36.8mmx14.8mm) package.

产品特性和优势

Supports Up to 2500W of Continuous Power
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations
Input Voltage (V_IN), Output Voltage (V_OUT), Output Current (I_OUT), and Temperature Monitoring via the PMBus/I²C Interface
V_IN Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP), V_OUT OVP/UVP, Over-Current Protection (OCP), and Over-Temperature Protection (OTP)

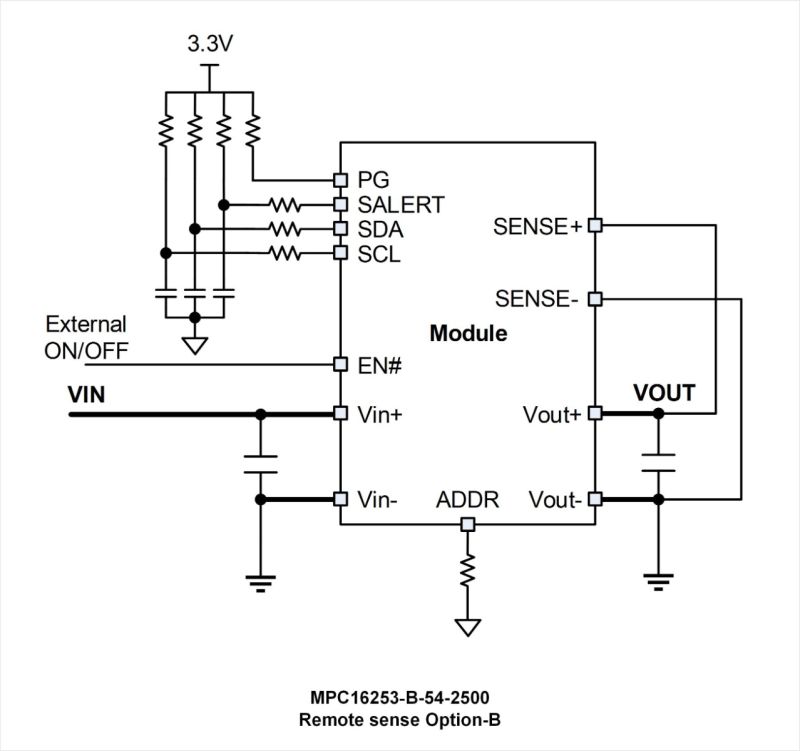

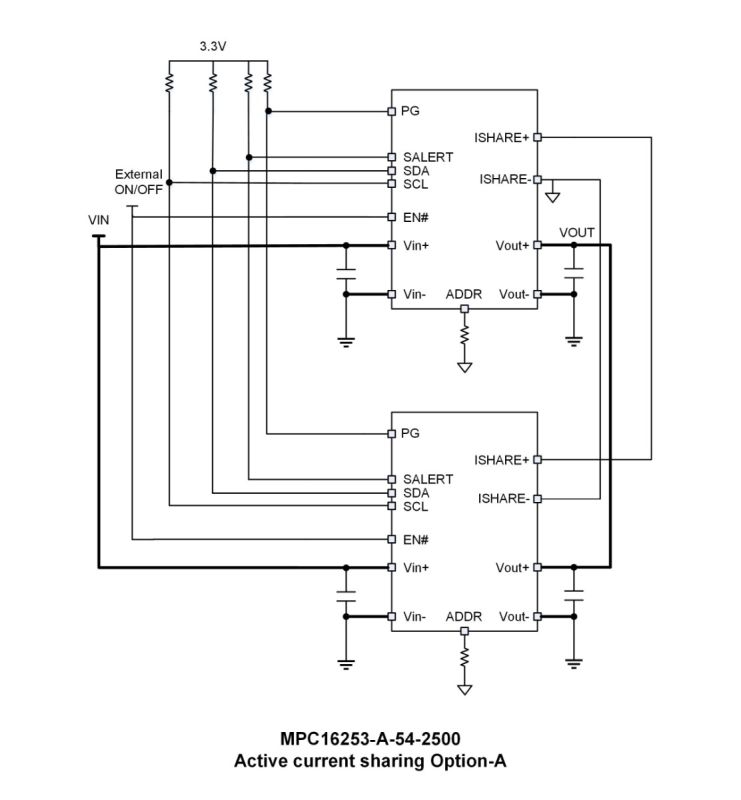

Parallel Load-Line Current-Sharing or Differential Remote Sense

PMBus Communication

Supports Wave and Reflow Soldering

Available in a Quarter-Brick, Through-Hole (58.4mmx36.8mmx14.8mm) Package
