MPQ5894-AEC1
Session textval
Session Titefor popup
详情
The MPQ5894-AEC1 is a quad-channel, smart high-side switch used in automotive electronic control units (ECUs) and domain control units (DCUs), such as body control, advanced driver-assistance systems (ADAS), and infotainment.
With an integrated N-channel MOSFET for each channel, the MPQ5894-AEC1 can be used for loads with a 3A nominal current. The device provides a compact solution with full protections, including under-voltage protection (UVP), over-voltage protection (OVP), over-current protection (OCP), short circuit protection (SCP), loss of GND, and over-temperature protection (OTP).
With two channel select pins and a multiplexed current-sense pin, the MPQ5894-AEC1 can output the load current or the fault status of the selected channel. In addition, it can also detect whether an open load occurs during the off state. The global FT pin asserts low if any global or channel fault occurs.
The device supports an internal, configurable, high-accuracy external current limit. This helps clamp the inrush current under short-circuit conditions, which improves overall system reliability. Fast-off functionality can quickly turn off the device if the channel current increases sharply during a short circuit.
With a bidirectional TVS diode applied in the system, the MPQ5894-AEC1 can handle the tests defined in ISO 7637-2 and ISO 16750-2 standards. It can also resist reverse battery connections.
The MPQ5894-AEC1 is available in a QFN-21 (4mmx5mm) package, and is AEC-Q100 qualified.
-
显示更多
显示较少
产品特性和优势
- Built to Handle Tough Automotive Transients:
- Reverse Battery Tolerant to -36V
- Load Dump Up to 42V
- Cold Crank Down to 3.5V
- Extends Battery Life:
- 1µA Shutdown Current (ISD) in Standby Mode
- Low Quiescent Current (IQ) Mode
- Separate Pin to Enable Current-Sensing and Diagnostics
- Full Protections and Diagnostics:
- Configurable Current Limit
- Current Limit Foldback
- Fast-Off during Short-Circuit Protection (SCP)
- Over-Temperature Protection (OTP)
- Under-Voltage Protection (UVP)
- Over-Voltage Protection (OVP)
- Off-State Open-Load Detection (OLD)
- Loss of GND and Loss of Battery Protection
- Reverse Polarity Protection
- Switch-Off Negative Voltage Clamping
- Other Features:
- 3.3V/1.8V MCU Compatible
- ±3% Current-Sense (CS) Accuracy for >1A Loads
- Support Latch-Off and Auto-Retry Option
- Available in AEC-Q100 Grade 1
- Available in AEC-Q100-012 Test Grade A
- Available in a QFN-21 (4mmx5mm) Package
- Available in a Wettable-Flank Package
- Functional Safety System Design Capable:
- MPSafeTM-Compatible – Functional Safety Supporting Documentation Available

正在供货产品型号
MPQ5894GVE-xxxx-AEC1-Z MPQ5894GVE-xxxx-AEC1-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
MPQ5894-AEC1 Resources
-
PRODUCT CATEGORY
智能高边开关产品类目 -
PRODUCT

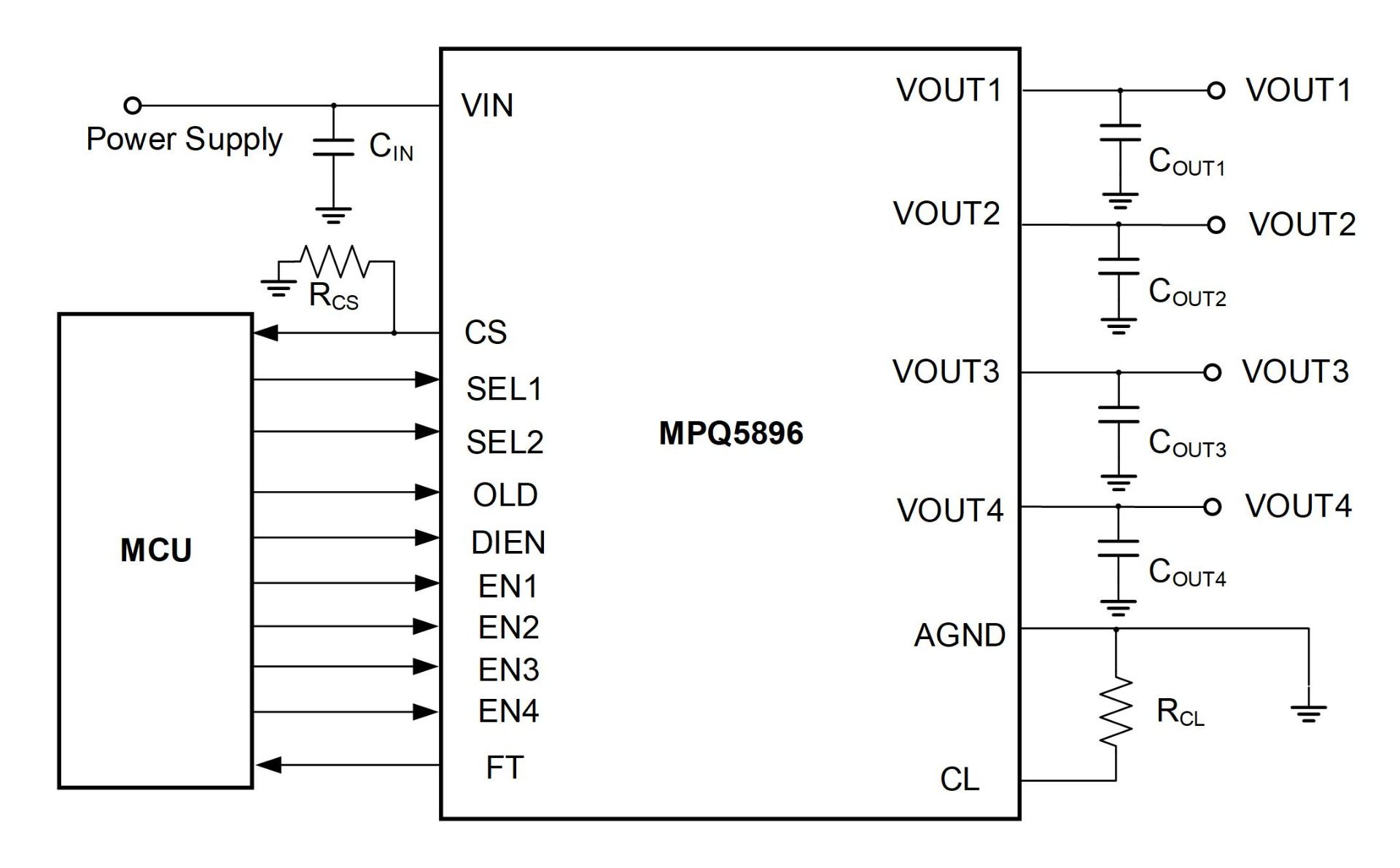

MPQ5896-AEC1产品60V Load Dump, 3A, Quad-Channel, Smart High-Side Switch, AEC-Q100 Qualified
-
PRODUCT
MPQ5862-AEC1产品16V、1.5A、双通道、上管开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5075A-AEC1产品5.5V、5A、低导通电阻(RDS(ON))负载开关,具有可调电流限并符合 AEC-Q100 认证
-
PRODUCT
MPQ5077A-AEC1产品具有可配置限流功能的 5.5V、7A、低 RDS(ON)负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5074-AEC1产品带可调电流限的 5.5V、3A、低导通电阻(RDS(ON))负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5872-AEC1产品42V负载突降容限、60mΩ、单通道、智能上管负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5871-AEC1产品36V、60mΩ、单通道、智能高边负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5873-AEC1产品36V、60mΩ、单通道、智能高边负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5072-AEC1产品具有可编程限流功能的 5.5V、1A 低导通阻抗负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5071-AEC1产品具有可编程限流功能的 5.5V、0.5A 低导通阻抗负载开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ5066-AEC1产品带电流监控功能的 28V、6A、7mΩ RDS(ON) 热插拔保护器件,符合 AEC-Q100 认证
-
PRODUCT
MPQ5068-AEC1产品带电流监控功能的 28V、8A、7mΩ RDS(ON) 热插拔保护器件,符合 AEC-Q100 认证
-
PRODUCT
MPQ5069-AEC1产品7mΩ 保护开关,带电流监控器,适用于符合 AEC-Q100 认证的汽车电池系统
-
PRODUCT
MPQ2735产品带通道选择引脚的工业级低压 0.45O 双路单刀双掷(SPDT)模拟开关
-
PRODUCT
MPQ5884-AEC1产品80V、电熔丝和智能上管电源开关,符合 AEC-Q100 认证
-
PRODUCT
MPQ77220FS-AEC1产品MPSafeTM, ASIL-B, 16V, 1.5A, 90mΩ RDS(ON)、双通道上管开关,符合 AEC-Q100 认证和ASIL-B标准
-
PRODUCT

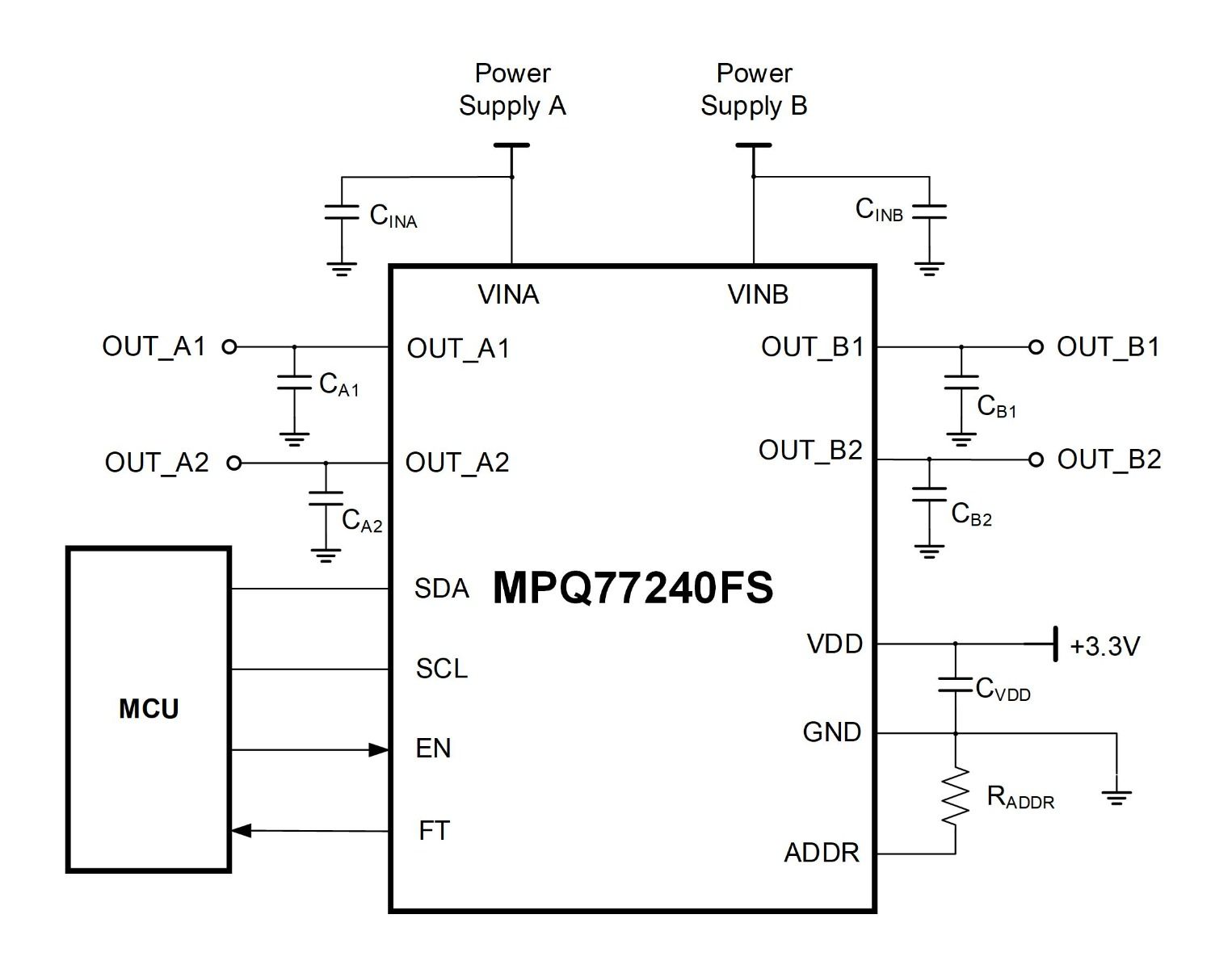

MPQ77240FS-AEC1产品MPSafeTM、16V、180mΩ、0.8A、四通道上管开关,符合 AEC-Q100 认证和ASIL-B 标准
-
