MPQ7232-AEC1

MPQ7232-AEC1

36V, 6A, Synchronous Buck Infrared LED Driver, AEC-Q100 Qualified

详情

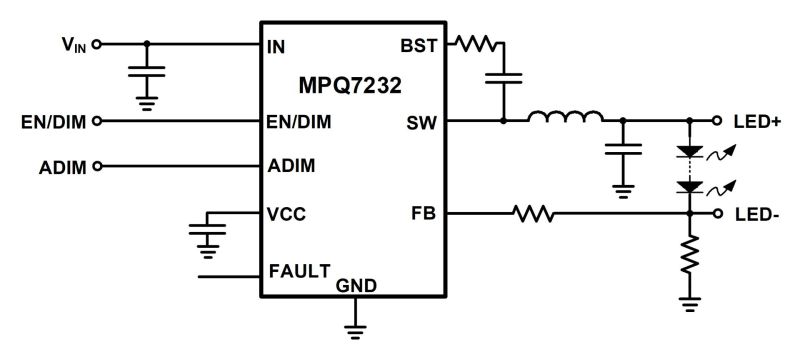

The MPQ7232-AEC1 is a synchronous, step-down, constant-current, infrared (IR) LED driver. It features a compact solution that achieves up to 6A of peak LED current (I_LED). An ideal configuration is to drive one or two IR LEDs. Peak I_LED control mode provides fast transient response and eases loop stabilization.

The MPQ7232-AEC1 supports a 10Hz to 2kHz pulse-width modulation (PWM) dimming frequency range. It is compatible with IR LED applications that require 30FPS, 60FPS, or 120FPS dimming.

The MPQ7232-AEC1 also supports analog dimming. It applies a DC voltage between 0.2V and 1.6V on the ADIM pin to linearly adjust the internal I_LED reference voltage (V_REF) between 25mV and 200mV. Frequency spread spectrum (FSS) modulation improves EMC performance.

Full protection features include LED short-to-GND protection, LED open protection, thermal shutdown (TSD), and a dedicated fault pin.

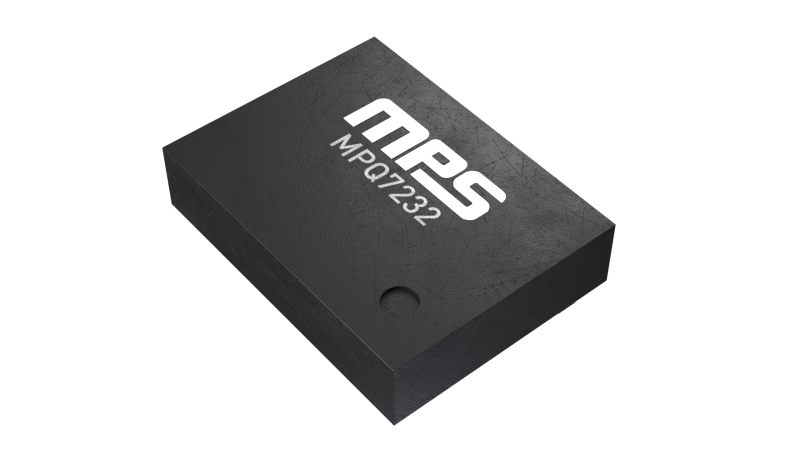

The MPQ7232-AEC1 requires a minimal number of readily available, standard external components. It is available in a space-saving QFN-15 (3mmx4mm) package, and is AEC-Q100 qualified.

产品特性和优势

Designed for Automotive Applications:
- 4.5V to 36V Input Voltage (V_IN) Range
- -40°C to +150°C Junction Temperature (T_J) Rating
Built for Infrared (IR) LED Applications:
- Up to 6A of Peak LED Current (I_LED)
- Configurable I_LED
- 10Hz to 2kHz Pulse-Width Modulation (PWM) Dimming Frequency (fPWM)
- Compatible with 30FPS, 60FPS, and 120FPS Dimming
- Analog Dimming

Improved Efficiency and Thermals:

45mΩ/30mΩ On-Resistance (R_DS(ON)) Internal MOSFETs
High-Efficiency Synchronous Driver

Optimized for EMC and EMI:

2.25MHz Switching Frequency (f_SW)
Frequency Spread Spectrum (FSS)

Full Protection Features:

Fault Indication for LED Short to GND and LED Open
Thermal Shutdown (TSD)

Additional Features:

Available in a QFN-15 (3mmx4mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1

正在供货产品型号

MPQ7232GLE-AEC1-Z MPQ7232GLE-AEC1-P

P&Z的含义

相关产品

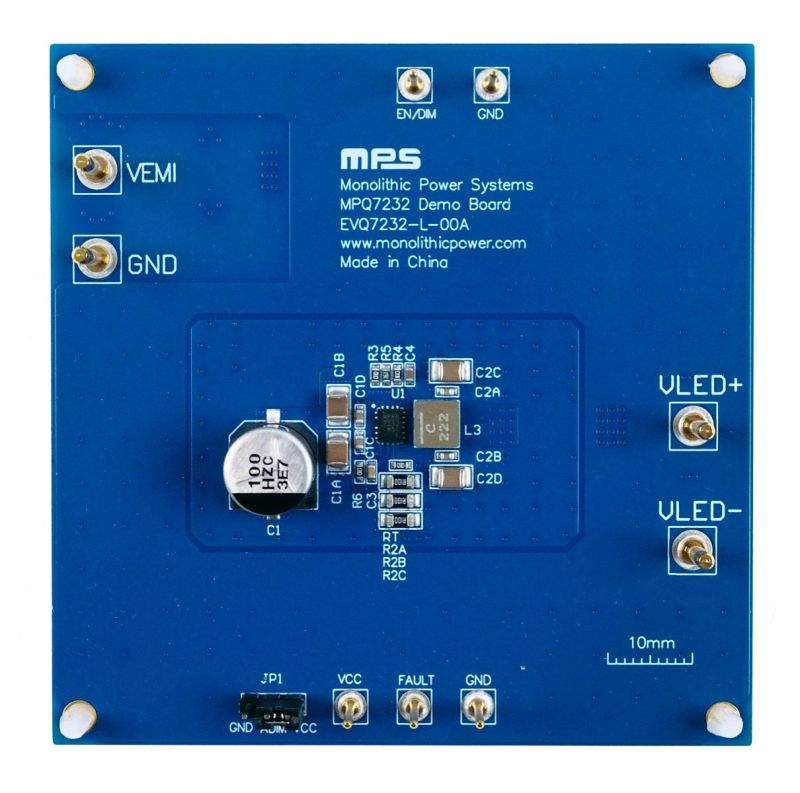

EVQ7232-L-00A 36V, 6A, Synchronous, Step-Down, Infrared LED Driver Evaluation Board, AEC-Q100 Qualified

The EVQ7232-L-00A is an evaluation board designed to demonstrate the capabilities of the MPQ7232-AEC1, a synchronous, step-down, constant-current, infrared (IR) LED driver. The MPQ7232-AEC1 is rated for a 4.5V to 36V input voltage (V_IN) range. It is a compact solution that can achieve up to 6A of peak LED current (I_LED). An ideal configuration is to drive one or two IR LEDs. Peak LED current control mode provides fast transient response and eases loop stabilization.

The MPQ7232-AEC1 supports a 10Hz to 2kHz pulse-width modulation (PWM) dimming frequency range, making it compatible with IR LED applications that require 30FPS, 60FPS, or 120FPS dimming. The device can also support analog dimming by applying a DC voltage between 0.2V and 1.6V on the ADIM pin to linearly adjust the internal I_LED reference voltage (V_REF) between 25mV and 200mV. Frequency spread spectrum (FSS) modulation improves EMC performance.

The MPQ7232-AEC1 features a dedicated fault pin, as well as full protection features, including LED short protection, LED open protection, and thermal shutdown.

The EVQ7232-L-00A is a fully assembled and tested synchronous, step-down, IR LED driver evaluation board. It generates up to 6A of peak I_LED across a 4.5V to 36V V_IN range.

The MPQ7232-AEC1 is available in a QFN-15 (3mmx4mm) package with wettable flanks, and is available in AEC-Q100 Grade 1.

¥349.50
+ 税
