MPQ7793-AEC1

MPQ7793-AEC1

2V Load Dump, 75W, 4-Channel, 2.2MHz, Automotive Digital-Input Class-D Audio Amplifier, AEC-Q100 Qualified

详情

The MPQ7793-AEC1 is an automotive-grade, low-EMI, 4-channel, digital-input Class-D audio amplifier with I²C diagnostics.

Each channel utilizes a bridge-tied load (BTL) structure capable of delivering 25W/60W to speakers with a 14.4V/25V power supply (PV_DD) (THD + N = 1%). The MPQ7793-AEC1 also supports parallel BTL (PBTL) output with two channels in parallel, which delivers 50W/120W to speakers at 14.4V/25V (THD + N = 1%).

MPS Class-D audio amplifiers exhibit the high fidelity of Class-AB amplifiers at high efficiency. The switching frequency (f_SW) of the MPQ7793-AEC1 can be set at about 400kHz or 2.2MHz. It achieves 90% efficiency for both low-frequency and high-frequency operations.

The MPQ7793-AEC1 supports 16-bit to 32-bit, 4-channel I²S, or 4/8-channel time division multiplexing (TDM) input with various input sampling rates. The device supports high-resolution (Hi-Res) audio with the 96kHz input sampling rate. A low-latency path is developed to reduce the digital stage delay.

The device integrates the DC load diagnostics to detect open-load, short-load, load-to-GND short, or load-to-PVDD short conditions. The device also supports AC load diagnostics, which report the AC load impedance and phase. In addition, with an integrated analog-to-digital converter (ADC), the device can monitor the device impedance, device temperature, and the input voltage (V_IN).

The MPQ7793-AEC1 provides full protections, including under-voltage protection (UVP), over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP) with fault and warning indicators. The device status can also be reported to the microcontroller unit (MCU) via the I²C interface. The MPQ7793-AEC1 supports 1.8V or 3.3V logic input/output and 16 I²C addresses with two hardware pins.

Frequency spread spectrum (FSS) and configurable phase shift among multiple devices enable excellent EMI performance.

The MPQ7793-AEC1 is available in an SSOP56-EPR package with a reversed exposed thermal pad for heatsink attachment. It is AEC-Q100 qualified.

产品特性和优势

Full Diagnostics and Monitoring:
- DC Load Diagnostics
- AC Load Impedance Reading
- Real-Time Load Diagnostics and Impedance Meter
- Current Monitoring via the Time Division Multiplexing (TDM) Interface
- Temperature and Voltage Monitoring
Full Protections:
- Input Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP)
- Current Limit for Each Channel
- DC Offset and Clip Detection
- Over-Temperature (OT) Shutdown and Warning
Audio Inputs:
- Sampling Rate: 44.1kHz, 48kHz, or 96kHz
- 4-Channel I²S or 4/8 Channel TDM Input
- 16-Bit to 32-Bit I²S or TDM
Audio Outputs:
- 4-Channel Bridge-Tied Load (BTL)/2-Channel Parallel BTL (PBTL)
- Delivers 25/60W at 14.4V/25V, BTL @ 1% THD+N
- Delivers 50/120W at 14.4V/25V, PBTL @ 1% THD+N
Audio Performance:
- THD + N = 0.01% at 1W Output
- 110dB Dynamic Response, 40µV Output Noise
- 75dB Power Supply Rejection Ratio (PSRR), -80dB Crosstalk
- 2nd Low-Latency Path
Built to Handle Automotive Transients:
- 4V to 26V Wide Operation Range
- Load Dump Up to 42V
Extremely Low Quiescent Power:
- Low 5µA Standby Current (I_QSTBY)
- 1.2W Quiescent Power with 14.4V Battery Voltage (V_BATT) and PV_DD
Cooler Thermals:
- Low-Ohmic BCD FET Technology
- Up to 90% Efficiency
Low EMI/EMC Noise:
- Meets CISPR 25 Class 5
- Frequency Spread Spectrum (FSS)
- Pulse-Width Modulation (PWM) Phase Shift with Multiple Devices
Additional Features:
- Supports AD/BD Modulation
- Supports 384kHz, 470kHz, and 2.2MHz Operation
- 16 Pin-Configurable I²C Addresses
- Start-Up/Shutdown Pop Elimination
- Fault Pin/I²C Interface for Diagnostics
- Available in an SSOP56-EPR Package with a Reversed Exposed Thermal Pad
- Available in AEC-Q100 Grade 1
Functional Safety System Design Capable:
- MPSafe^TM-Compatible – Functional Safety Supporting Document Available

正在供货产品型号

MPQ7793GWR-xxxx-AEC1-Z MPQ7793GWR-xxxx-AEC1-P MPQ7793GWR-0000-AEC1-Z MPQ7793GWR-0000-AEC1-P

P&Z的含义

相关产品

MPQ7794-AEC1 2V Load Dump, 75W, 4-Channel, 2.2MHz, Automotive Digital-Input Class-D Audio Amplifier, AEC-Q100 Qualified

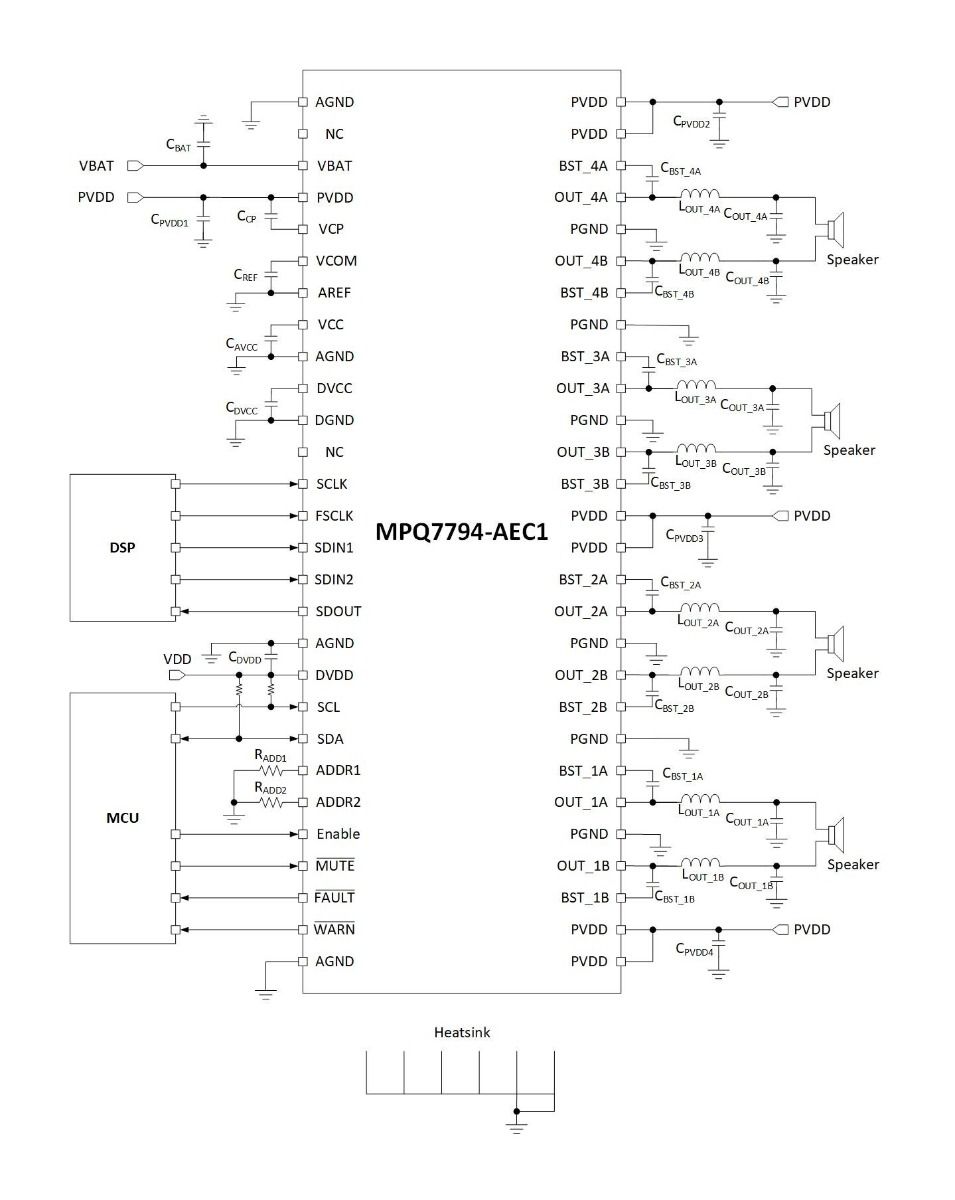

The MPQ7794-AEC1 is an automotive-grade, low-EMI, 4-channel digital-input Class-D audio amplifier with I²C diagnostics.
