MP87006
90A, Intelli-PhaseTM DrMOS Solution with Quiet SwitcherTM Technology in TLGA-34 (4mmx6mm) Package
Session textval
Session Titefor popup
详情

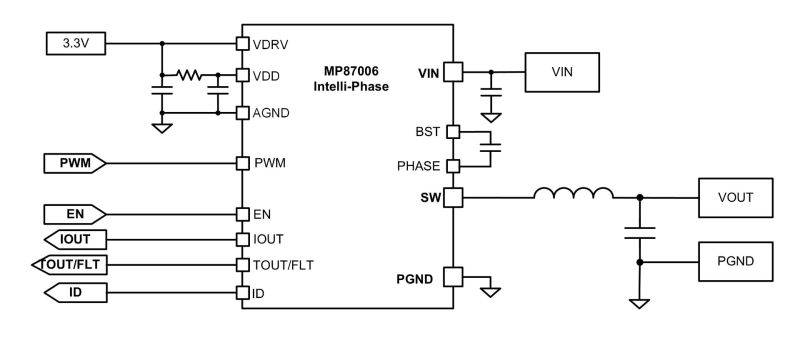

The MP87006 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. The MP87006 achieves 90A of continuous output current (IOUT) across a wide input supply range.
Quiet SwitcherTM technology (QSTTM) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages to less than 3V above the input voltage (VIN), improves device reliability, lowers EMI emissions, and reduces sensitivity to the PCB layout.
The MP87006 offers many features to simplify system design. The MP87006 works with controllers with a tri-state pulse-width modulation (PWM) signal, and comes with an accurate current sense to monitor the inductor current (IL) and temperature sense to report the junction temperature (TJ).

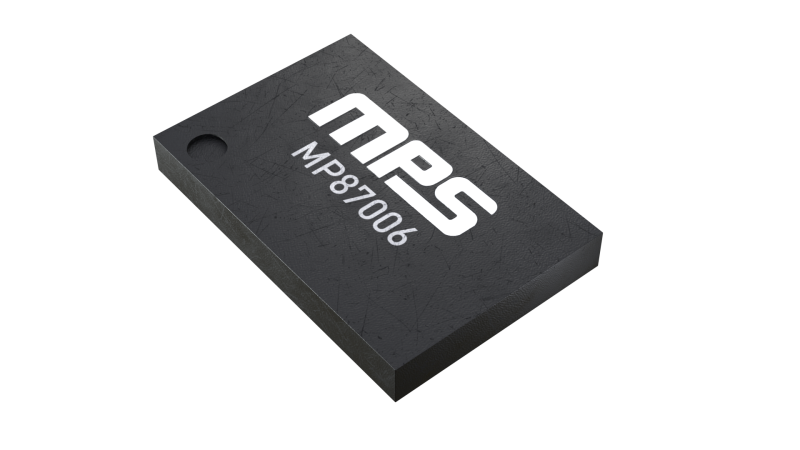

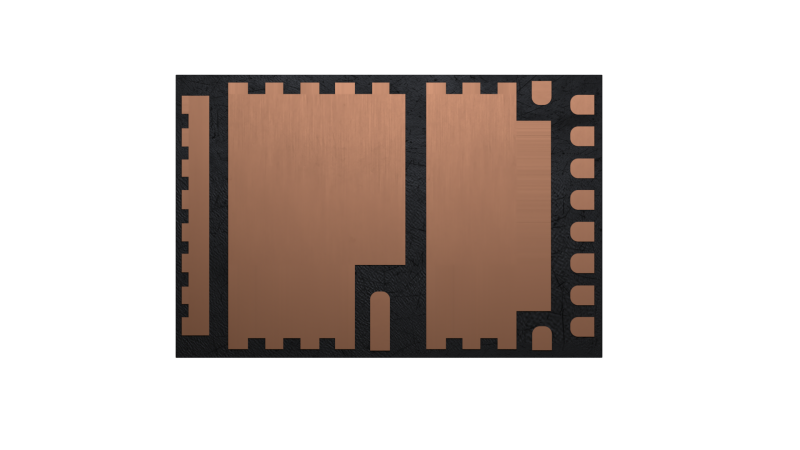

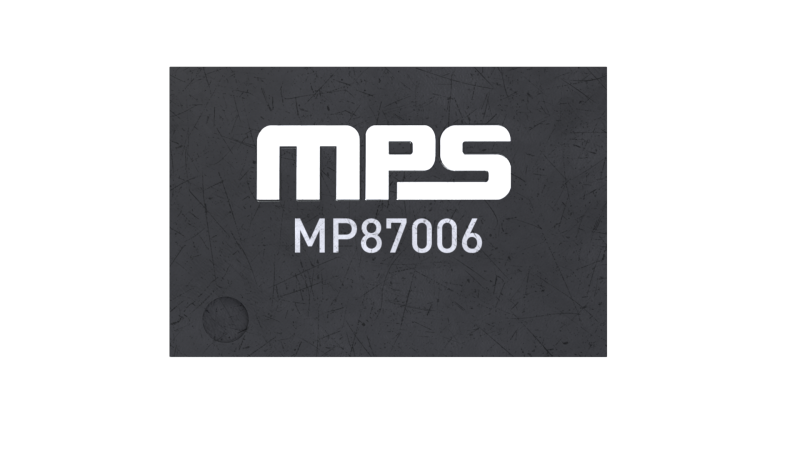

The MP87006 is ideal for server applications where efficiency and small size are at a premium. The MP87006 is available in a TLGA-34 (4mmx6mm) package.
-
显示更多
显示较少
产品特性和优势
- Quiet SwitcherTM Technology (QSTTM) Limits Peak Switching Voltages to <3V Above Input Voltage (VIN) with Minimal Dependency on PCB Layout
- Wide 3V to 16V Operating Input Range
- 90A Output Current (IOUT)
- Current Sense: Accu-SenseTM
- Temperature Sense
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting
- Available in a TLGA-35 (4mmx6mm) Package
正在供货产品型号
MP87006GMWTH-Z MP87006GMWTH-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
