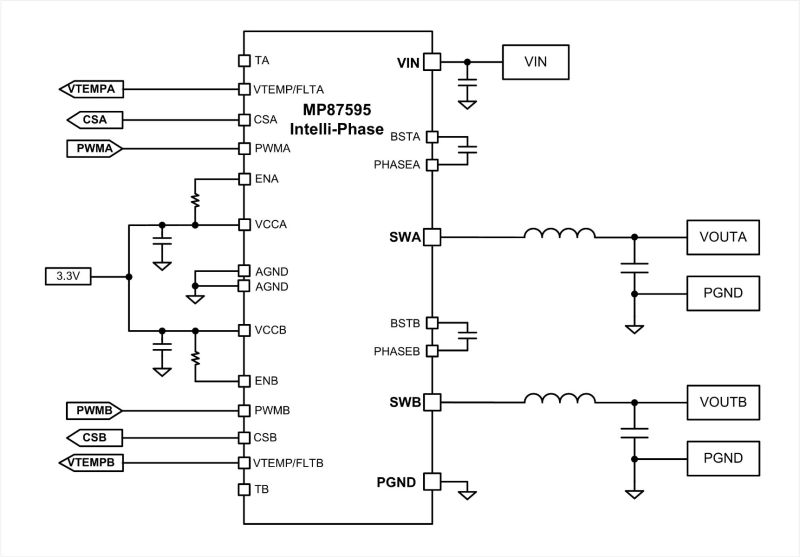

The MP87595 is a dual monolithic half-bridge Intelli-PhaseTM solution with built-in, internal power MOSFETs and gate drivers. It achieves up to 90A of continuous output current (IOUT) per output across a wide input voltage (VIN) range.
The integration of drivers and MOSFETs results in high efficiency due to optimal dead time (DT) and reduction of parasitic inductance. The device can operate from 100kHz to 3MHz.
The MP87595 offers many features to simplify system design. It works with controllers with a tri-state pulse-width modulation (PWM) signal.
The MP87595 is ideal for computing applications, where efficiency and small size are at a premium. It is available in an LGA-40 (6mmx6mm) package.
-
显示更多
显示较少
产品特性和优势
- 3V to 16V Operating Input Voltage (VIN)
- Dual Phase Operation, 90A Output Current (IOUT) per Phase
- Accu-SenseTM Current Sense
- Individual Junction Temperature (TJ) Sense and Reporting
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Positive Current Limit with Hysteresis
- Negative Current Limit
- Fast Catastrophic Fault Response
- Quiet SwitcherTM Technology (QSTTM) Limits Peak Switching Voltage with Minimal Dependency on PCB Layout
- Available in Exposed Top Package for Low Junction-to-Case Top Thermal Resistance
- Available in a Common-Footprint LGA-40 (6mmx6mm) Package
正在供货产品型号
MP87595GMKH-Z MP87595GMKH-P MP87595GMKD-Z MP87595GMKD-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
