- MP87597
MP87597
Session textval
Session Titefor popup
详情

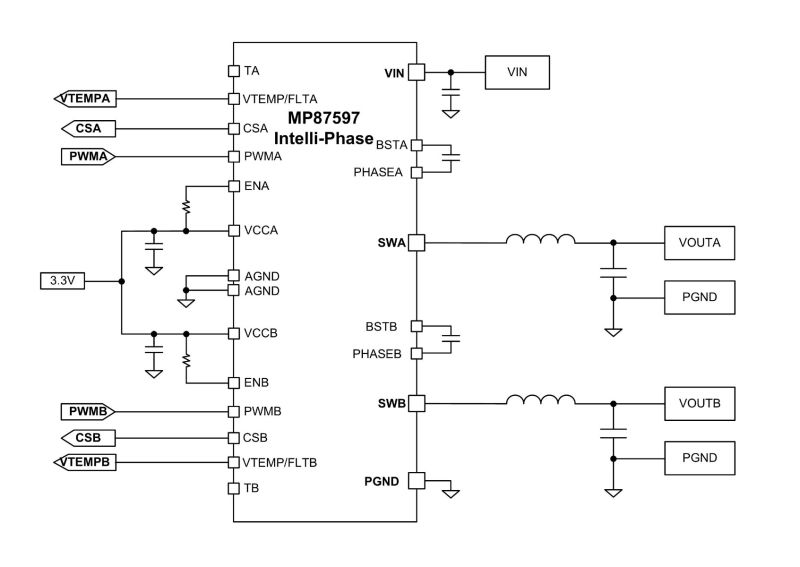

The MP87597 is a dual monolithic half-bridge with built-in, internal power MOSFETs and gate drivers. It achieves up to 100A of continuous output current (IOUT) per output across a wide input voltage (VIN) range.
The integration of drivers and MOSFETs results in high efficiency due to optimal dead time (DT) and reduced parasitic inductance. The device can operate from 100kHz to 3MHz, and offers many features to simplify system design. It works with controllers with a tri-state pulse-width modulation (PWM) signal.
The MP87597 is ideal for computing applications, where efficiency and small size are at a premium. It is available in an LGA-40 (6mmx6mm) package.
-
显示更多
显示较少
产品特性和优势
- 3V to 8V Operating Input Voltage (VIN)
- Dual-Phase Operation, 100A Output Current (IOUT) per Phase
- Accu-SenseTM Current Sense
- Individual Junction Temperature (TJ) Sense and Reporting
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Positive Current Limit with Hysteresis
- Negative Current Limit
- Fast Catastrophic Fault Response
- Quiet SwitcherTM Technology (QSTTM) Limits Peak Switching Voltage with Minimal Dependency on PCB Layout
- Available in Exposed Top Package for Low Junction-to-Case-Top Thermal Resistance
- Available in a Common-Footprint LGA-40 (6mmx6mm) Package
正在供货产品型号
MP87597GMKD-Z MP87597GMKD-P MP87597GMKH-Z MP87597GMKH-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
MP87597 Resources
-
PRODUCT CATEGORY
处理器核心电源 INTELLI-PHASE（单片DRMOS）产品类目 -
PRODUCT
MP87290产品90A, Intelli-PhaseTM DrMOS Solution with Quiet SwitcherTM Technology (QSTTM) in TLGA-34 (4mmx6mm) Package
-
PRODUCT
MP87595产品双路90A Intelli-PhaseTM解决方案，采用LGA-40 (6mmx6mm)封装
-
PRODUCT
MP87270产品采用 TLGA-30（4mm × 5mm）封装及Quiet SwitcherTM 技术的 70A Intelli-PhaseTM DrMOS 解决方案
-
PRODUCT
MP87577产品采用 LGA-33 (5.25mm x 5mm) 封装的 Intelli-PhaseTM 解决方案
-
PRODUCT
MP87971产品集成HS-FET/LS-FET和驱动器的单片半桥 Intelli-PhaseTM 解决方案，采用 TLGA (5mmx5mm)封装
-
PRODUCT
MP87592产品100A Intelli-PhaseTM DrMOS 解决方案，采用 Quiet Switcher™ 技术及 TLGA-34 (4mmx6mm) 封装
-
PRODUCT
MP87297产品Intelli-PhaseTM DrMOS 解决方案，采用 Quiet SwitcherTM 技术和 TLGA-34 (4mmx6mm) 封装
-
PRODUCT
MP87294产品100A Intelli-PhaseTMDrMOS 解决方案，采用 Quiet SwitcherTM技术和 TLGA-34 (4mmx6mm) 封装
-
PRODUCT
MP87550产品Intelli-PhaseTMDrMOS 解决方案，采用 TLGA-30 (4mmx5mm) 封装
-
PRODUCT
MP87120产品20A Intelli-PhaseTM DrMOS 解决方案，采用 Quiet SwitcherTM技术和 TLGA-27 (4mm x 5mm) 封装
-
PRODUCT
MP87000-M产品90A Intelli-PhaseTM DrMOS 解决方案，采用 Quiet SwitcherTM 技术和TLGA-41（5mm x 6mm）封装
-
PRODUCT
MP87180产品80A Intelli-PhaseTM DrMOS 解决方案，采用 Quiet SwitcherTM技术、5V PVCC以及TLGA-41 (5mmx6mm) 封装
-
PRODUCT

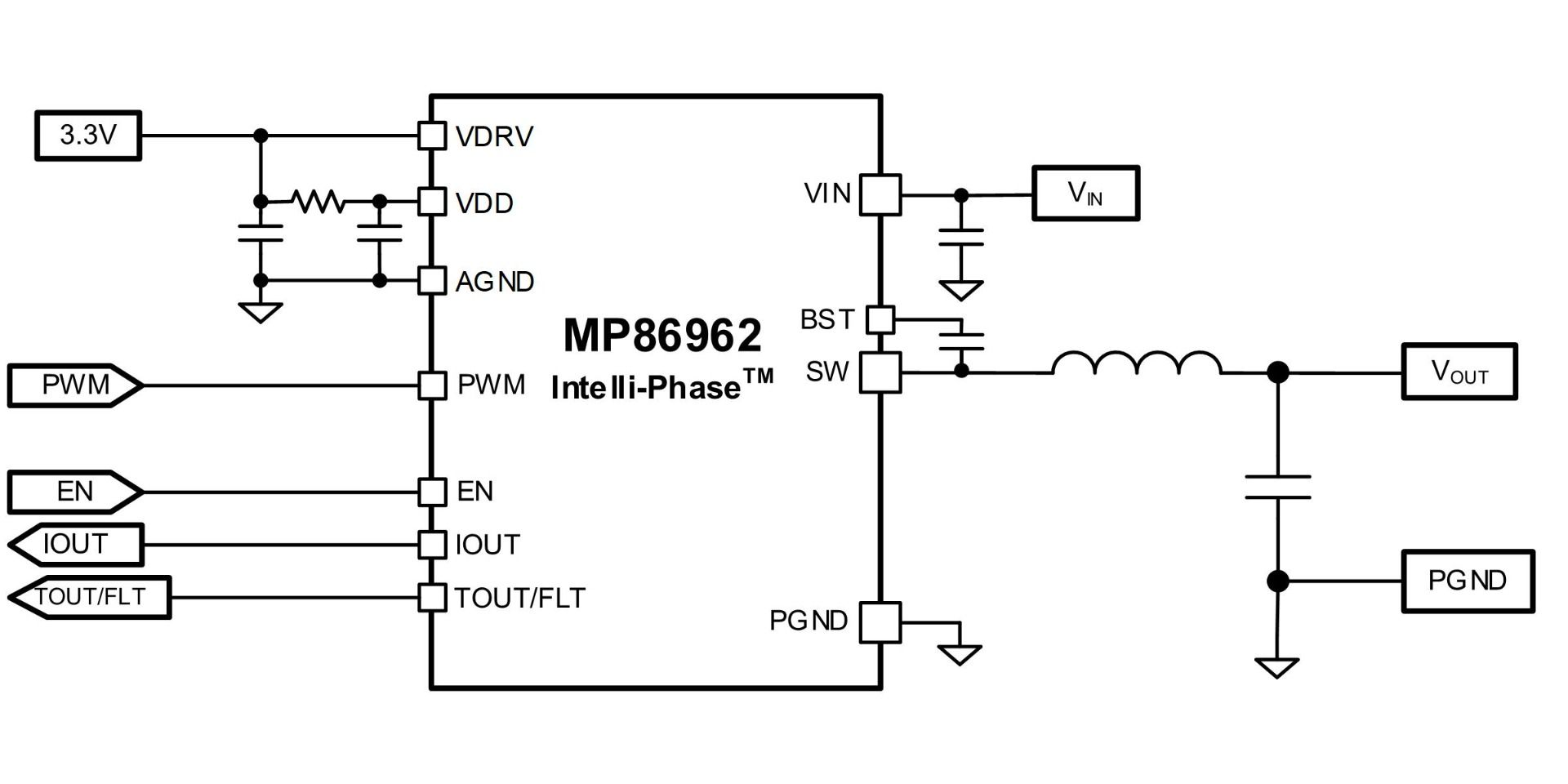

MP86962产品采用 TLGA-41 (5mm x 6mm) 封装的 80A 耐辐射 Intelli-PhaseTM DrMOS 解决方案
-
