- MP87577
MP87577
Session textval
Session Titefor popup
详情

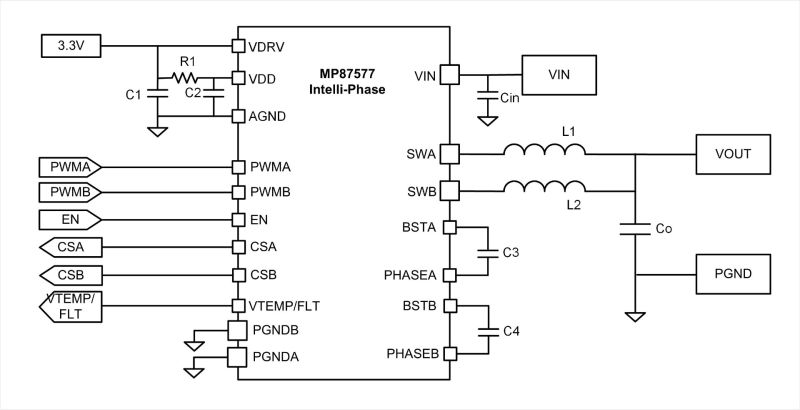

The MP87577 is a dual monolithic half-bridge Intelli-PhaseTM solution with built-in, internal power MOSFETs and gate drivers. It achieves up to 70A of continuous output current (IOUT) per output across a wide input voltage (VIN) range.
The integration of drivers and MOSFETs results in high efficiency due to optimal dead time (DT) and reduction of parasitic inductance. The device can operate from 100kHz to 3MHz.
It offers many features to simplify system design. This device works with controllers with a tri-state pulse-width modulation (PWM) signal.
The MP87577 is ideal for computing applications, where efficiency and small size are at a premium. It is available in a common-footprint LGA-33 (5.25mmx5mm) package.
-
显示更多
显示较少
产品特性和优势
- Wide 3V to 8V Operating Input Voltage (VIN) Range
- Up to 70A of Continuous Output Current (IOUT) at Each Output:
- Up to 100A for 400μs On Pulse
- Up to 120A for 10μs On Pulse
- Accu-SenseTM Current Sense (CS)
- Positive Current Limit with Hysteresis
- Junction Temperature (TJ) Sense
- Bidirectional Pulse-Width Modulation (PWM) for Fault Diagnostics
- 5V PWM Input Capability
- Fast Catastrophic Fault Response
- Available in a Common-Footprint LGA-33 (5.25mmx5mm) Package
正在供货产品型号
MP87577GMEH-Z MP87577GMEH-P MP87577GMED-Z MP87577GMED-P
以 P 和 Z 结尾的零件编号是相同的零件。P 和 Z 仅表示卷筒尺寸
P&Z的含义
